Multilayer Soft Hard Combination FPC Flexible PCB Bend Resistance Rigid-Flex Mobile Phone FPC
| Place of Origin | Guangdong,china |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL/ISO13485 |
| Model Number | CRT-FPC-028 |
| Minimum Order Quantity | 10pieces |
| Price | $8~5/pieces 10-~999 pieces |
| Packaging Details | Vacuum packaging + moisture + humidity card |
| Delivery Time | 7work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 100000/pieces/15 word days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layer | 2-24L | Product Board Tickness | 0.036 ~ 2.5mm |
|---|---|---|---|
| Auto-cutting Accuracy | 0.075mm / 6.5mm / ±0.025mm | Accuracy Of Pattern To Pattern | ±3mil ( ±0.075mm) |
| Accuracy Of Pattern To Hole | ±4mil ( ±0.1mm ) | Min Line Width/space | 0.045 /0.045 |
| Etching Tolerance | ±20%(±0.02mm) | Cover Layer Alignment Tolerance | ±6mil (±0.1 Mm) |
| Min S/M Bridge | 0.1mm | Min Space For S/M To Pad, To SMT | 0.075mm / 0. 1mm |
| Min Space For Legend To Pad/ To SMT | 0.2mm / 0.2mm | Min Size E- Tested Pad | 8 X 8mil |
Product Description
POE Rigid Flexible PCB:
1.Hot sale rigid flexible PCB, custom service.
2.Quick turn service:1-2 days lead time for sample PCB
3.One stop service: PCB printing,component sourcing,assembly service.
4.Quality assurance: Professional engineering team provides AOI,X-RAY function test.
5.Support complex HDI, flexible, rigid-flex PCB production.
Finished product:
-PCB assembly with wire & cable assembly
-PCB assembly with plastic housings
-PCB Assembly with Metal Housing
All products are 100% tested and QCed before despatch
FPC Manufacturing capablityn:
|
Application and Development of Rigid Flexible PCB:
CRT has been developing and manufacturing Rigid-Flex PCB since 2010 and has become a Rigid-Flex PCB manufacturer. At present, CRT can mature Manufacturing Rigid-Flex PCB used in automobiles, medical, industrial, and consumer electronics (headphones, mobile phones, e-cigarettes), and can also assist customers in Rigid-Flex PCB design,and CRT has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop turnkey services, including pcb manufacture, assembly, components sourcing and function testing.

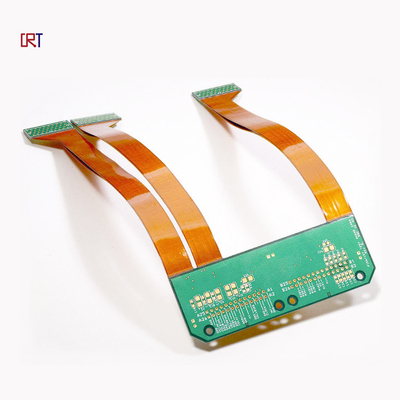

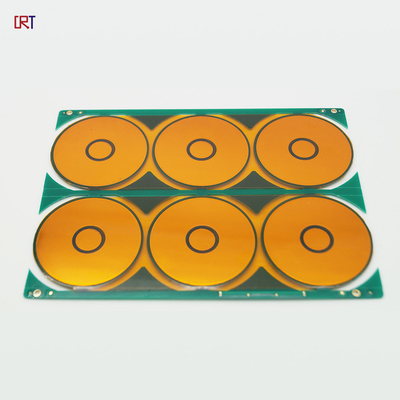

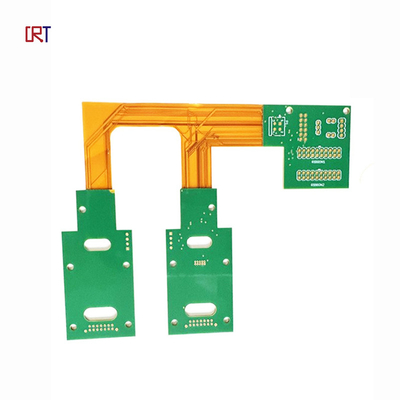

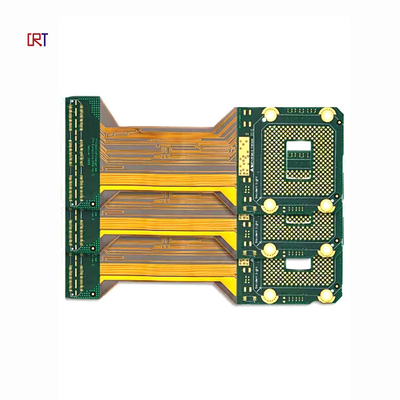

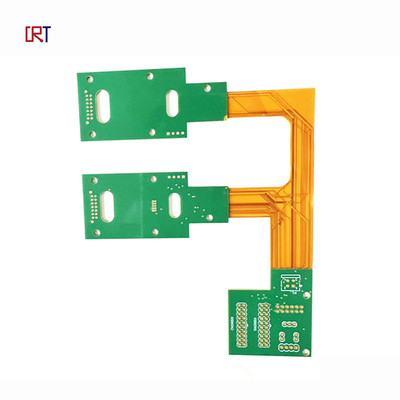

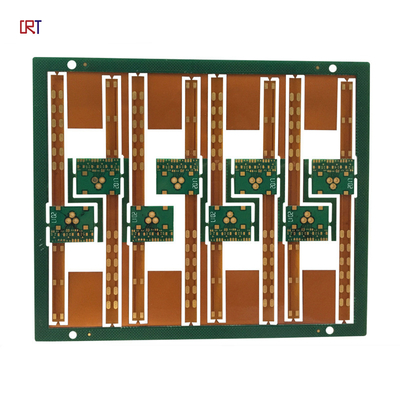

Product Image:
FAQ:
1.What service do you have?
We offer turnkey solutions that include RD, PCB manufacturing, SMT, plastic injection & metals, final assembling, testing and other value adding services.
2. What are the main products of your PCB/PCBA services?
The medical, automotive, energy, instrumentation and consumer electronics industries are the main customers for our PCB/PCBA services.
3. What is your inspection policy and how do you control quality? Flying probe test/E-test/AOI(Automatic Optical Inspection)/X-ray inspection/FAI(First Article Inspection) ...
4. Can we check the quality during production?
Yes, we are open and transparent about every production process. Welcome to visit our factory!
