2L 28L Rigid Flexible PCB Assembly Printed Circuit Board Design Service
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/ISO14001/TS16949 |
| Model Number | CRT-GR-001 |
| Minimum Order Quantity | 100 Pieces |
| Price | USD 0.5~0.8/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 21 |
| Payment Terms | T/T |
| Supply Ability | 500000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layer Count | 2~28L Anylayer | Special Tech 1 | 1.HDI Anylayer 2.Dupont Material 3.Metal Rigid-flex |
|---|---|---|---|
| Special Tech 2 | 4.Semi-flex 5.ENEPIG,Bonding | Application | Auto,Industrial,Medical,DataCom,Comsumer |
| Certificates | RoHS/ISO9001/ISO14001/UL | Assembly Service | YES |
| Material | FR4 Tg170 + PI+ PTFE | Copper Thickness | 0.13oz~3oz |
| Surface Finish | ENIG,OSP,Imm Tin,Imm Silver | Solder Mask Color | Green Black Bule White |
| Highlight | 28L Rigid Flexible PCB Assembly,28L Printed Circuit Board Design Service,28L Flexible Printed Circuit Board |
||
Product Description
2L 28L Rigid Flexible PCB Assembly Printed Circuit Board Design Service
Rigid Flex PCB Design Service OEM Rigid Flexible PCB Assembly Develop
Quick Detail:
1. Brand Name: Croll Technology
2. Product Name: Rigid Flexible PCB
3. MOQ: 1 Sample or 500 pcs
4. Certificate: ISO9001/ISO14001/TS16949
5. Service: EMS, OEM
6. PCB Assembly Process: DIP. SMT PCB Assembly
Description:
1. Copper Thickness(oz):0.33oz~3oz
2. Board Thickness(mm):0.2mm~3.0mm
3. Min. LW/LS(mm):0.05/0.05
4. Min. Hole(mm):0.1
5. Solder Mask:Green, Yellow, Blue, Black, White...
6. Surface Finish:ENIG,OSP,HASL,Imm Tin,Imm Silver...
Specification:
|
Rigid Flexible PCB
|
Special Tech
|
|
|
Place of Origin:
|
China
|
1.HDI Anylayer
2.Dupont material 3.Metal rigid-flex 4.Semi-flex 5.ENEPIG,Bonding |
|
Brand Name:
|
CRT
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
|
|
Layer Count:
|
2~24L
|
|
|
Material:
|
FR4 Tg170+PI+PTFE
|
|
|
Board Thickness(mm):
|
0.2mm~3.0mm
|
|
|
Copper Thickness(oz):
|
0.33oz~3oz
|
|
|
Size(mm):
|
5mm~500mm
|
|
|
Min. LW/LS(mm):
|
0.05/0.05
|
|
|
Min. Hole(mm):
|
0.1
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, White...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
Certificate:
|
RoHS/ISO9001/ISO14001
|
|
|
Service:
|
OEM / DFM
|
|

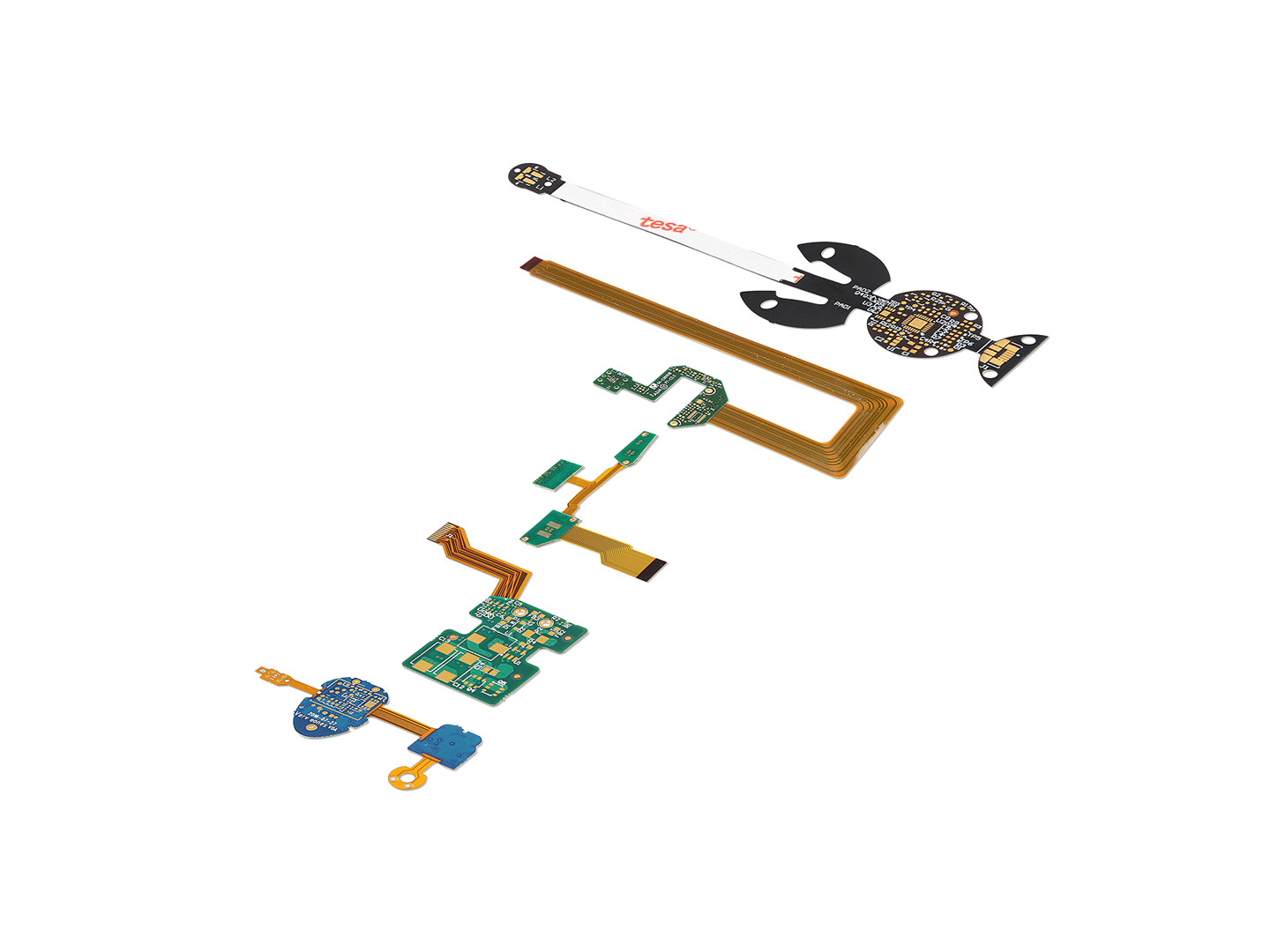

Product Image:
Company Information:
CRoll Technology Limited (CRT) is a professional supplier of total PCB solutions, providing PCB, FPC, Rigid-flex /semi-regid PCB and thick film PCB. The products range from Single-side to High-layer count PCB (up to 16), with applications of high technology -- hybrid stackup, Impedance control, High frequency (RF), Halogen-free, HDI, back-drill, heavy copper (12oz), super long size (up to 5m antenna), super think PCB (0.2mm 2L/4L FR4) Rigid-Flex/semi-rigid , etc.
We are supporting customers from QTA, low/medium volume to mass production. The production capacity is Single Sided 30,000sqm/month, DS & ML 40,000sqm/month, FPC 50,000sqm/month.
Why Choose Us:
1. The core teammembers are all sernior engineers, from top level PCB & EMS factories, with 10+ years expeirence. E.g. TTM, Elec & Eltek, Foxconn... We are very familiar with PCB, FPC, R/F and so on special technology. We have best level technocal team.
2. We will assign PMs to follow up all key customers' projects from NPI to mass production. Besides on line process quality control, 200% inspection will be adopted for the final product, to ensure every shipped PCB being in Europe class.
3. Free DFM support. Listen to customers, work closely and deeply, to smooth the design and production. Provide quick turn deviery, RD NPI, HMLV to HVMP service.
FAQ:
1.Q:Do you offer OEM PCB services?
A: Yes, our R&D team is experienced and help you make your ideas come ture.
2.Q:What is the MOQ and fastest deliver time?
A:1 pcs prototype+air express like DHL/UPS/FedEx/TNT.
3.Q:What kind of files you need to PCBA quotations?
A:PCB files (Gerber), Bom list, XY Data (pick-N-place).
4.Q:I have no drawing, how to process it?
A: Firstly let us know your detail requirements( if you have sample, please ship to us, we will copy it). Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
5.Q:Is it OK to print my logo on product?
A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
