Medical Automotive Customized Rigid Flexible PCB One Stop Service
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL |
| Model Number | CRT-Rigid-flex-007 |
| Minimum Order Quantity | 10 Pieces |
| Price | USD 1~6/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 12 |
| Payment Terms | T/T |
| Supply Ability | 1000000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Rigid-flex PCB | Material | 94HB － 94VO － 22F － CEM-1 － CEM-7－ FR-4 |
|---|---|---|---|
| Layer Count | 4L-28L | Copper Thickness | 0.33oz~4oz |
| Board Thickness | 0.2mm~3.0mm | Size(mm)： | 5mm~500mm |
| Service | One-stop Service / OEM,DFM | Surface Finishing | ENIG, HASL, OSP, Imm Gold,Plated Ni |
| Certificates | ISO9001/IATF16949/ISO14001/UL | Application Segment | Auto,Industrial,Medical,DataCom,Comsumer |
| Highlight | Customized Rigid Flexible PCB,ODM Rigid Flexible PCB,94HB Flex Printed Circuit Board |
||
Product Description
Medical Automotive Customized Rigid Flexible PCB One Stop Service
One-stop PCB&PCBA Customized rigid-flex pcb flex printed circuit board manufacture and assembly
PCB Manufacturing
18 Years Experience
Accept Stardard: IPC III, Military, Automotive, Medical, We offer you expanded PCB capabilities: PCB, Flexible,flex, HDI board, High TG PCB
Up to 48 layer prototype PCB
Manufacture PCB board up to 56 layer, Raw material: Fr4, Rogers, Arlon, Teflon, Taconic, Nelco, Isola, Ceramic, Metal core
Up to 18 layer mass production
Support PCB surface process: HASL-LF, ENIG, Plating gold, Immersion tin, Immersion silver, ENIPIG, OSP
Quality & OTD Target
◎ Quality goal for rate of complaint
≤0.1% by batch,
≤200PPM by quantity;
≤50PPM by quantity (Auto);
◎ The rate of total internal scrap: FPC≤3.0%;
◎ The rate of delivery on time:
≥95% for normal FPC,
100% for automotive FPC.
◎ Quick Turn delivery
Prototype : Fastest 48 hours to seven days
Mass Production: Fastest 5 to 14 days
Specification:
| Rigid-Flex PCB | Special Tech. | |
| Place of Origin: | China | 1.HDI Anylayer 2.Dupont material 3.Metal rigid-flex 4.Semi-flex 5.ENEPIG,Bonding |
| Brand Name: | CRT | |
| Application Segment: | Auto,Industrial,Medical,DataCom,Comsumer | |
| Layer Count: | 2~24L | |
| Material: | FR4 Tg170 + PI+ PTFE | |
| Board Thickness(mm): | 0.2mm~3.0mm | |
| Copper Thickness(oz): | 0.33oz~3oz | |
| Size(mm): | 5mm~500mm | |
| Min. LW/LS(mm): | 0.05/0.05 | |
| Min. Hole(mm): | 0.1 | |
| Solder Mask: | Green, Yellow, Blue, Black, White... | |
| Surface Finish: | ENIG,OSP,Imm Tin,Imm Silver... | |
| Certificate: | RoHS/ISO9001/ISO14001 | |
| Service: | OEM / DFM | |

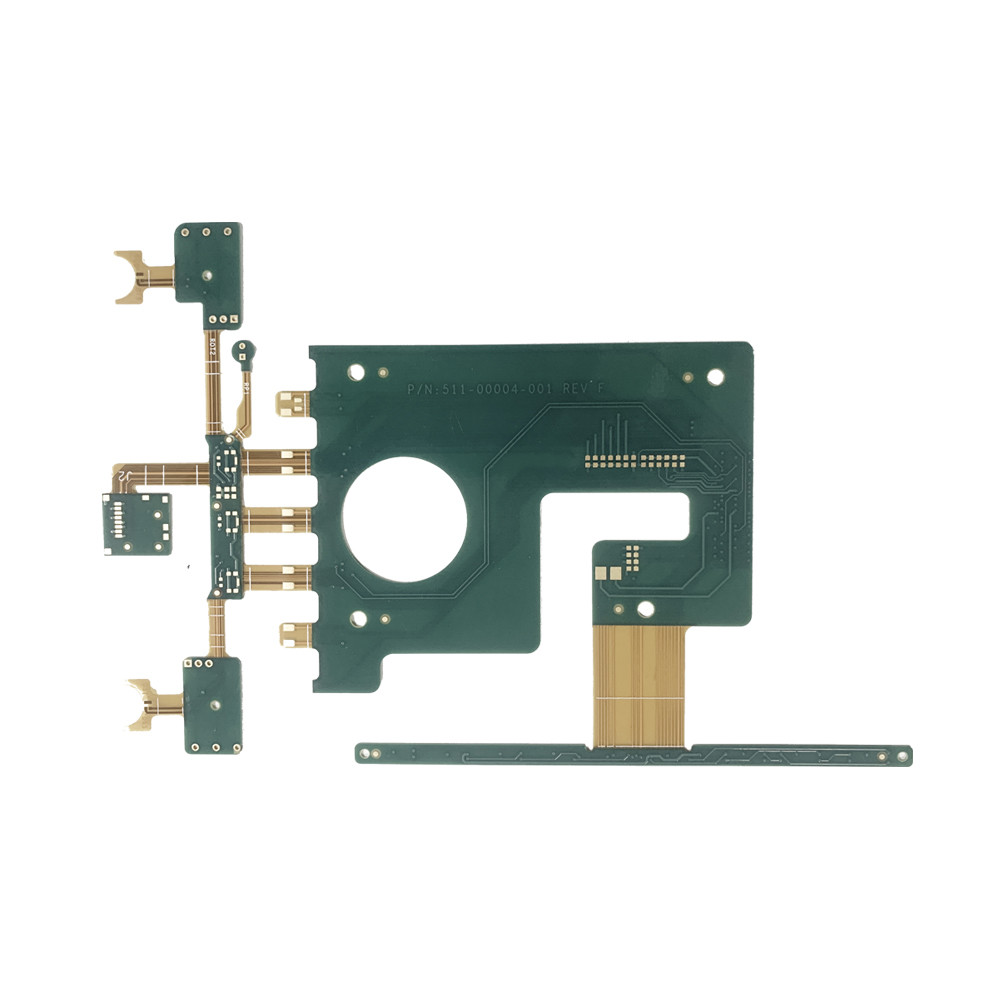

Product Image:
Material Specialization
Flex PCB, FPC, flexible PCB, flexible circuit board, multilayer FPC, multi-function FPC, NFC antenna FPC, SIM card FPC, rigid-flex board, LCD display FPC, high speed transmission custom FPC, USB FPC, polyimide FPC, double sided FPC, FPC for mobility, flexible FPC strips, FR4, metal core PCB, FPC, Teflon, CEM, PTFE, Rogers, taconic and F4B.
Rigid Flexible PCB technics capacity
As electronic products become more sophisticated and compact, there is more demand for Rigid-Flex PCB. iPCB has been developing and manufacturing Rigid-Flex PCB since 2010 and has become a Rigid-Flex PCB manufacturer. At present, CRT can mature Manufacturing Rigid-Flex PCB used in automobiles, medical, industrial, and consumer electronics (headphones, mobile phones, e-cigarettes), and can also assist customers in Rigid-Flex PCB design.
HDI PCB technics capacity
When HDI PCB design engineers need higher density components, HDI PCB is their best choice. HDI PCB manufacturer provides lower HDI PCB cost. iPCB provides professional HDI PCB design guide.
High-frequency PCB technical capacity
High-frequency PCB is a PCB applied to products that require high-frequency signals. In a high-frequency signal environment, ordinary FR-4 epoxy resin materials will cause product failure due to high-frequency signal distortion. Therefore, high-frequency PCB is the material of PCB There are special requirements, such as more stable dielectric constant, lower loss, etc. Commonly used high-frequency PCB material brands include Rogers, Arlon, Taconic, Panasonic, Doosan, Shengyi, Wangling, etc.
Our Advantages
1. MOQ: 1 Square,assist our partners from prototype.
2. Reliable components sourcing channels (stratagic cooperation with Arrow and Avnet, strict supplier audit system).
3. Competitive price to assist you occupy market.
4. Sign NDA with partners to keep our partner's Technical confidencial.
5. Professional team.(including fluently English communication).
6. Total knowledge of exporting process (17 year's indepandent exporting experience).
7. Holistic and flexible customer service
FAQ
1.What's the order process?
1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time?
Prototypes usually takes about 5-10days depending on product type.Small&Middle volume usually takes about 20 days.
5.How would I get a price list for a wholesaler ?
Please E-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
