1L 16L FPC Rigid Flexible PCB For Electronic Products LED Lights
| Place of Origin | Guangdong,china |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL/ISO13485 |
| Model Number | CRT-FPC-031 |
| Minimum Order Quantity | 10pieces |
| Price | $8~5/pieces 10-~999 pieces |
| Packaging Details | Vacuum packaging + moisture + humidity card |
| Delivery Time | 5 |
| Payment Terms | T/T, L/C |
| Supply Ability | 100000/pieces/15 word days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layer | 1-16L | Place Of Origin | Guangdong, China |
|---|---|---|---|
| Copper Thickness | 1/4 ,1/3, 2/3 ,1/2 ,1 Oz | Board Thickness | 0.05mm - 0.25mm |
| Min. Hole Size | 0.05mm | Min. Line Width | 0.05mm |
| Min. Line Spacing | 0.05mm | Twisting And Bending | ≤ 0.75%, Min: 0.5% |
| Range Of TG | 130 - 215 ℃ | ||
| Highlight | FPC Rigid Flexible PCB,16L Rigid Flexible PCB,FPC Rigid Flex Pcb Assembly |
||
Product Description
1-16L FPC Rigid Flexible PCB For Electronic Products LED Lights
For Electronic Products Electronic Process LED Lights Rigid And Flexible FPC
POE Rigid Flexible PCB:
1.Hot sale rigid flexible PCB, custom service.
2.Quick turn service:1-2 days lead time for sample PCB
3.One stop service: PCB printing,component sourcing,assembly service.
4.Quality assurance: Professional engineering team provides AOI,X-RAY function test.
5.Support complex HDI, flexible, rigid-flex PCB production.
FPC Manufacturing capablity:
| content | Regular capacity | Special |
| Layer | 1-6L | Above 8L |
| Max.Array Size | 500*600mm | 250*1500mm |
| Min board size | 1*1mm | |
| Min board thickness | 0.075mm | 0.065mm |
| Max board thickness | 0.23mm | 0.4mm |
| (0.075mm≤T Tolerance±0.03mm | V | 575 |
| (0.035mm≤T Tolerance±0.05mm | ℃ | 130 |
| (0.6mm≤T Tolerance±0.1mm | %(50-260℃) | 0.5 |
| Max Drill bit Diameter | 6.5mm | |
| Min Base Copper | 1/3 OZ | 1/4 OZ |
| Tolerance of holes diameter(PTH) | ±0.05mm | |
| Gold plating, Ni thickness(Gold finger or other parts) | Gold plating, Ni thickness(Gold finger or other parts) | Min 30 u inch Max 280 u inch |
| ENIG Ni/Au thickness(Gold finger or other parts) | Ni:30-150u inch Au:±1u inch | 4 u inch |
Application and Development of Rigid Flexible PCB:
CRT has been developing and manufacturing Rigid-Flex PCB since 2010 and has become a Rigid-Flex PCB manufacturer. At present, CRT can mature Manufacturing Rigid-Flex PCB used in automobiles, medical, industrial, and consumer electronics (headphones, mobile phones, e-cigarettes), and can also assist customers in Rigid-Flex PCB design,and CRT has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop turnkey services, including pcb manufacture, assembly, components sourcing and function testing.

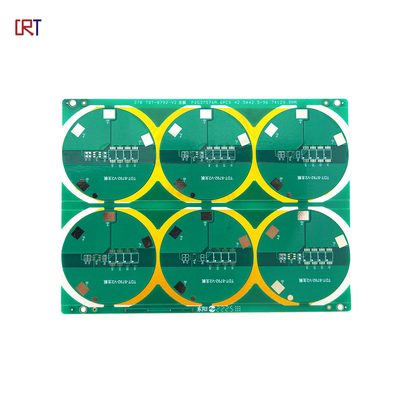

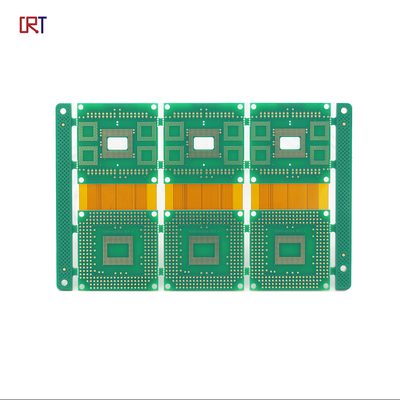

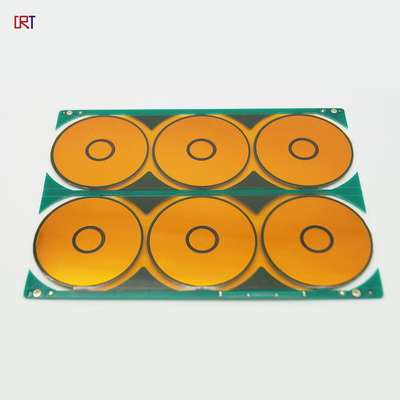

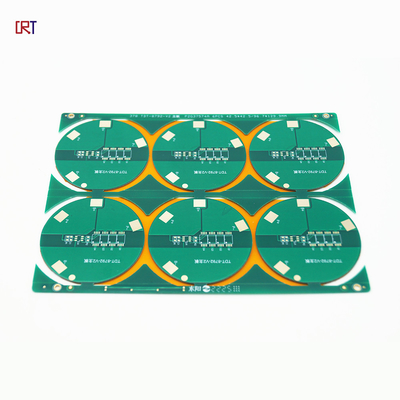

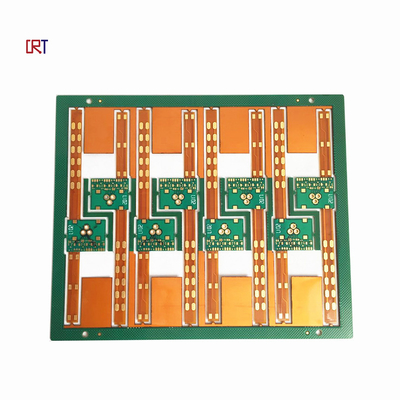

Rigid Flex Pcb Assembly Image:
FAQ:
1.What service do you have?
We offer turnkey solutions that include RD, PCB manufacturing, SMT, plastic injection & metals, final assembling, testing and other value adding services.
2. What are the main products of your PCB/PCBA services?
The medical, automotive, energy, instrumentation and consumer electronics industries are the main customers for our PCB/PCBA services.
3. What is your inspection policy and how do you control quality? Flying probe test/E-test/AOI(Automatic Optical Inspection)/X-ray inspection/FAI(First Article Inspection) ...
4. Can we check the quality during production?
Yes, we are open and transparent about every production process. Welcome to visit our factory!
