0.05mm 0.25mm Rigid Flexible Circuit Board Fabrics Textiles Test Equipment
| Place of Origin | Guangdong,china |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL/ISO13485 |
| Model Number | CRT-FPC-031 |
| Minimum Order Quantity | 10pieces |
| Price | $5-15/pieces 10-999 pieces |
| Packaging Details | Vacuum packaging + moisture + humidity card |
| Delivery Time | 5 |
| Payment Terms | T/T, L/C |
| Supply Ability | 100000/pieces/15 word days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layer | 1-16L | Place Of Origin | Guangdong, China |
|---|---|---|---|
| Copper Thickness | 1/4 ,1/3, 2/3 ,1/2 ,1 Oz | Board Thickness | 0.05mm - 0.25mm |
| Min. Hole Size | 0.05mm | Min. Line Width | 0.05mm |
| Min. Line Spacing | 0.05mm | Twisting And Bending | ≤ 0.75%, Min: 0.5% |
| Range Of TG | 130 - 215 ℃ | ||
| Highlight | 0.25mm Rigid Flexible Circuit Board,0.05mm Rigid Flexible Circuit Board,0.25mm Rigid Flex Printed Circuit Boards |
||
Product Description
0.05mm 0.25mm Rigid Flexible Circuit Board Fabrics Textiles Test Equipment
Fabrics, Textiles, Test Equipment For Rigid-Flexible And Flexible Printed Circuits (FPC)
One stop OEM service:
If required, we can source, organise and manage all aspects of PCB design to ensure your product meets all required standards and is fully optimised for easy and cost-effective manufacture.
A well designed PCB means:
- A reduction in production problems
- Improved quality control
- Reduced costs
- Reduced manufacturing times
We work to provide our customers with small and large quantities of competitively priced printed circuit boards.
FPC Manufacturing capablity:
| Copper thickness of lamination | 1/3 ~ 1oz |
| Product board tickness | 0.036 ~ 2.5mm |
| Auto-cutting accuracy | 0.075mm / 6.5mm / ±0.025mm |
| Min percent for CNC slot length and width | 2:01:00 |
| maximum aspect Ratio (thickness/hole diameter) | 8:01 |
| Homogeneity of Plating Cn | ≥90% |
| Accuracy of pattern to pattern | ±3mil ( ±0.075mm) |
| Accuracy of pattern to hole | ±4mil ( ±0.1mm ) |
| Min line width/space | 0.045 /0.045 |
| Etching tolerance | ±20%(±0.02mm) |
| Cover layer alignment tolerance | ±6mil (±0.1 mm) |
| Excessive adhesive tolerance for pressing C/L | 0.1mm |
| Alignment tolerance for thermosetting S/M and UV S/M | ±0.3mm |
| Min S/M bridge | 0.1mm |
| Min space for S/M to pad, to SMT | 0.075mm / 0. 1mm |
| Min space for legend to pad/ to SMT | 0.2mm / 0.2mm |
| Surface treatment thickness for Ni/Au/Sn/OSP | 1~6um /0.05~0.76um /4~20um/ 1um |
| Min size E- tested pad | 8 X 8mil |
| Min space between tested pads | 8mil |
| Min dimention tolerance of outline (outside edge to circuit) | ±0.1mm |
| Min dimention tolerance of outline | ±0.1mm |
| Min R corner radius of outline (Inner filleted corner) | 0.2mm |
| Min space golden finger to outline | 0.075mm |
Application and Development of Rigid Flexible PCB:
CRT has been developing and manufacturing Rigid-Flex PCB since 2010 and has become a Rigid-Flex PCB manufacturer. At present, CRT can mature Manufacturing Rigid-Flex PCB used in automobiles, medical, industrial, and consumer electronics (headphones, mobile phones, e-cigarettes), and can also assist customers in Rigid-Flex PCB design,and CRT has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop turnkey services, including pcb manufacture, assembly, components sourcing and function testing.

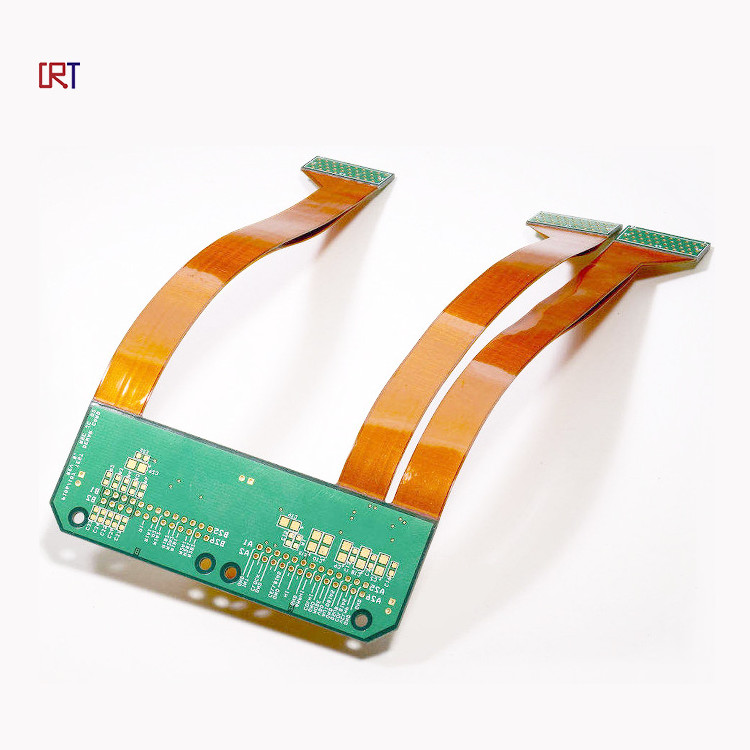

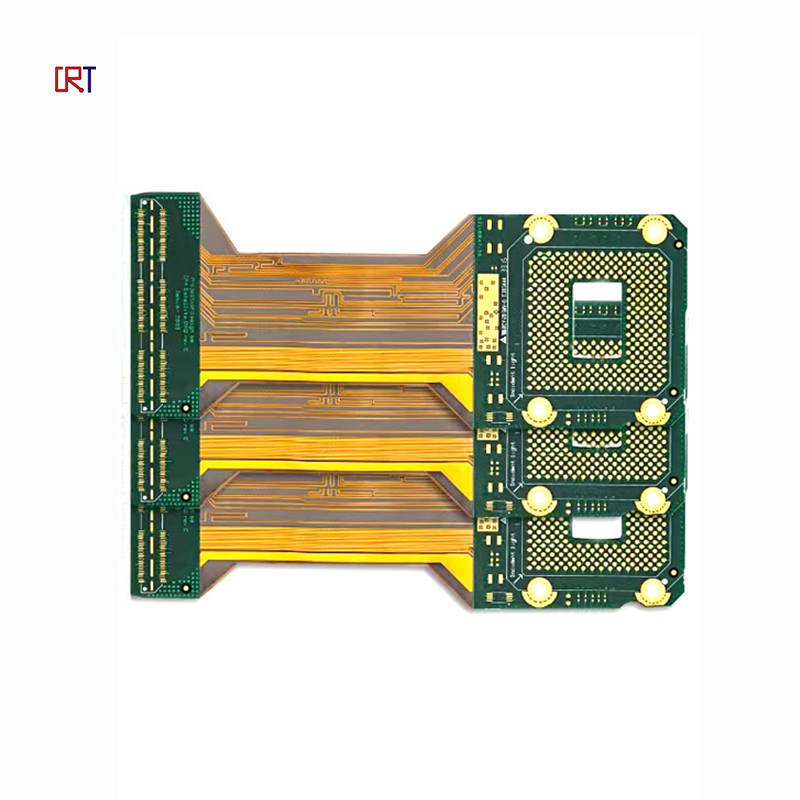

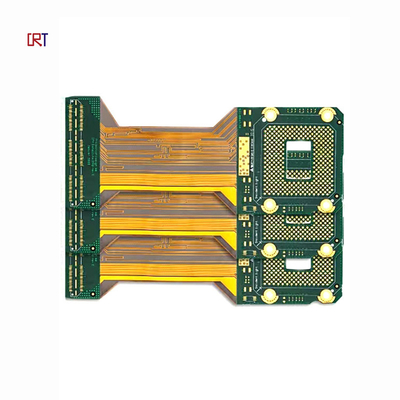

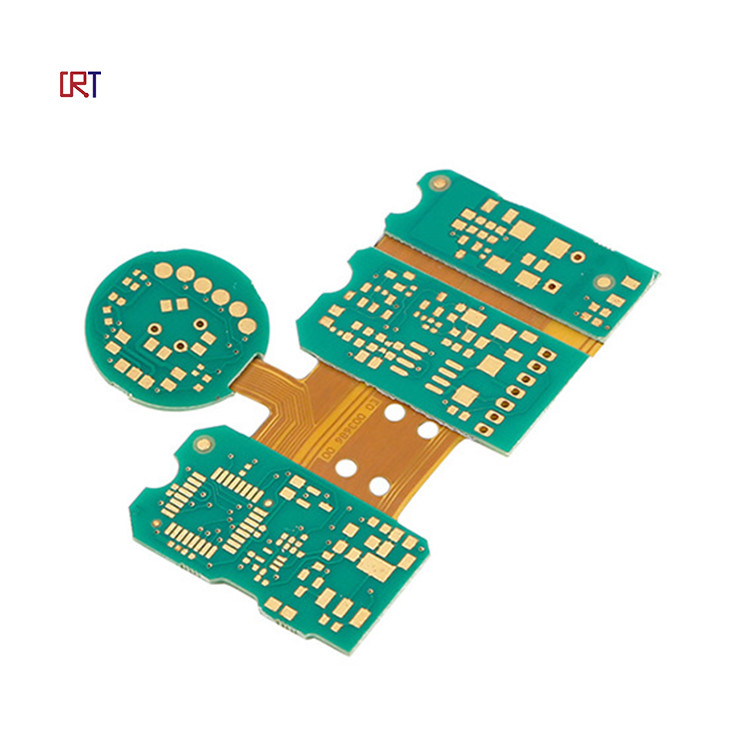

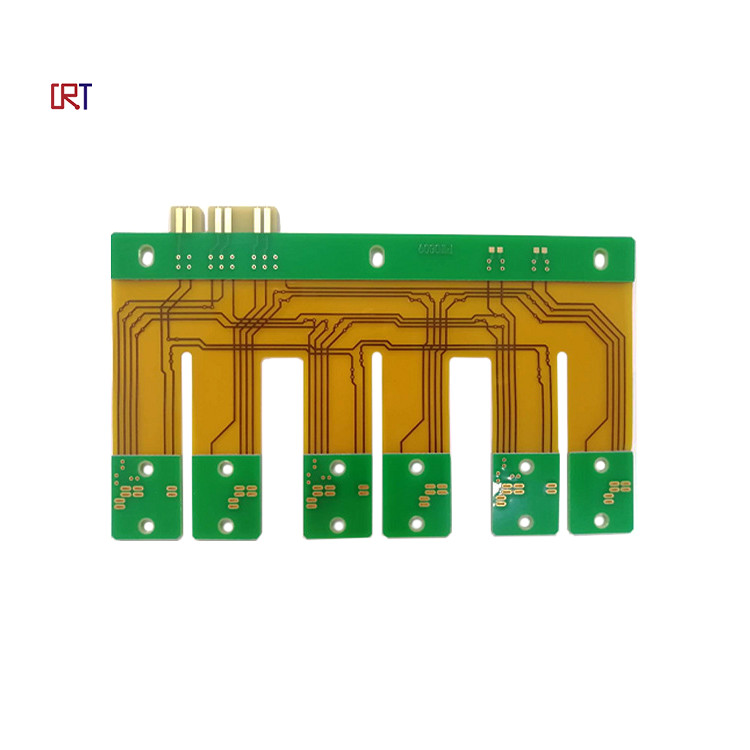

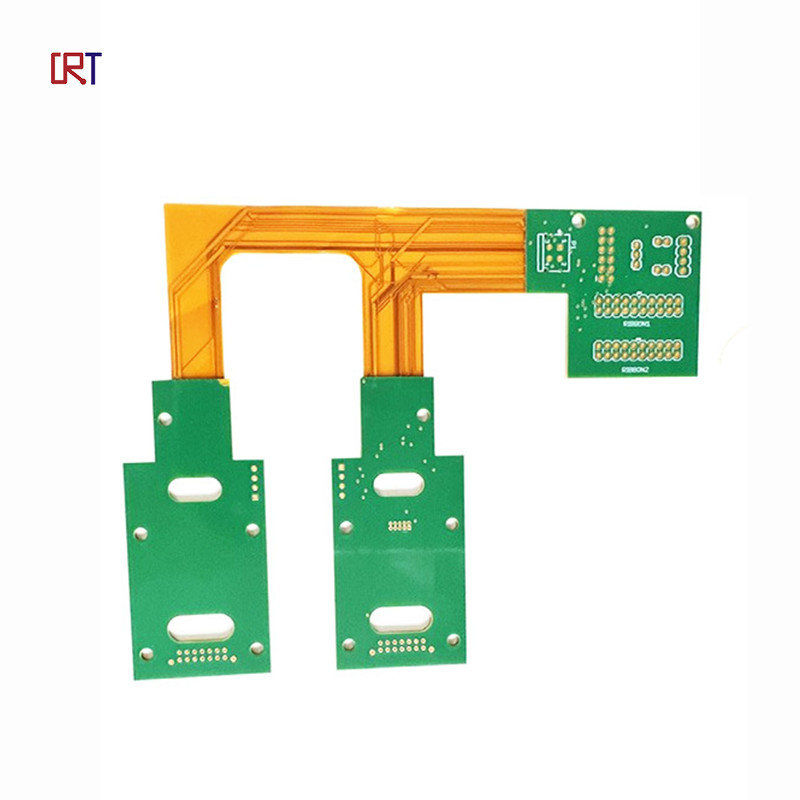

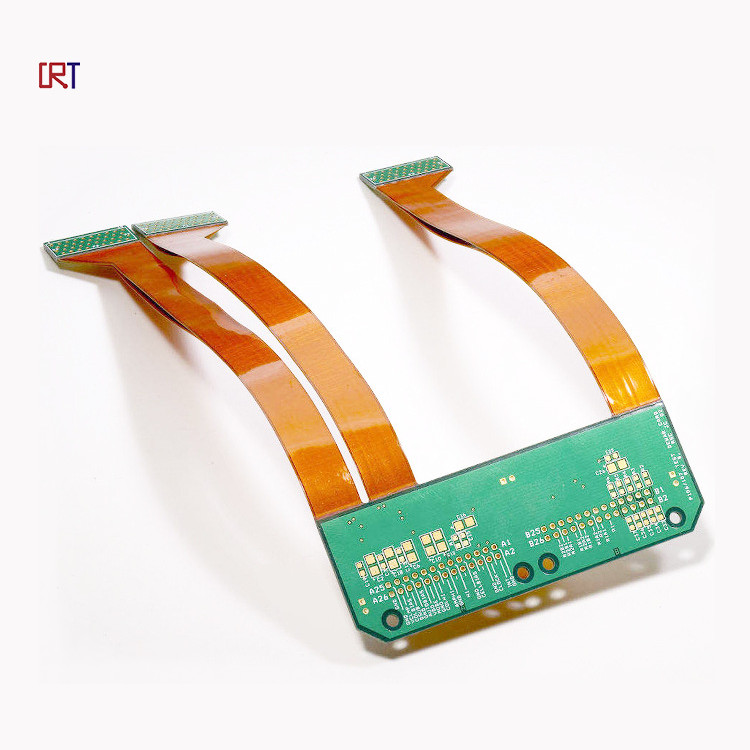

Product Image:
FAQ:
1.What service do you have?
We offer turnkey solutions that include RD, PCB manufacturing, SMT, plastic injection & metals, final assembling, testing and other value adding services.
2. What are the main products of your PCB/PCBA services?
The medical, automotive, energy, instrumentation and consumer electronics industries are the main customers for our PCB/PCBA services.
3. What kind of service do you offer?
We mainly focus on PCB+Assembly+Components sourcing service. Additionally, we can also provide programming, testing, cables, enclosure assembly service.
We mainly focus on PCB+Assembly+Components sourcing service. Additionally, we can also provide programming, testing, cables, enclosure assembly service.
4. What file formats do you accept for PCB and assembly?
Gerber, CAM Auto CAD DXF, DWG formats.
