OEM 2 Layer Rigid Flex PCB Design Service Green Solder Mask
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/ISO14001/TS16949 |
| Model Number | CRT-GR-001 |
| Minimum Order Quantity | 100 Pieces |
| Price | USD 0.5~0.8/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 21 |
| Payment Terms | T/T |
| Supply Ability | 500000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layer Count | 2~28L Anylayer | Special Tech 2 | 4.Semi-flex 5.ENEPIG,Bonding |
|---|---|---|---|
| Application | Auto,Industrial,Medical,DataCom,Comsumer | Assembly Service | YES |
| Material | FR4 Tg170 + PI+ PTFE | Copper Thickness | 0.13oz~3oz |
| Surface Finish | ENIG,OSP,Imm Tin,Imm Silver | Solder Mask Color | Green |
| Name | Rigid Flex PCB | ||
| Highlight | 2 Layer Rigid Flex PCB,OEM Rigid Flexible PCB,Green Solder Mask Rigid Flexible PCB |
||
Product Description
OEM 2 Layer Rigid Flex PCB Design Service Green Solder Mask
Description:
1. Copper Thickness(oz):0.33oz~3oz
2. Board Thickness(mm):0.2mm~3.0mm
3. Min. LW/LS(mm):0.05/0.05
4. Min. Hole(mm):0.1
5. Solder Mask:Green, Yellow, Blue, Black, White...
6. Surface Finish:ENIG,OSP,HASL,Imm Tin,Imm Silver...
Specification:
|
Rigid Flexible PCB
|
Special Tech
|
|
|
Place of Origin:
|
China
|
1.HDI Anylayer
2.Dupont material 3.Metal rigid-flex 4.Semi-flex 5.ENEPIG,Bonding |
|
Brand Name:
|
CRT
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
|
|
Layer Count:
|
2~24L
|
|
|
Material:
|
FR4 Tg170+PI+PTFE
|
|
|
Board Thickness(mm):
|
0.2mm~3.0mm
|
|
|
Copper Thickness(oz):
|
0.33oz~3oz
|
|
|
Size(mm):
|
5mm~500mm
|
|
|
Min. LW/LS(mm):
|
0.05/0.05
|
|
|
Min. Hole(mm):
|
0.1
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, White...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
Certificate:
|
RoHS/ISO9001/ISO14001
|
|
|
Service:
|
OEM / DFM
|
|

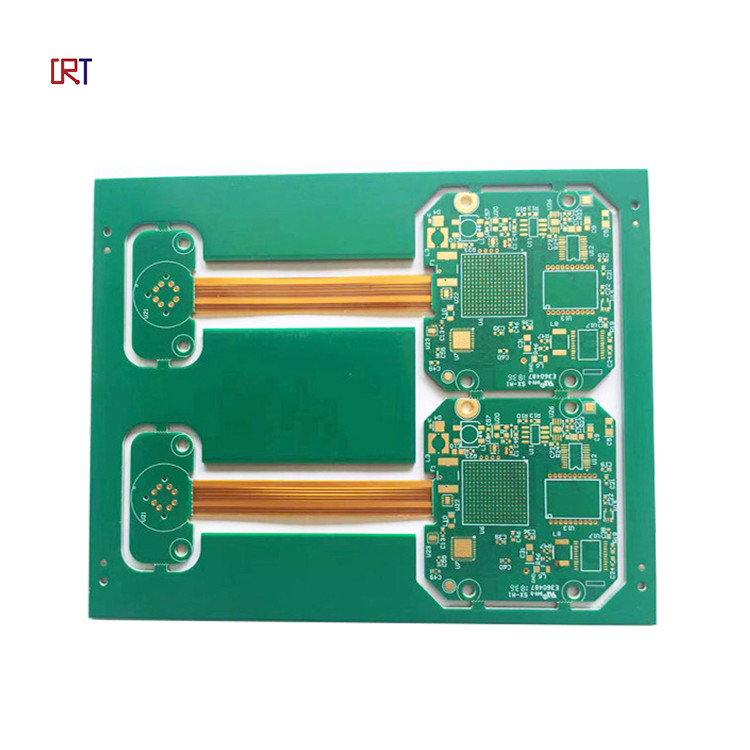

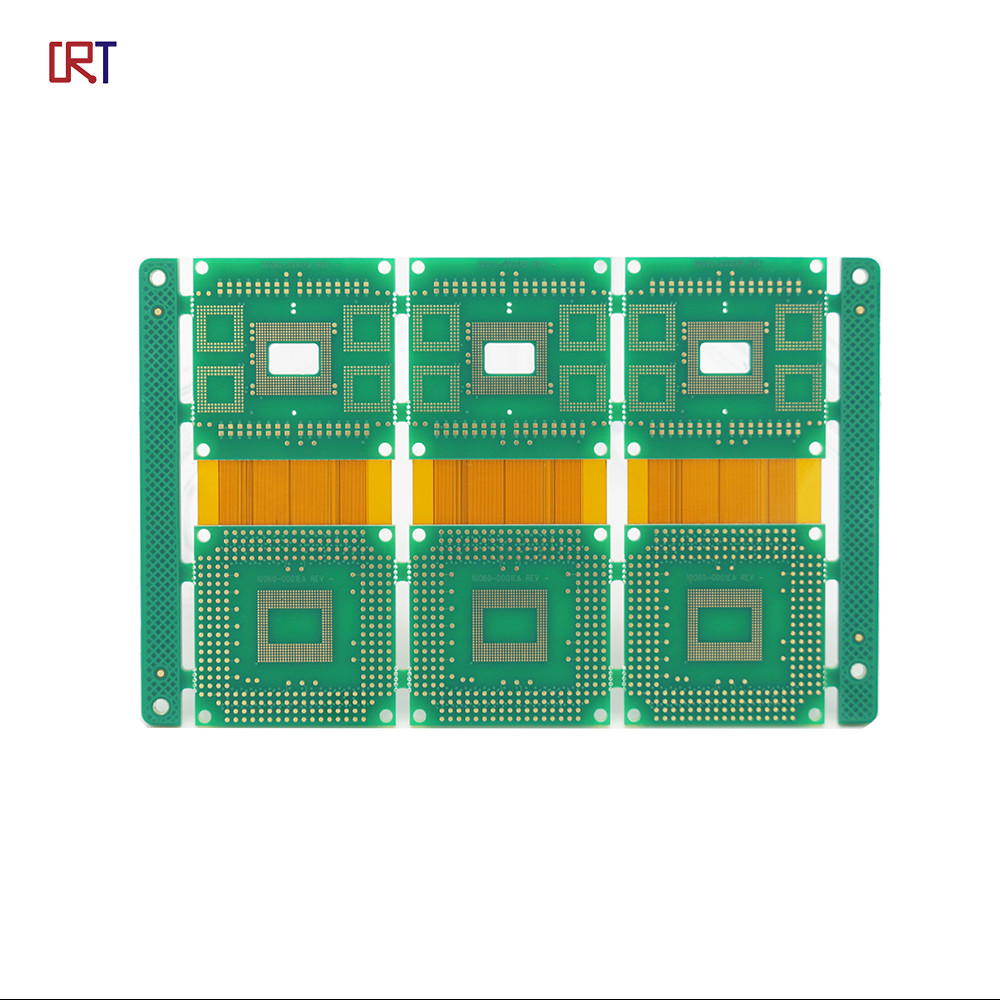

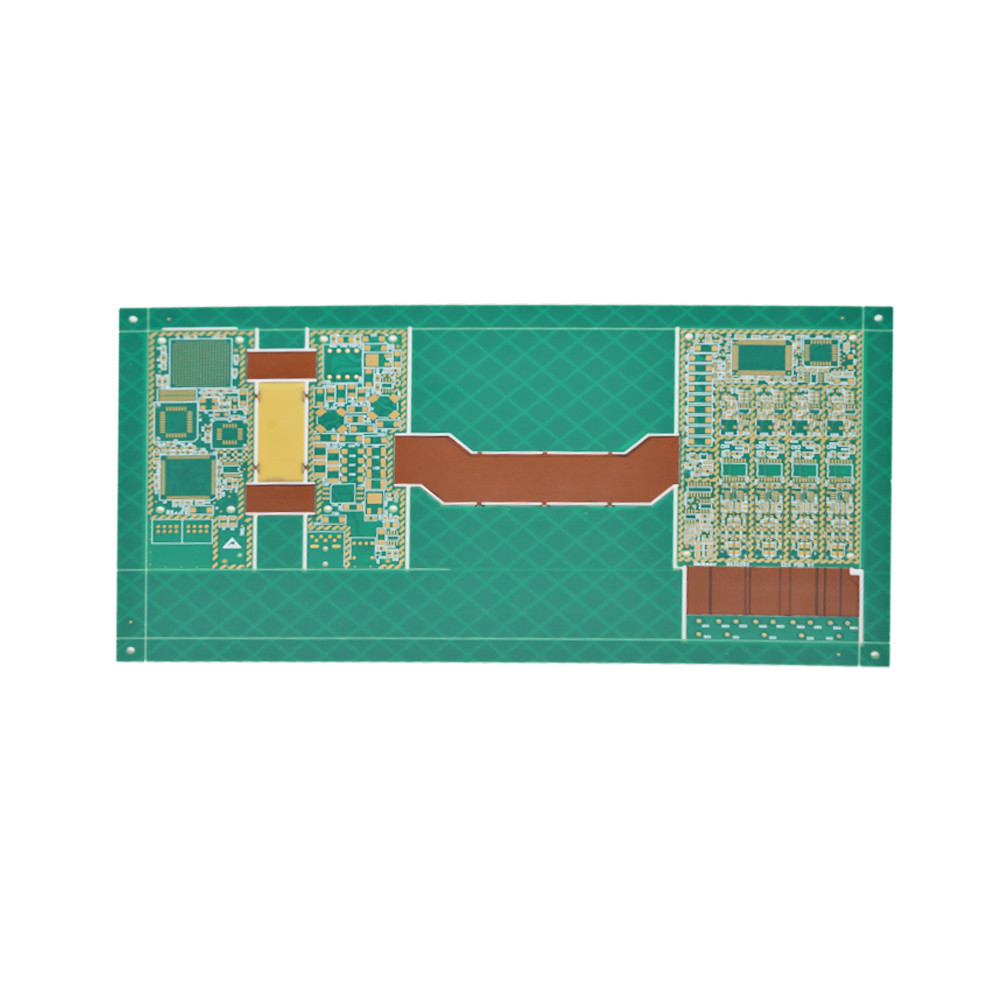

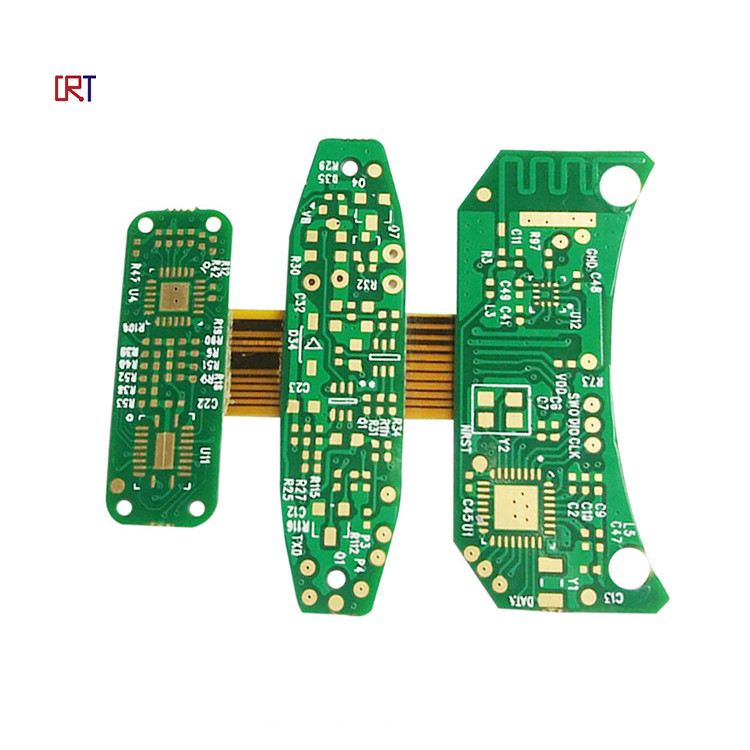

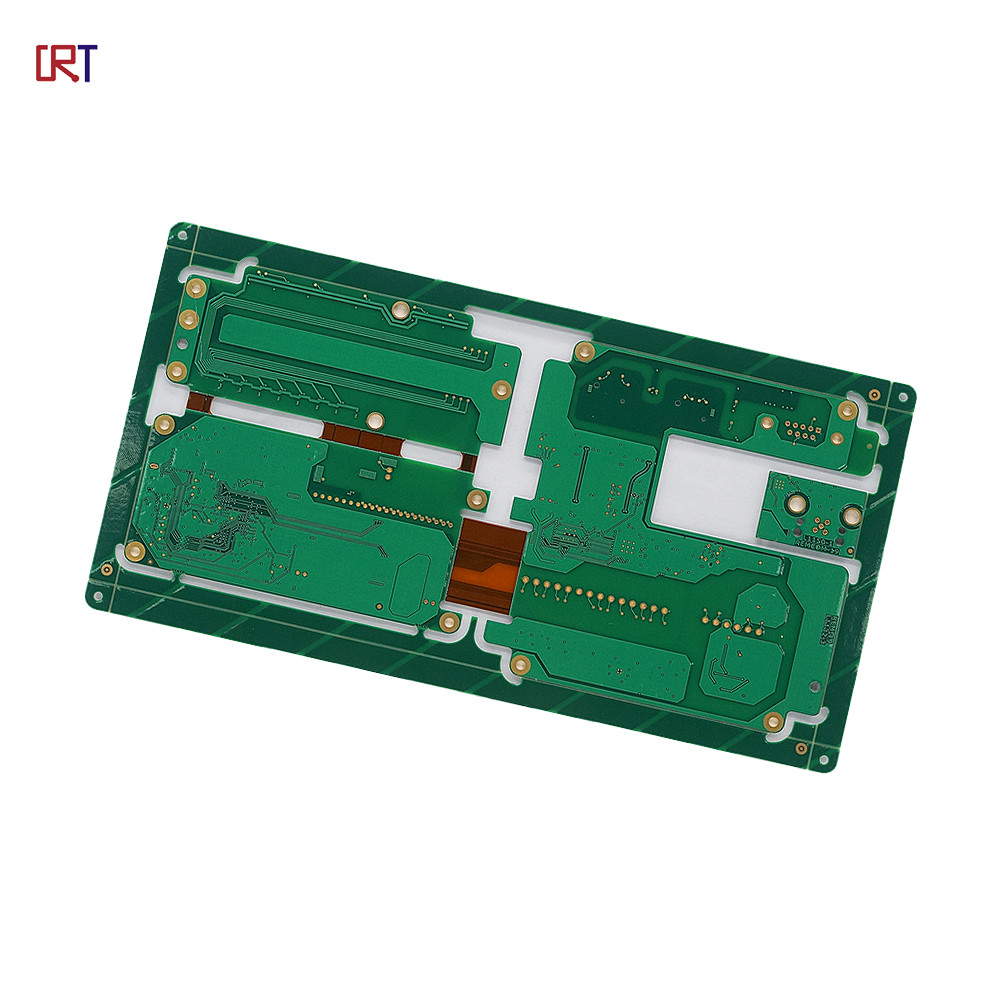

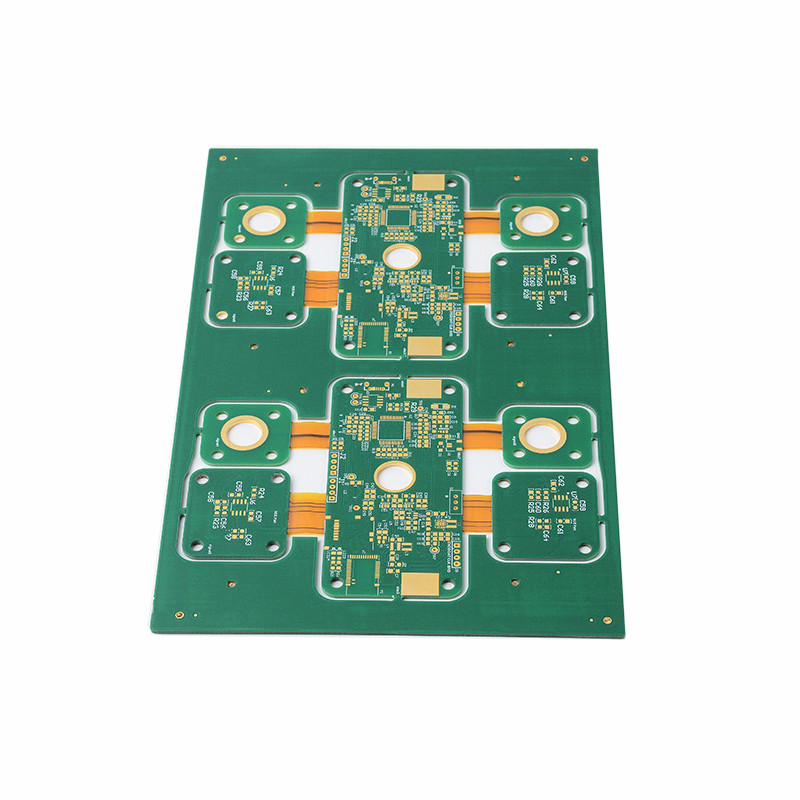

Product Image:
Company Information:
CRoll Technology Limited (CRT) is a professional supplier of total PCB solutions, providing PCB, FPC, Rigid-flex /semi-regid PCB and thick film PCB. The products range from Single-side to High-layer count PCB (up to 16), with applications of high technology -- hybrid stackup, Impedance control, High frequency (RF), Halogen-free, HDI, back-drill, heavy copper (12oz), super long size (up to 5m antenna), super think PCB (0.2mm 2L/4L FR4) Rigid-Flex/semi-rigid , etc.
We are supporting customers from QTA, low/medium volume to mass production. The production capacity is Single Sided 30,000sqm/month, DS & ML 40,000sqm/month, FPC 50,000sqm/month.
FAQ:
1.Q:Do you offer OEM PCB services?
A: Yes, our R&D team is experienced and help you make your ideas come ture.
2.Q:What is the MOQ and fastest deliver time?
A:1 pcs prototype+air express like DHL/UPS/FedEx/TNT.
3.Q:What kind of files you need to PCBA quotations?
A:PCB files (Gerber), Bom list, XY Data (pick-N-place).
4.Q:I have no drawing, how to process it?
A: Firstly let us know your detail requirements( if you have sample, please ship to us, we will copy it). Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
5.Q:Is it OK to print my logo on product?
A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
