94v0 Rigid Flexible Pcb Rohs Hdi Oem 1 To 32 Layer
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL |
| Model Number | CRT-Rigid-flex-001 |
| Minimum Order Quantity | 10 Pieces |
| Price | USD 1~6/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 12 |
| Payment Terms | T/T |
| Supply Ability | 1000000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Rigid-flex PCB | Material | FR4,Rogers,Polyimide PI,Polyester |
|---|---|---|---|
| Layer Count | 2L-26L | Copper Thickness | 0.33oz~4oz |
| Board Thickness | 0.22mm~3.2mm | Size(mm)： | 3mm~500mm |
| Service | OEM & ODM | Surface Finishing | ENIG, HASL, OSP, Imm Gold,Plated Ni |
| Certificates | ISO9001/IATF16949/ISO14001/UL | Application Segment | Auto,Industrial,Medical,DataCom,Comsumer |
| Highlight | 94v0 rigid flexible pcb,hdi rigid flexible pcb,32 layer flexible pcb board |
||
Product Description
Our service items
- High-Speed PCB Design / PCB Layout
- High-Speed PCB SI / PI / EMC Analysis
- Fast 1-24L PCB Prototype,samll-medium volume Fabrication
- Professional HDI PCB Production
- Rigid-Flex Board Manufacture
- SMT Assembly / PCBA Assembly
- PCB Parts Sourcing
Quality & OTD Target
◎ Quality goal for rate of complaint
≤0.1% by batch,
≤200PPM by quantity;
≤50PPM by quantity (Auto);
◎ The rate of total internal scrap: FPC≤3.0%;
◎ The rate of delivery on time:
≥95% for normal FPC,
100% for automotive FPC.
◎ Quick Turn delivery
Prototype : Fastest 48 hours to seven days
Mass Production: Fastest 5 to 14 days
Specification:
| Rigid-Flex PCB | Special Tech. | |
| Place of Origin: | China | 1.HDI Anylayer 2.Dupont material 3.Metal rigid-flex 4.Semi-flex 5.ENEPIG,Bonding |
| Brand Name: | CRT | |
| Application Segment: | Auto,Industrial,Medical,DataCom,Comsumer | |
| Layer Count: | 2~24L | |
| Material: | FR4 Tg170 + PI+ PTFE | |
| Board Thickness(mm): | 0.2mm~3.0mm | |
| Copper Thickness(oz): | 0.33oz~3oz | |
| Size(mm): | 5mm~500mm | |
| Min. LW/LS(mm): | 0.05/0.05 | |
| Min. Hole(mm): | 0.1 | |
| Solder Mask: | Green, Yellow, Blue, Black, White... | |
| Surface Finish: | ENIG,OSP,Imm Tin,Imm Silver... | |
| Certificate: | RoHS/ISO9001/ISO14001 | |
| Service: | OEM / DFM | |
Application and Development of Rigid Flexible PCB
As electronic products become more sophisticated and compact, there is more demand for Rigid-Flex PCB. CRT has been developing and manufacturing Rigid-Flex PCB since 2010 and has become a Rigid-Flex PCB manufacturer. At present, CRT can mature Manufacturing Rigid-Flex PCB used in automobiles, medical, industrial, and consumer electronics (headphones, mobile phones, e-cigarettes), and can also assist customers in Rigid-Flex PCB design.

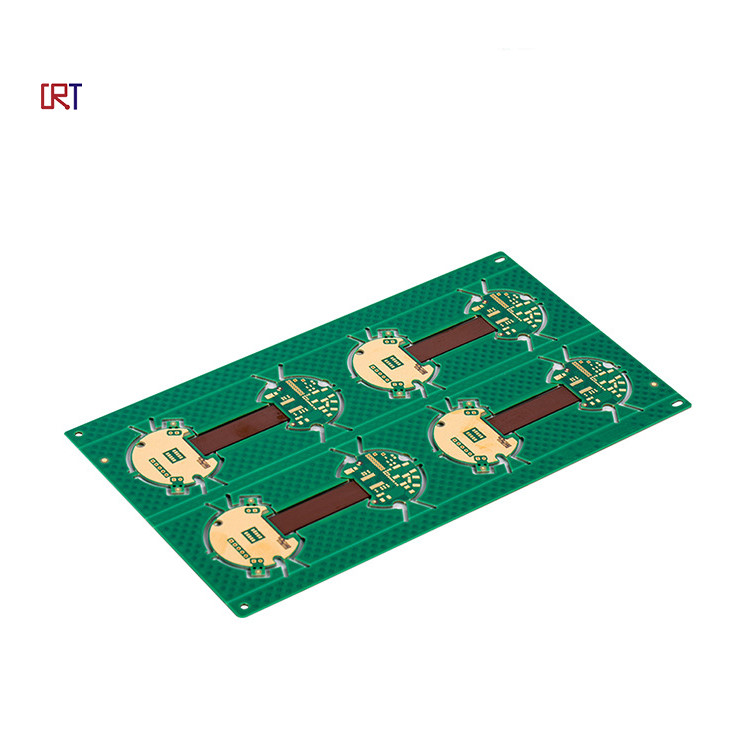

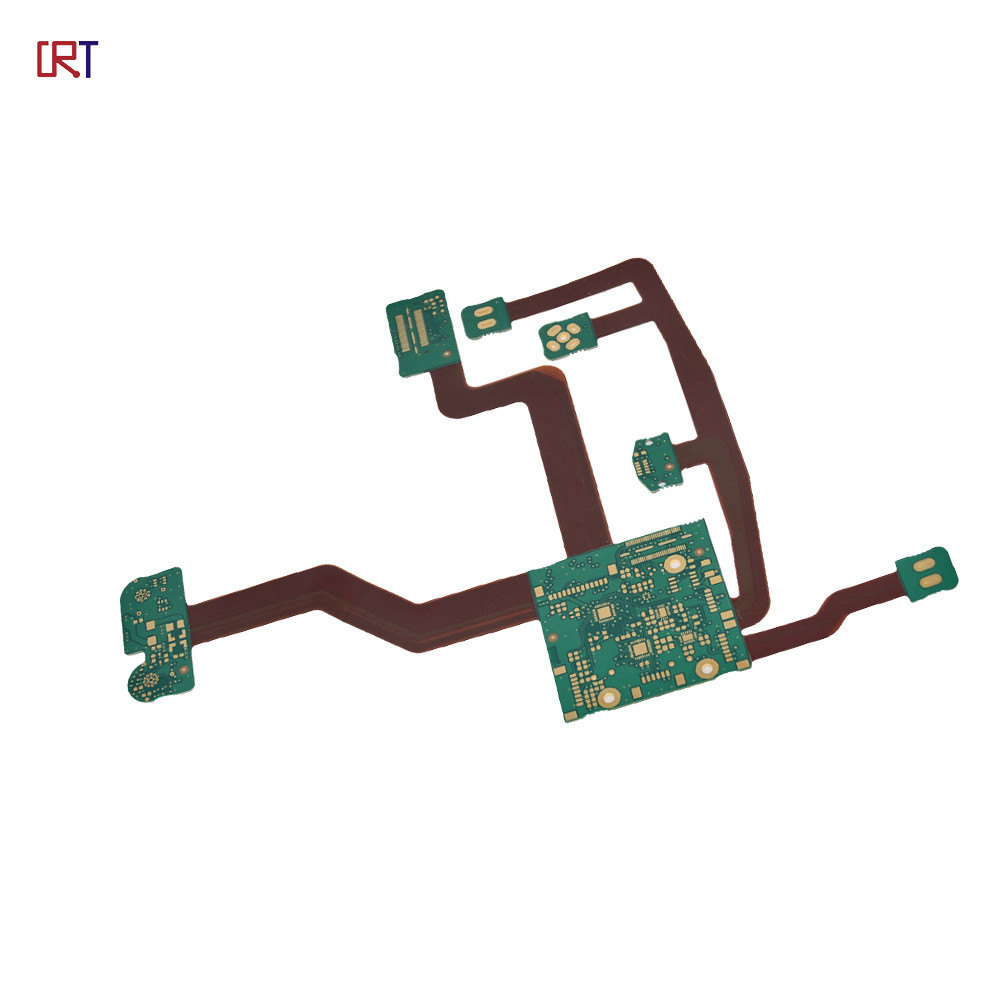

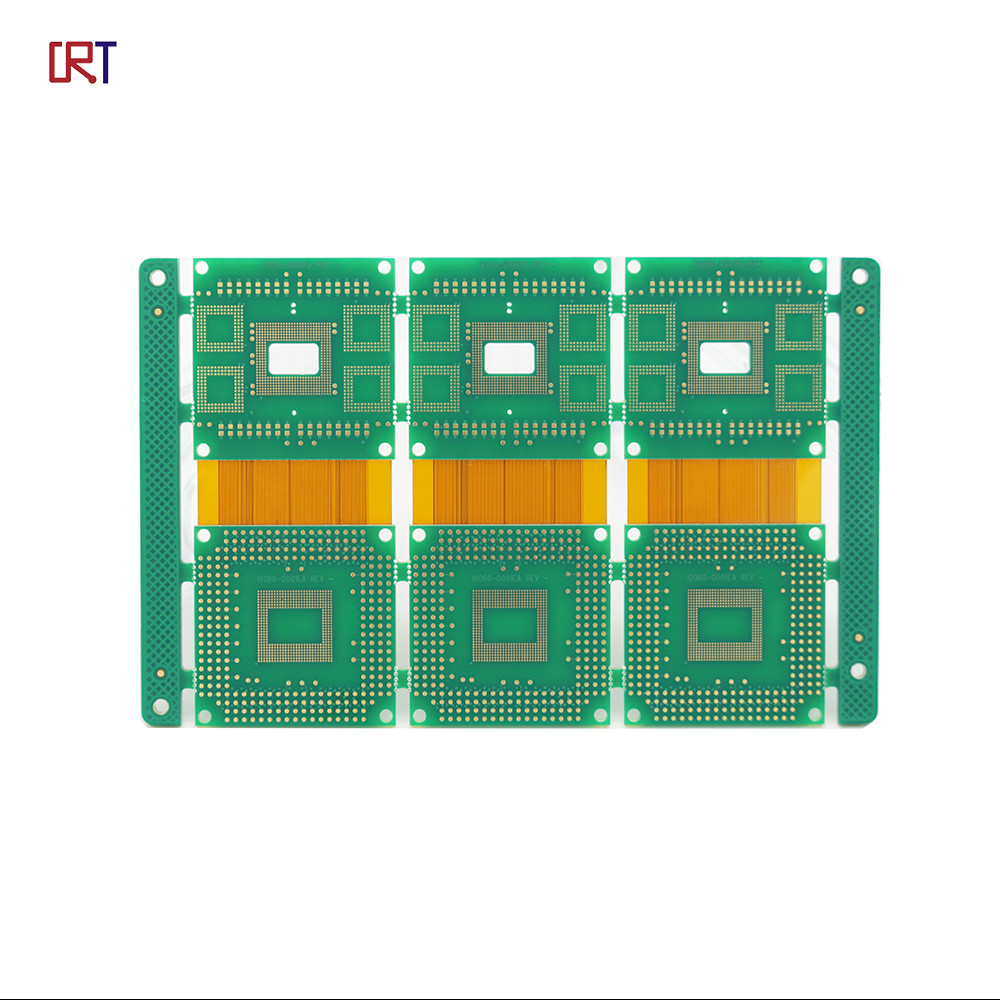

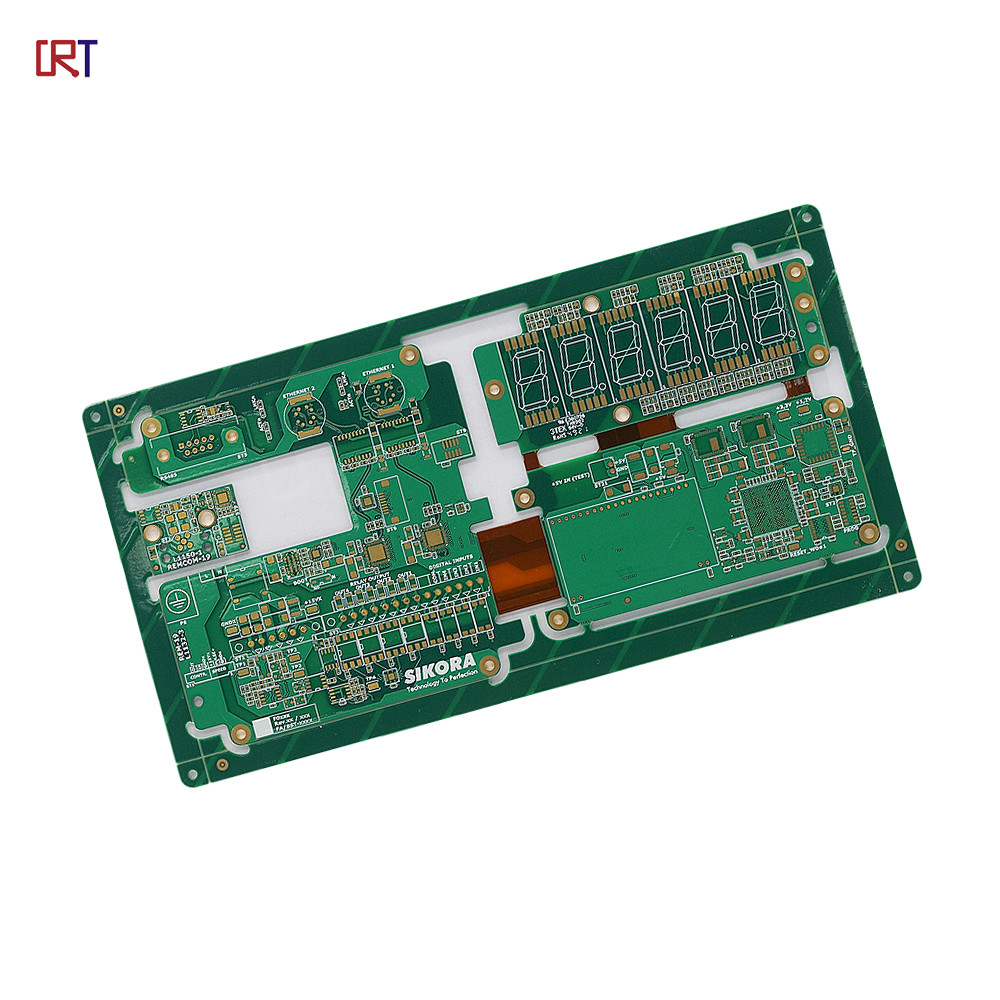

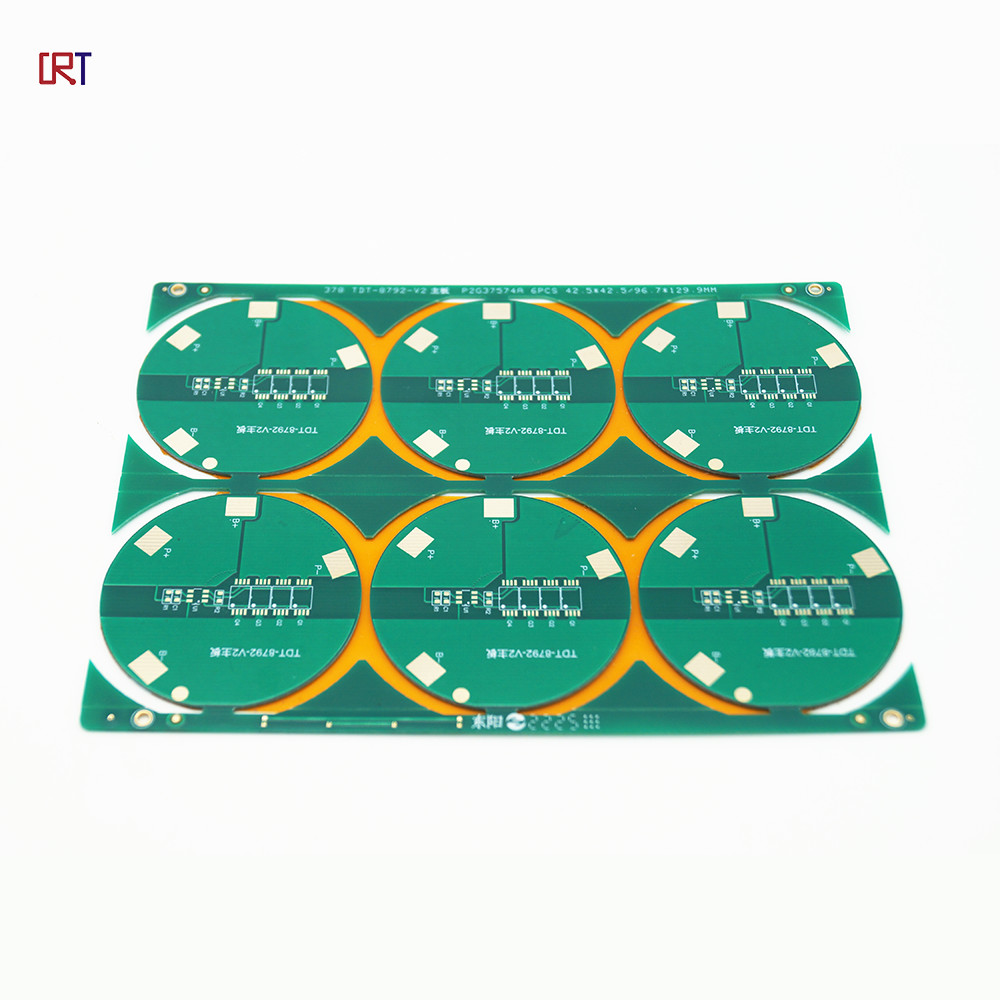

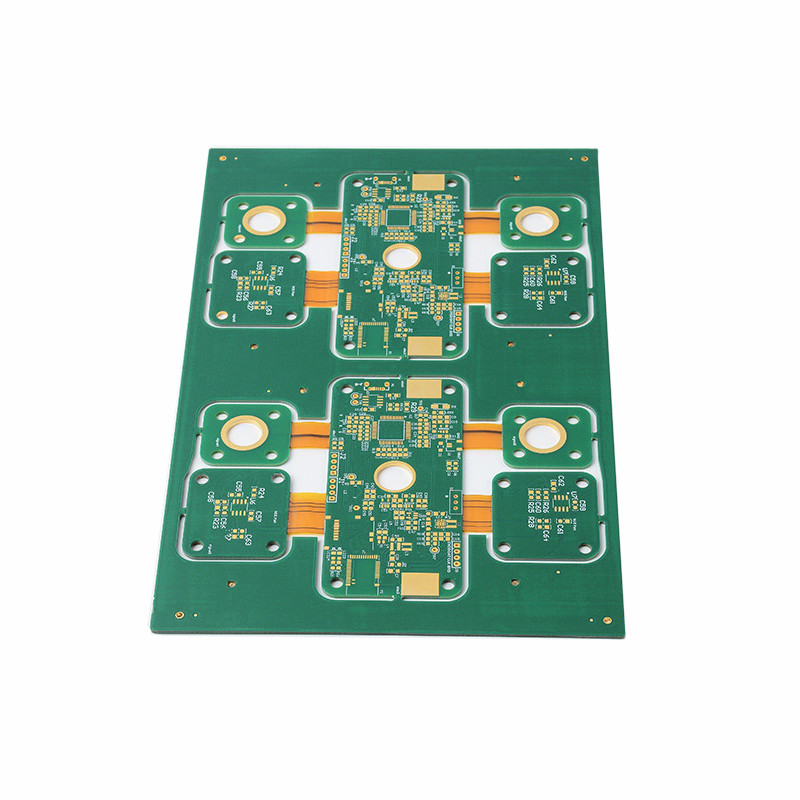

Product Image
Why choose CRT
1.Quick Response
Offer reply within 30 minutes, 2-hour engineering response, 24-hour technical support, save customer waiting time, shorten product development and production cycle from all aspects, save product launch time, and quickly occupy the market for your products.
2.Leading technology
Over ten years of development, we grow year on year to add technology and capacity. PCB technology from the standard PCB to RF circuit, microwave circuit board, Multilayer PCB, Rigid-flexible PCB, HDI PCB, IC substrate, IC test board, PCBA assembly.
3.Sincere Cooperation
The support and trust of our partners are the driving force for our progress. We are looking for a win-win business with our customers. There is no small or big customer in our company culture. Always doing our best to provide excellent service is our goal.
4.Stable Material
Wide selection of PCB material suppliers, such as Isola, Panasonic, TUC, ITEQ, Shengyi, KB, Rogers, Arlon, Taconic, Doosan, Mitsubishi Gas, DuPont, etc.
Stock materials: FR408, 370HR, TU872, RO4350B, RO4003C, RT5880, RO3010, RO3003, RF35, TLY-5, Megtron4, Megtron6, S1000-2, IT180, F4BM PCB prototype material.
5.Fast Delivery
Support FR-4 PCB, Multilayer circuit board, HDI PCB, Ceramic PCB, PTFE printed circuit board, Hybrid circuit, Teflon PCB, RF PCB, Rogers PCB. Advanced PCB ERP tracking management system leads the industry in delivery time, PCB On-time delivery rate above 97%.
6.Quality Control
Strict quality control system guaranteed us one of the most experienced printed circuit board manufacturers in China with over ten years.IPC Class III standard can be selected based on customer requirements.
Hih quality China multilayer rigid flex PC
