Turnkey Multilayer Pcb Assembly Circuit Board Custom 94v0
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001,IATF16949,ISO14001 |
| Model Number | CRT-DC-022 |
| Minimum Order Quantity | 50 Pieces |
| Price | USD 0.2~0.6/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 14 |
| Payment Terms | T/T |
| Supply Ability | 500000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 94V0 PCB Board | Product Type | OEM ODM EMS |
|---|---|---|---|
| Service | One-stop Service | PCB Packing | Customized Carton |
| Solder Mask Color | Blue.black.green.red.etc | PCB Assembly Process | DIP. SMT |
| Highlight | turnkey multilayer pcb assembly,94v0 multilayer pcb assembly,94v0 custom pcb assembly |
||
Product Description
Turnkey Multilayer Circuit Board Custom 94V0 PCB Assembly Serivce Factory
Our Services:
1. Provide evaluation, planning and exploration of new products;
2. Providenew product R&D, testing, and certification services;
3. Provideproduction and supply of components,modules, and electronic control boards;
4. Provide Customers provide ODM services for the corresponding finished products.
Specification:
|
Multilayer PCB
|
Special Tech
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
1.Impedance
2.Via Filling 3.PFH,Backdrill 4.Mix Finishes 5.Cave 6.heatsink 7.ENEPIG |
|
Layer Count:
|
4~50L
|
|
|
Material:
|
FR4 (Tg130~Tg170)
|
|
|
Board Thickness(mm):
|
0.6mm~10.0mm
|
|
|
Copper Thickness(oz):
|
Hoz~3oz
|
|
|
Size(mm):
|
5mm~1200mm
|
|
|
Min. LW/LS(mm):
|
0.1/0.1
|
|
|
Min. Hole(mm):
|
0.25
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, White...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
Certificate:
|
RoHS/ISO9001/ISO14001
|
|
|
Service:
|
OEM / DFM
|
|
FAQ:
Q1. What kind of documents/files do you need for quotation?
A1: For PCBA project, please send us your Gerber files, BOM(bill of material) and pcb specification.
A2: For plastic enclosure/junction box/shell, please send us your 3D drawings and material.
A3: For ODM/Engineer Development service, please consult our sales engineer for more details.
Q2. How to keep our product information and design file secret ?
A2: We are willing to sign a NDA effect by customers side local law and promising to keep customers data in high confidential level.
Q3.How long does it take for PCB and PCBA Quote ?
A3: Please note that the following detail will speed up evaluation:
Material:
Board thickness:
Copper thickness:
Surface finish:
Solder mask color:
Silkscreen color:
Q4: How can we guarantee you receive an good quality product?
A4: For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test. Before that, our inspectors will use microscope and X-ray to check the IC foot welding or bad solder etc.

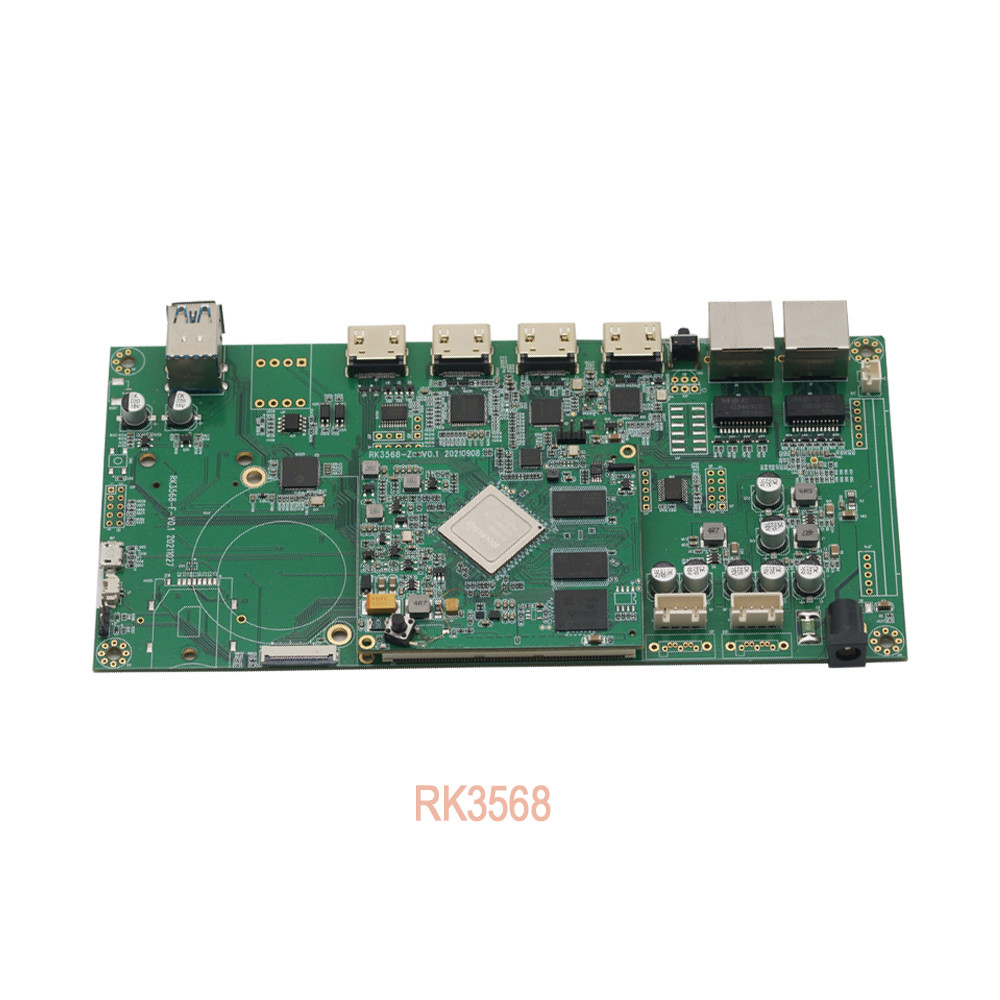

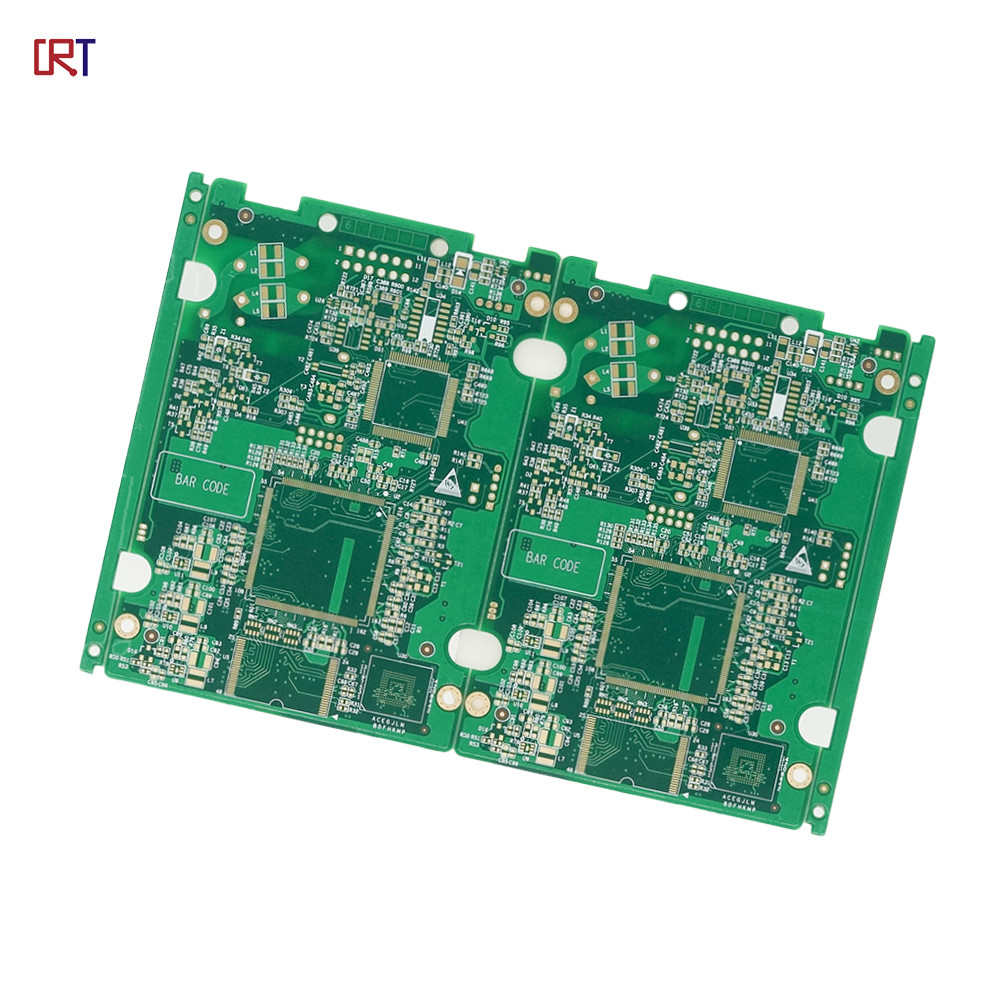

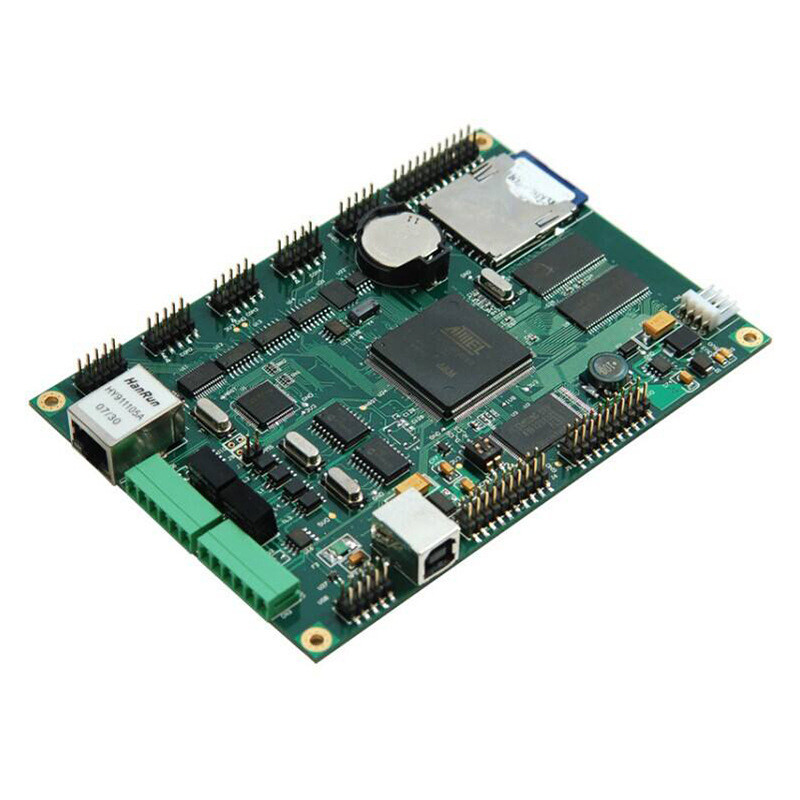

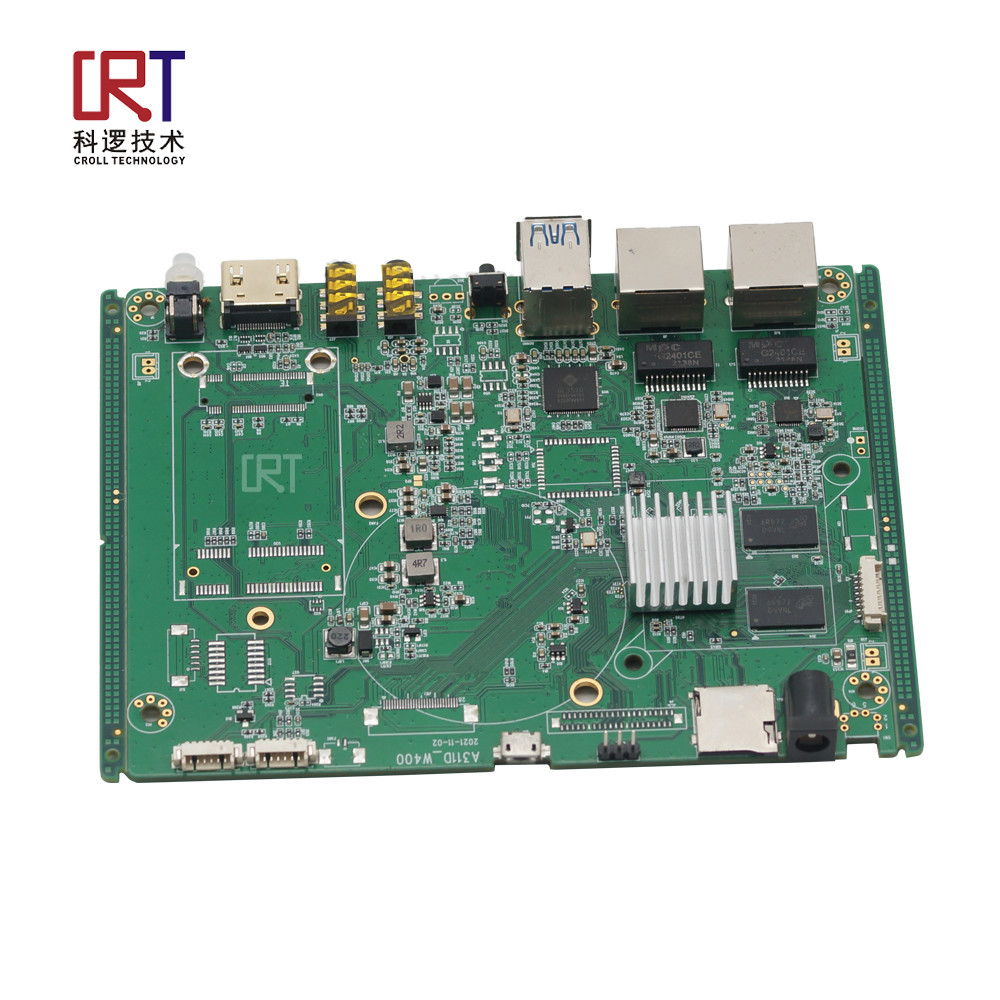

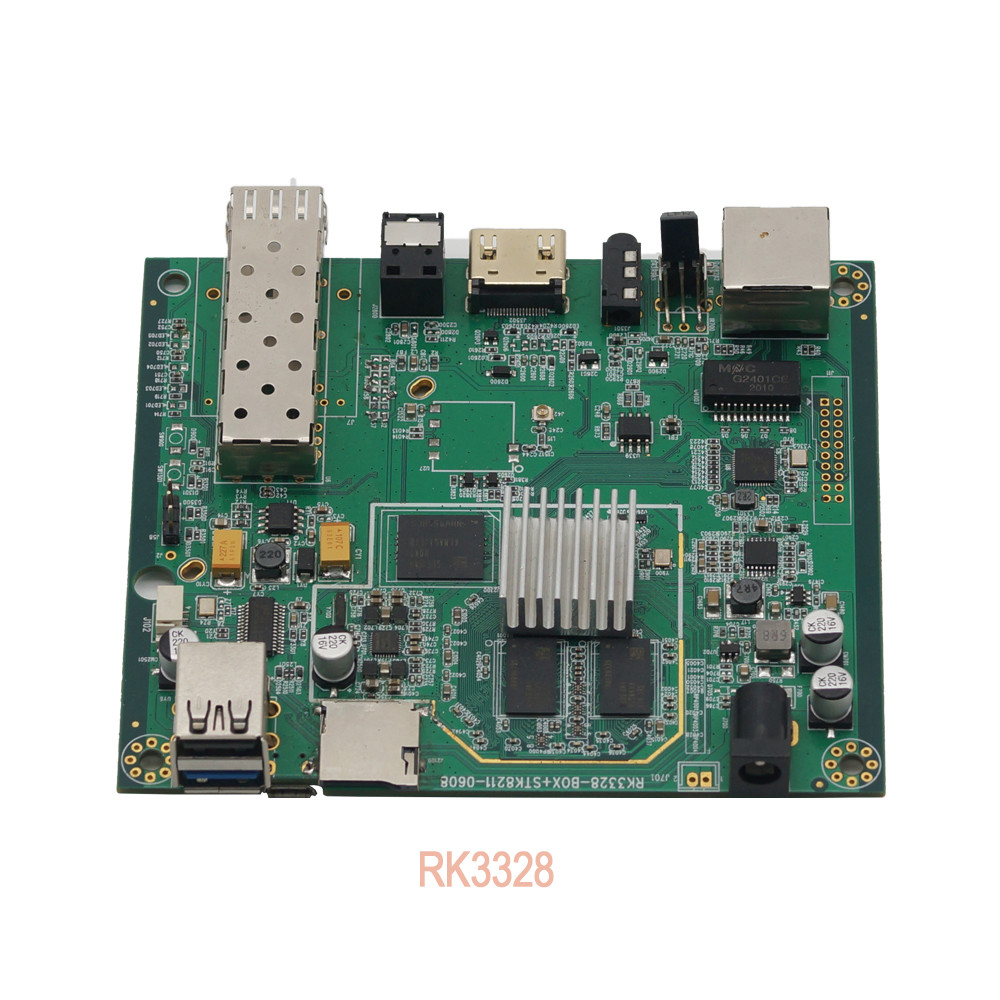

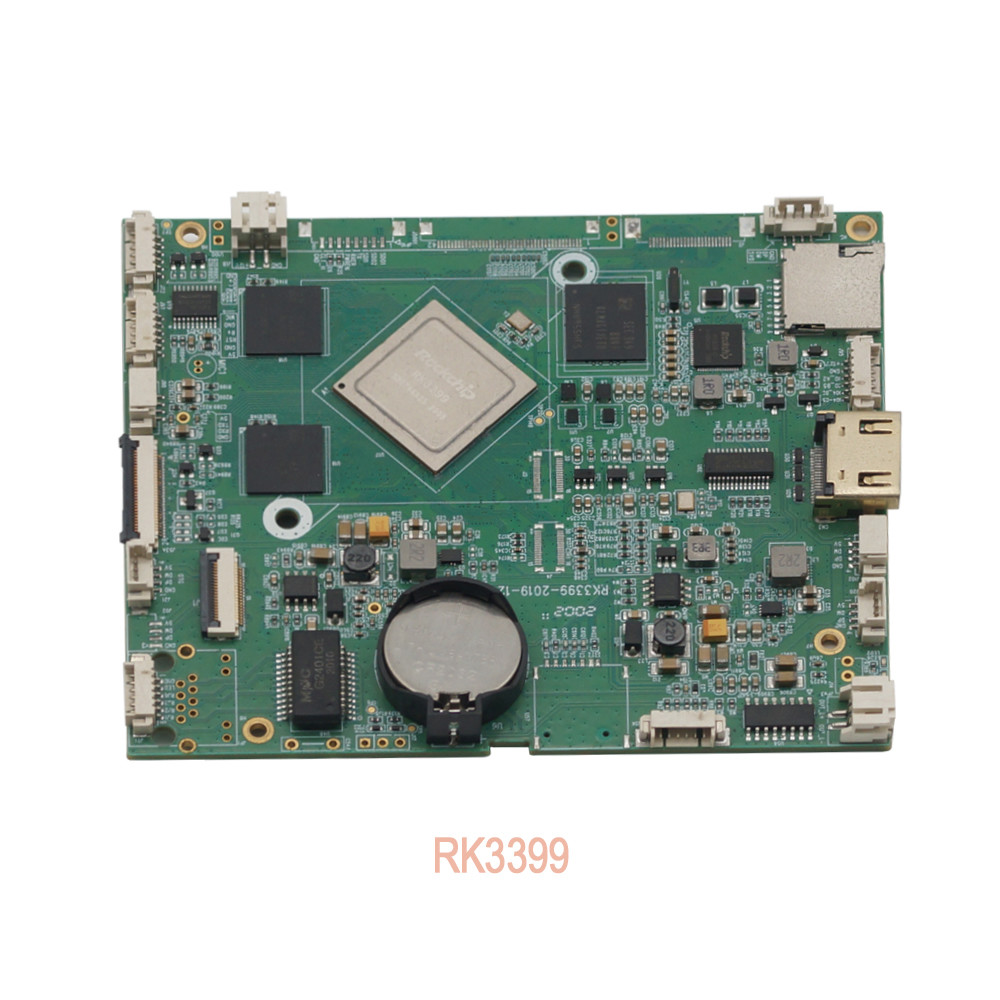

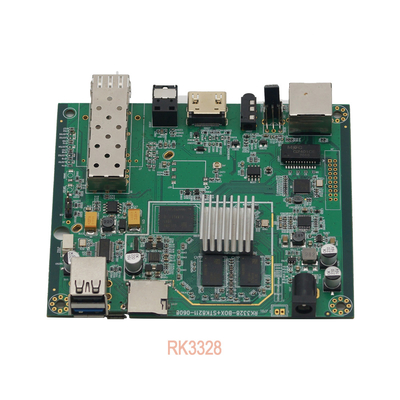

Product Image:
