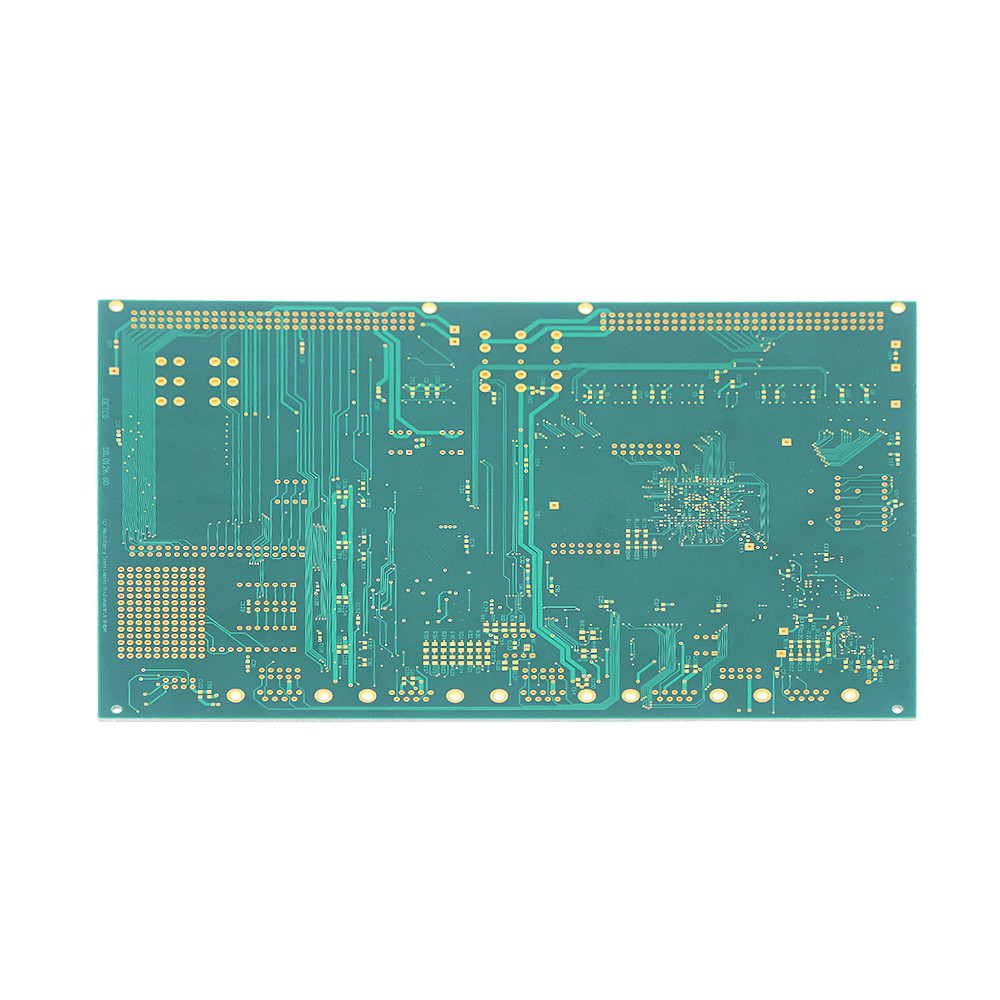

Customized 0.6mm 10.0mm Multilayer PCB Assembly Power Bank Module
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001 |
| Model Number | CRT-Multilaye-016 |
| Minimum Order Quantity | 10 Pieces |
| Price | USD 0.1~1.5/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 14 |
| Payment Terms | T/T |
| Supply Ability | 1000000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | FR4 Pcb Circuit Board | Layer Count | 4-30L |
|---|---|---|---|
| Matierial | FR4 (Tg130~Tg170) CEM1,CEM3 | Board Thickness | 0.6~10.0mm |
| Copper Thickness | Hoz~3oz | Solder Mask | Green, Yellow, Blue, Black, White... |
| Surface Treatment | ENIG,OSP,HASL,Imm Tin,Imm Silver... | Certificates | ISO9001,ISO14001,IATF16949 |
| Product Type | OEM PCB Mannufacturer | Application Segment | Auto,Industrial,Medical,DataCom、Comsumer |
| Highlight | 10.0mm Multilayer PCB Assembly,0.6mm Multilayer PCB Assembly,0.6mm Custom Printed Circuit Board |
||
Product Description
Customized 0.6mm 10.0mm Multilayer PCB Assembly Power Bank Module
Power Bank Module Custom Pcb Printed Circuit Board Factory Multilayer PCB Assembly
Quality & OTD Target
◎ Quality goal for rate of complaint
≤0.1% by batch,
≤200PPM by quantity;
≤50PPM by quantity (Auto);
◎ The rate of total internal scrap: FPC≤3.0%;
◎ The rate of delivery on time:
≥95% for normal FPC,
100% for automotive FPC.
◎ Quick Turn delivery
Prototype : Fastest 48 hours to seven days
Mass Production: Fastest 5 to 14 days
Certificates
UL Underwriter Laboratories Certificate
ISO9001 Quality System Certificate
ISO14001 Environment System Certificate
IATF16949 Automotive Certificate
ISO13485 Medical Certificate
TL9000 Telecom Certificate
CIT Certificate of IPC Trainer IPC
Specification:
|
Multilayer PCB
|
Special Tech
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
1.Impedance
2.Via Filling 3.PFH,Backdrill 4.Mix Finishes 5.Cave 6.heatsink 7.ENEPIG |
|
Layer Count:
|
4~50L
|
|
|
Material:
|
FR4 (Tg130~Tg170)
|
|
|
Board Thickness(mm):
|
0.6mm~10.0mm
|
|
|
Copper Thickness(oz):
|
Hoz~3oz
|
|
|
Size(mm):
|
5mm~1200mm
|
|
|
Min. LW/LS(mm):
|
0.1/0.1
|
|
|
Min. Hole(mm):
|
0.25
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, White...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
Certificate:
|
RoHS/ISO9001/ISO14001
|
|
|
Service:
|
OEM / DFM
|
|
Business content
1. One-stop service
2. OEM service
3. Gerber file needed
4. PCB clone with sample
5. Quality guarantee and professional after-sell service
Best raw materials
High TG, FR4, high frequency(Rogers,Teflon, ARLON, TYCONIC), Halogen-free
Advanced technology
min/T/G:3/3 mil
Impedance control ±10%
MAX aspect ratio for board thickness vs drill bit size 15:1
surface treatment :HASL, Gold plating, Immersuin gold, Immersuin tin, Immersion silver, Gold fingers, OSP
Advanced equipment
| Solder Paste Jet | X-RAY | AOI |
| Wave Soldering | Reflow | X-RAY Counter |
| Surface Mount Machine | On-line AOI | MY-500 |
| SPI |
Why choose us?
Our Advantage:
1.Support customized
- A gobal independent distributors of electronic components
- Welcome OEM, ODM.
- A variety of channels to satisfy various demands
Most of them are in stock with very competitive price
2. Quality:
- Original :100% new and original factory packing. Rohs. No bulk, no refurbish, no obsolete.
3. For the faulty:
- Firstly, products are produced in strict quality control system by manaufacturer .
- For some defective batch products, we will send them to factory and resend them to you or we can discuss the real situation.
Product Image:
FAQ
Q1.What is needed for FPC/ PCB /PCBA quotation?
A: FPC: gerber files,quantities PCB: Quantities, PCB files (Gerber file )and technical requirements(material,copper thickness,board thickness ,surface finished treatment...) PCBA:Quantities, PCB files (Gerber file )and technical requirements(material,copper thickness,board thickness ,surface finished treatment...),BOM
Q2:What is the lead time ?
A: (1)Sample 1-2 Layers: 5 to 7working days 4-8 Layers: 10 working days (2)Mass production: 2-3weeks,3-4 weeks
Q3: What is your minimum order quantity(MOQ) ? A: No MOQ,we can support your projects from prototype to mass productions
Q4: Which countries have your worked with ? A:UK,Italy,Germany,US,Korea,Australia,Russia,Thailand,Singapore ,and so on.
Q5:Are you factory ? Yes ,our factory is in Dongguang,which is a famous manufacturing city in China.
