Oem Service Custom Flex Circuit Board High Tg Fr4
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | CRT |
| Certification | UL/ISO14001/TS16949 |
| Model Number | CRT-DP-005 |
| Minimum Order Quantity | 1 Pieces |
| Price | 0.2$-0.3$/pc |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 18 working days |
| Payment Terms | T/T |
| Supply Ability | 500000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rigid Flex PCB | Base Material | FR4, High TG FR4, Etc |
|---|---|---|---|
| Copper Thickness | 1OZ, 0.5OZ-6OZ | Board Thickness | 0.2-1.6mm |
| Min. Hole Size | 0.20mm | Min. Line Width | 4mil |
| Min. Line Spacing | 4mil | Surface Finishing | LF HASL |
| Min Solder Mask Bridge | ≥0.08mm | Aspect Ratio | 15:1 |
| Highlight | oem flex circuit board,high tg fr4 flex circuit board,high tg fr4 flexible circuit board |
||
Product Description
PRODUCT DESCRIPTION
As the name implies, a rigid-flex PCB is a combination of both rigid and flexible substrates. One or more flexible circuits are used to connect subcircuits on rigid PCBs. Rigid-flex PCBs are usually produced with flexible polyimide material on copper cladding substrate and connect to the rigid FR4 board.
Specification:
|
Rigid Flex PCB
|
Special Tech
|
|
|
Place of Origin:
|
China
|
1.Silver Circuit
2.Silver TH 3.High Risitor
4.Could be in a round surface
|
|
Brand Name:
|
CRT
|
|
|
Build Time.
|
3days -5 weeks
|
|
|
Layer Count:
|
1~36 layers
|
|
|
Material:
|
FR4 (Tg130~Tg170)
|
|
|
Board Thickness(mm):
|
0.2mm~3.0mm
|
|
|
Copper Thickness(oz):
|
0.33oz~2oz
|
|
|
Size(mm):
|
2mm~500mm
|
|
|
Min. LW/LS(mm):
|
0.2/0.2
|
|
|
Min. Hole(mm):
|
0.2
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, Purple...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
E-test
|
X-ray, AOI, Function test | |
|
Service:
|
OEM / DFM
|
|

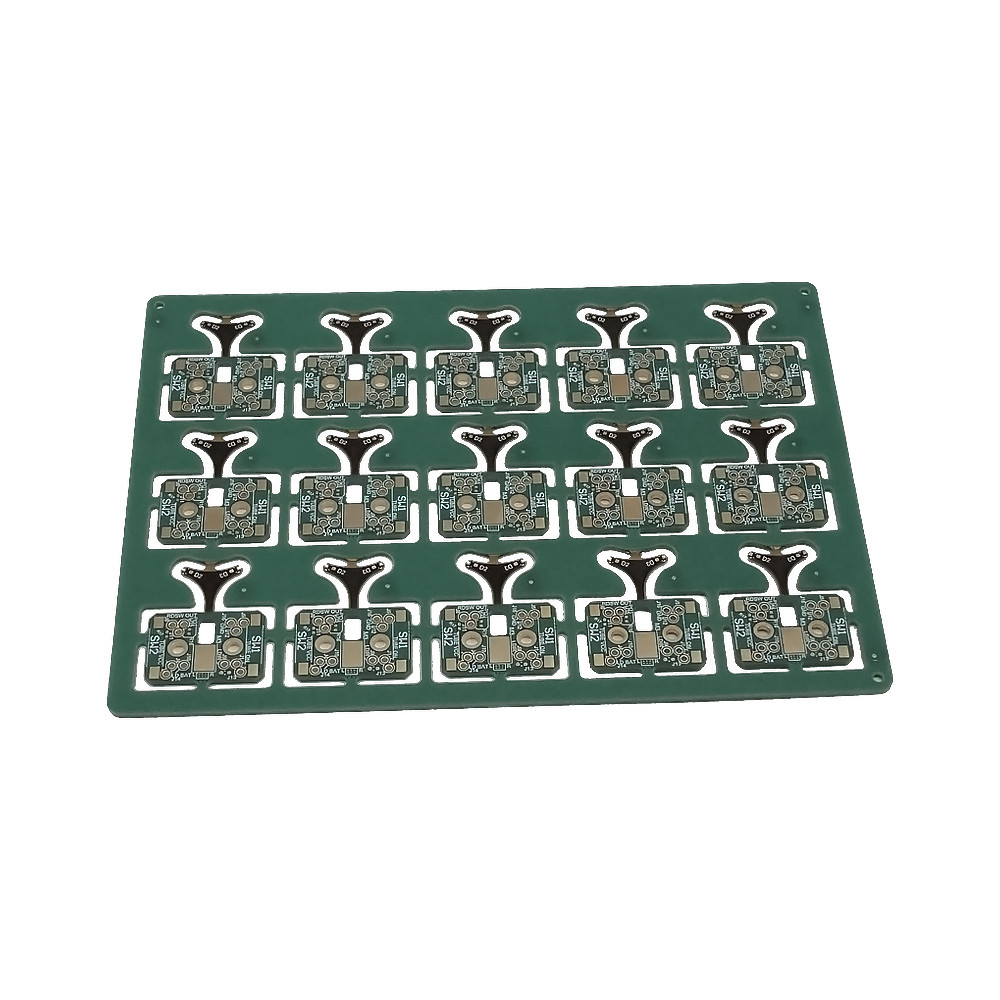

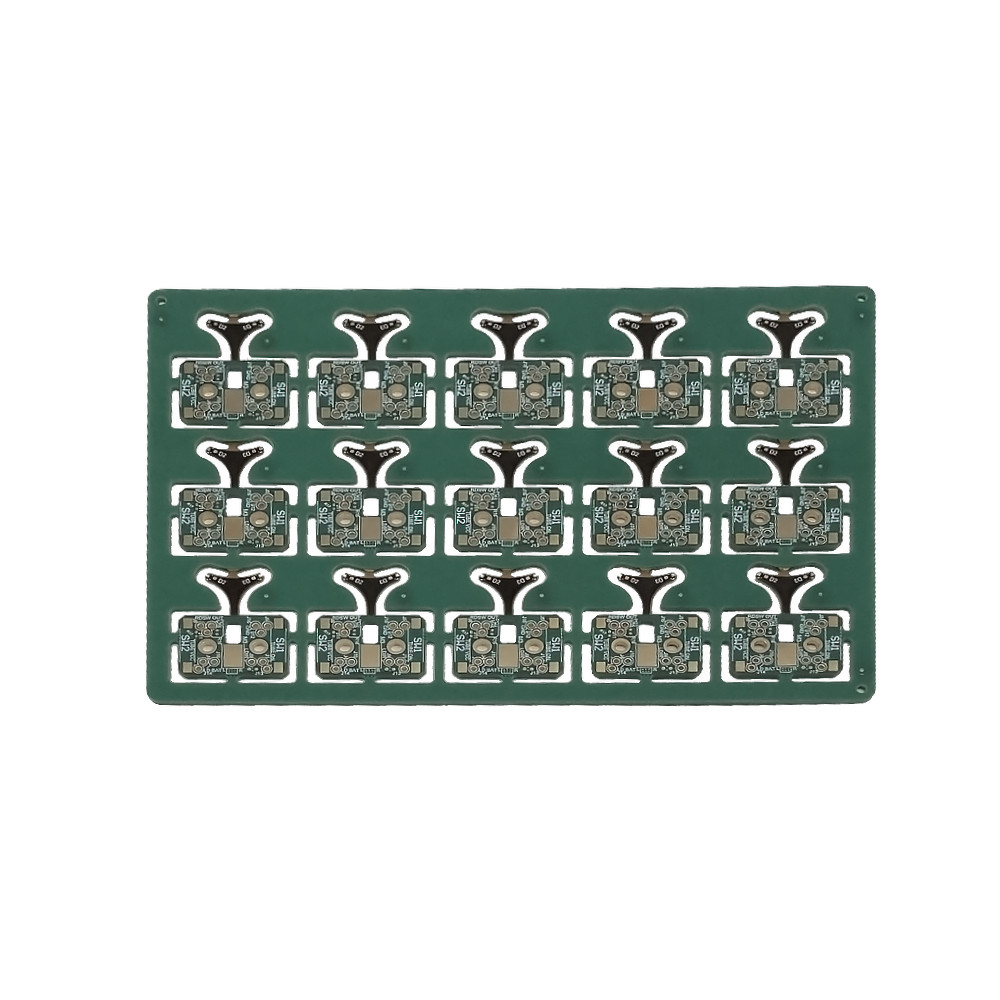

Product Image:
Company Introduction
Croll Technology is an electronic manufacturing service (EMS/OEM/Customization/Turnkey) provider, found by a group of engineers. We have been providing PCB manufacturing, components sourcing, PCB assembling, Function testing, so as other relevant services for over 12 years. Located in Shenzhen, Guangdong, China.
Our Advantage
1. NO VOID IN THE FILING HOLE
2. SMOOTH SURFACE
3. GOLD FINGER POSITION NOT WRINKLE
Application Filed
1. Aerospace
2. Consumer Electronics
3. Telecom Communication
4. Industrial Control
5. Miltary & Defense
6. Automotive Industry
FAQ:
Q1: How to get the PCB?
A: For small packages, we will ship the board to you by DHL, UPS, Fedex, EMS, door to door service
Q2: Which payment terms do you accept?
A: We usually accept the following payment terms T/T, western union, money gram, Paypal,etc.
Q3: What is your minimum order quantity?
A: Our MOQ is 1pcs.
Q4: How about the products package?
A:Flexible package according to the specific requirements of the clients.
