Thick 0.13mm Flexible FPC Assembly Circuit Board Line Width Spacing 1.0
| Place of Origin | Guangdong,china |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL/ISO13485 |
| Model Number | CRT-FPC-031 |
| Minimum Order Quantity | 10pieces |
| Price | $1~5/pieces 10-999 pieces |
| Packaging Details | Vacuum packaging + moisture + humidity card |
| Delivery Time | 1 – 5 days, 1 – 2 weeks |
| Supply Ability | 100000/pieces/15 word days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | FPC | Board Thickness | 1.6mm |
|---|---|---|---|
| Copper Thickness | 1oz | Laser Hole Size | 0.1mm |
| Min. Line Spacing | 4mil | Min. Line Width | 0.075mm--0.09mm |
| Certificate | UL, SGS, RoHS, ISO14001, ISO9001,ISO13485,IATF16949 | Board Thickness Tolerance | ±10% |
| Hole Tolerance | PTH: ±3mil NPTH: ±2mil | ||
| Highlight | 0.13mm FPC Assembly,4Pin FPC Assembly,0.13mm FPC Circuit Board |
||
Product Description
Thick 0.13mm Flexible FPC Assembly Circuit Board Line Width Spacing 1.0
4PIN Thick 0.13MM Line Width Spacing 1.0 Long 45MM Flexible Printed Circuit Board FPC
One-Stop OEM Service:
If you just have a initial product design,we can provide Electronic circuit Design, PCB Layout, Plastic/Metal mechanical design, Mold / Tooling design & fabrication for you.
Typical products type:
• PCB assembly with wires & cable assembly
• PCB assembly with plastic cases
• PCB assembly with metal enclosures
FPC Manufacturing capablityn:
| Layer | 1-6L |
| Min distance trace-pad | 8mil |
| Min distance pad-pad | 8mil |
| Board thickness | 0.075mm≤T＜0.35mm |
| Material | FR4 TG150+ Polyimide |
| Min trace width | 4mil |
| Min trace space | 4mil |
| Max Drill bit Diameter | 6.5mm |
| Min Drill bit Diameter | 0.20mm--0.1 |
| Routing tolerance | ±0.15mm |
| Min Base Copper | 2oz |
| Copper1 | 1oz |
Application and Development of Rigid Flexible PCB:
CRT has been developing and manufacturing Rigid-Flex PCB since 2010 and has become a Rigid-Flex PCB manufacturer. At present, CRT can mature Manufacturing Rigid-Flex PCB used in automobiles, medical, industrial, and consumer electronics (headphones, mobile phones, e-cigarettes), and can also assist customers in Rigid-Flex PCB design,and CRT has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop turnkey services, including pcb manufacture, assembly, components sourcing and function testing.

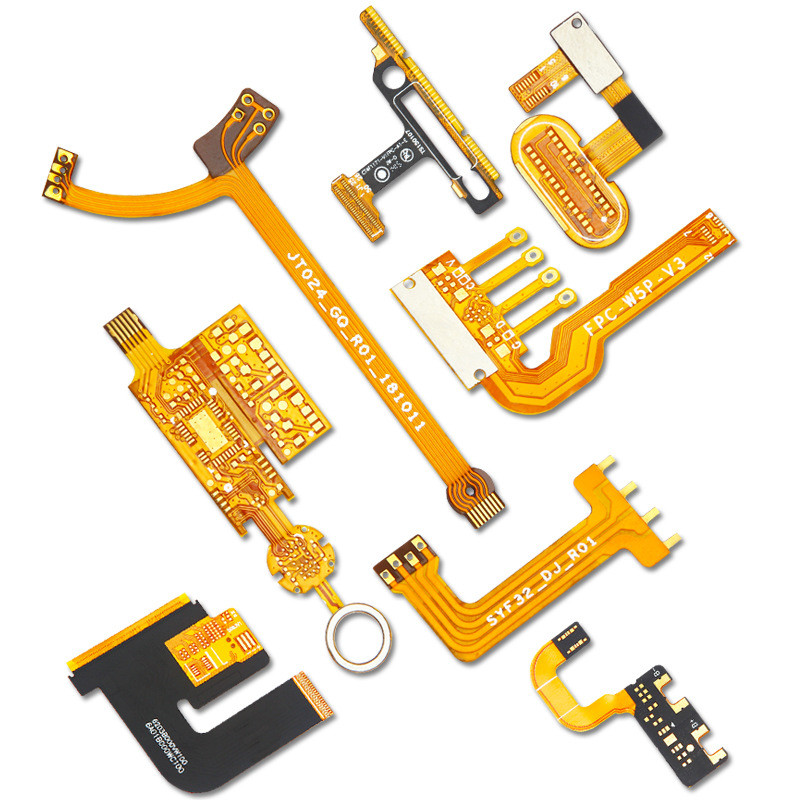

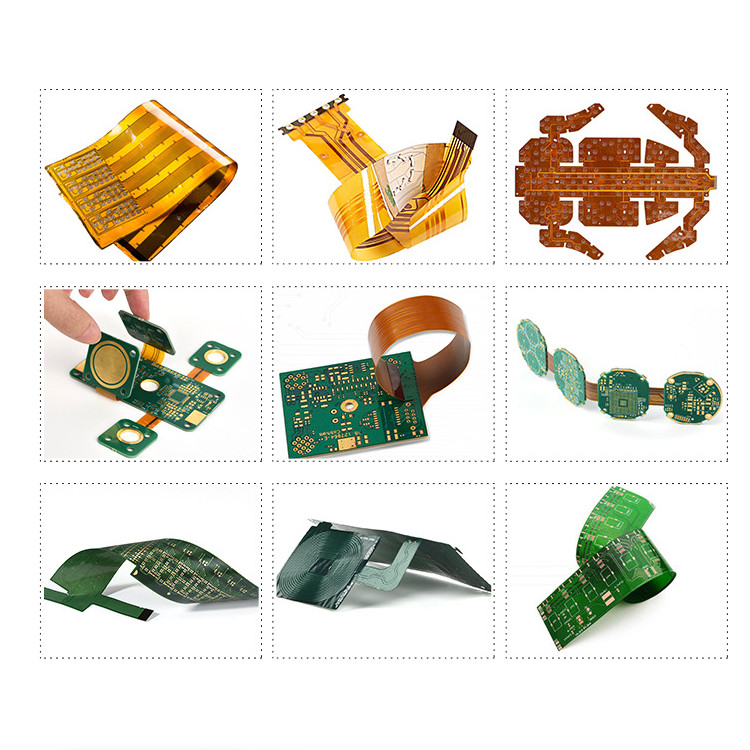

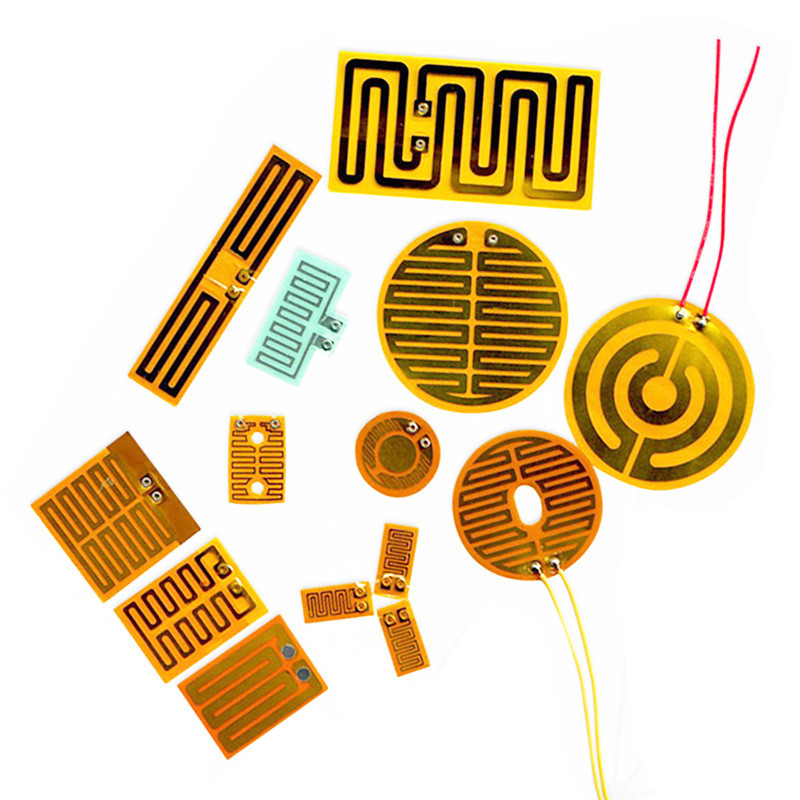

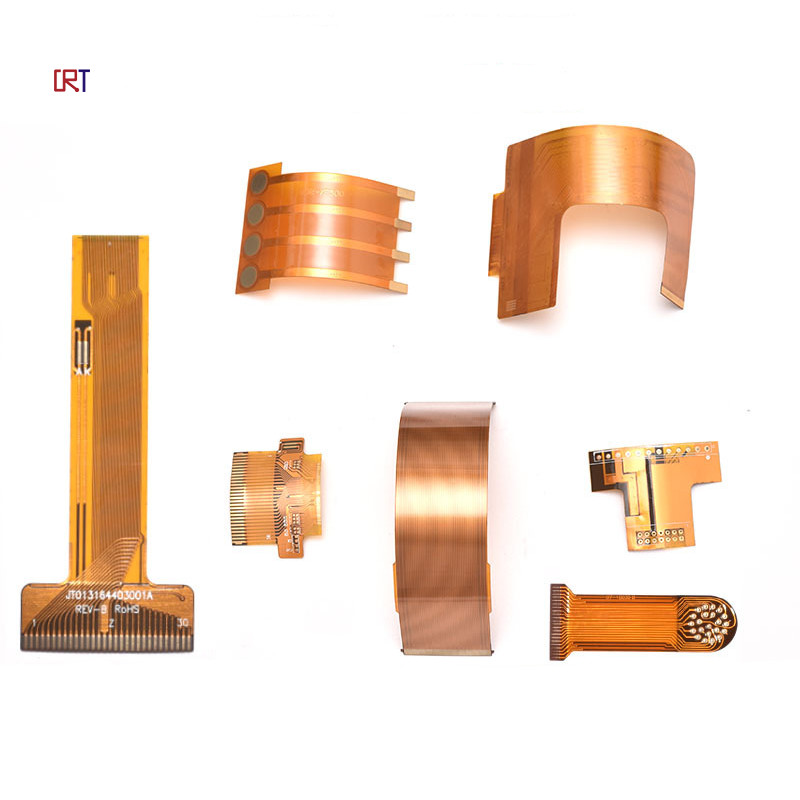

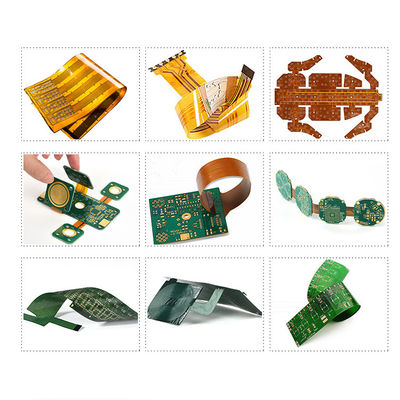

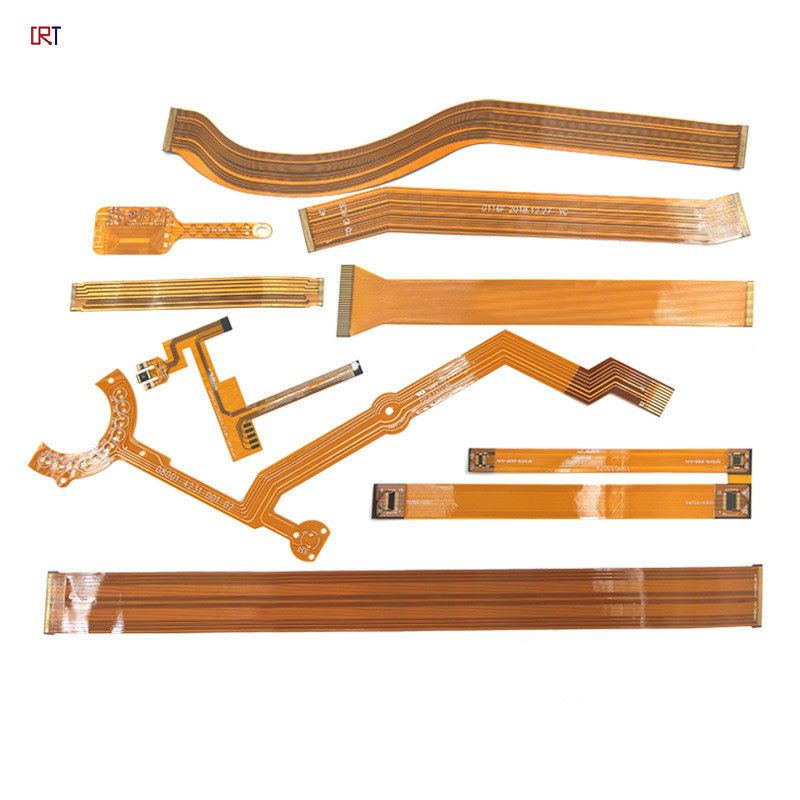

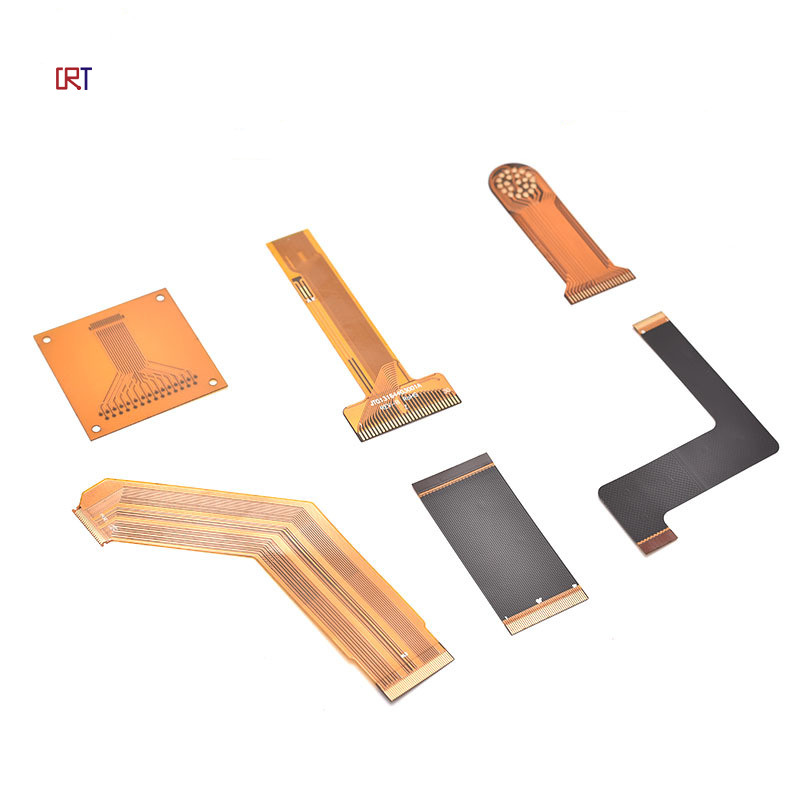

Product Image:
FAQ:
1.What is needed for PCB PCBA quotation?
PCB(printed circuit board): Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA(printed circuit board assembly): PCB information, BOM, (Testing documents...)
PCB(printed circuit board): Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA(printed circuit board assembly): PCB information, BOM, (Testing documents...)
2.Are my design files safe when I submit them to you for manufacturing?
Any customer`s file will be protected very well here in our factory and we will not let any third party know. We can sign NDA with you.
3. What kind of service do you offer?
We mainly focus on PCB+Assembly+Components sourcing service. Additionally, we can also provide programming, testing, cables, enclosure assembly service.
We mainly focus on PCB+Assembly+Components sourcing service. Additionally, we can also provide programming, testing, cables, enclosure assembly service.
4. What is needed for the quotation?
PCB Circuit Boards: Quantity, Gerber file, and Technic requirements(material, surface finish treatment, copper thickness, board thickness,...)
