Ultra Thin FPC Flex Circuit Assembly For Precision Electronic Products
| Place of Origin | Guangdong,china |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL/ISO13485 |
| Model Number | CRT-FPC-036 |
| Minimum Order Quantity | 10pieces |
| Price | $7/pieces 10-999 pieces |
| Packaging Details | Vacuum packaging + moisture + humidity card |
| Delivery Time | 5 |
| Supply Ability | 100000/pieces/15 word days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layer Count | Polycoolimide 1-6 Layers Flexible Board | Maximum Processing Size | 1200mm*600mm |
|---|---|---|---|
| Material | Electrolytic Copper Unglued Electrolytic Steel Calendered Copper Unglued Calendered Steel | Laser Hole Size | 0.1mm |
| Mechanical Drilling Range | 0.15mm-6.5mm | Minimum Metal Slot Hole | 0.15mm-6.5mm |
| Slot Hole | 0.05oz | Line Width Line Distance | 0.05mm |
| Hole Ring | 0.1mm | Electroless Nickel Gold | 2-5UM |
| Electroplated Gold | 0.025-0.075UM | ||
| Highlight | FPC Flex Circuit Assembly,Polycoolimide Flex PCB Assembly,ISO13485 Ultra Thin PCB |
||
Product Description

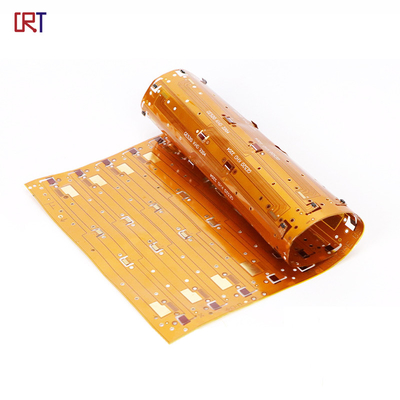

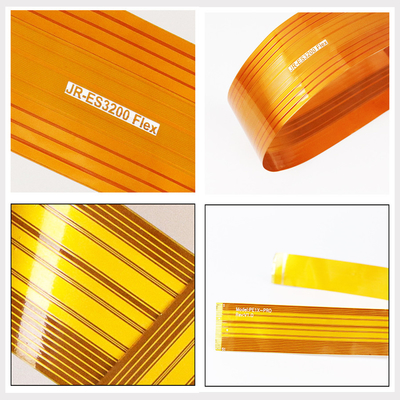

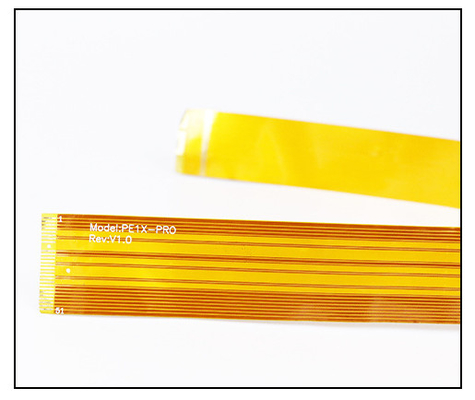

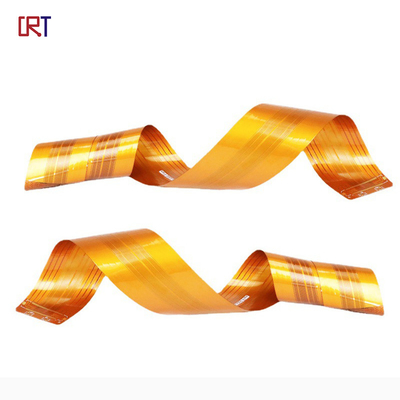

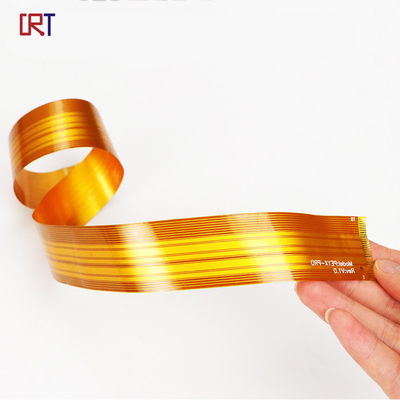

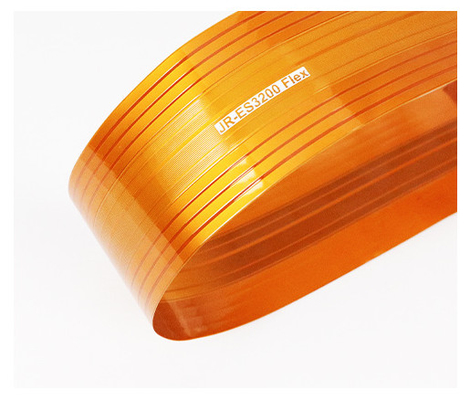

Ultra Thin FPC Flex Circuit Assembly For Precision Electronic Products
Ultra-Thin FPCr Flexible Circuit Board For Precision Electronic Products
One-Stop OEM Service:
If desired, we will source, organise and manage all aspects of the PCB design, so that your product meets all required standards and is fully optimised for easy and cost effective manufacturing.
A well designed circuit board means:
· A reduction in production problems
· Improved quality control
· Reduced costs
· Reduced manufacturing times
We work to supply small and large batches of competitively priced printed circuit boards to our customers.
FPC Manufacturing capablityn:
| minimum linewidth/linespacing | 3MIL/3MIL(0.075mm) |
| minimum hole diameter | 6MIL(0.15MM) |
| minimum solder resist opening (single-side) | 1.5MIL(0.0375MM) |
| minimum solder resist bridge | 3MIL(0.075MM) |
| maximum aspect Ratio (thickness/hole diameter) | 10:1 |
| impedance control accuracy | +/-8% |
| finished thickness | 0.3-3.2MM |
| maximum board size | 630MM*620MM |
| maximum finished copper thickness | 6OZ(210UM) |
| minimum board thickness | 6MIL(0.15MM) |
| maximum layer | 14 |
| Surface treatment | HASL-LF,OSP ,Immersion Gold, Immersion Tin ,Immersion Ag |
Application and Development of Rigid Flexible PCB:
CRT has been developing and manufacturing Rigid-Flex PCB since 2010 and has become a Rigid-Flex PCB manufacturer. At present, CRT can mature Manufacturing Rigid-Flex PCB used in automobiles, medical, industrial, and consumer electronics (headphones, mobile phones, e-cigarettes), and can also assist customers in Rigid-Flex PCB design,and CRT has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop turnkey services, including pcb manufacture, assembly, components sourcing and function testing.
Product Image:
FAQ:
1.What is needed for PCB PCBA quotation?
PCB(printed circuit board): Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA(printed circuit board assembly): PCB information, BOM, (Testing documents...)
PCB(printed circuit board): Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA(printed circuit board assembly): PCB information, BOM, (Testing documents...)
2. What file formats do you accept for PCB PCBA production?
Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
3. Are my files safe?
Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
4. MOQ?
There is no MOQ in POE(pcba shenzhen).We are able to handle Small as well as large volume production with flexibility.
Q5.Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
There is no MOQ in POE(pcba shenzhen).We are able to handle Small as well as large volume production with flexibility.
Q5.Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
