Copper Thickness 0.5oz 1oz FPC Assembly Flex PCB Prototype Assembly
| Place of Origin | Guangdong,china |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL/ISO13485 |
| Model Number | CRT-FPC-039 |
| Minimum Order Quantity | 10pieces |
| Price | $10/pieces 10-999 pieces |
| Packaging Details | Vacuum packaging + moisture + humidity card |
| Delivery Time | 10 |
| Supply Ability | 100000/pieces/15 word days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Base Material | Polyimide/PI/PET/PE | Copper Thickness | 0.5oz 1oz |
|---|---|---|---|
| Board Thickness | 0.1mm-0.2mm | Min. Hole Size | 0.1mm |
| Min. Line Width | 0.075mm | Min. Line Spacing | 0.075mm |
| Highlight | 0.5oz FPC Assembly,0.5oz Rigid Flex PCB Assembly,1oz Flex PCB Prototype |
||
Product Description
Copper Thickness 0.5oz 1oz FPC Assembly Flex PCB Prototype Assembly
Flex PCB Prototype, Flex PCB and Rigid-flex PCB and PCB Assembly in Fast Way
Our Team's Ablibity
We have a professional team to help your order, we have sales team, order plan team, PMC Team, Engineering Team, Manufacturer Team, QC Team, Test Team and etc... we could help to solve your problem if you needed.
SMT Assembly / PCBA Assembly:
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly (To short the lead time, please kindly advise us if there is any acceptable components substitution.)
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary
FPC Manufacturing capablityn:
| Item | Production capability |
| Layer count | 1 ~ 6 |
| Copper thickness of lamination | 1/3 ~ 1oz |
| Auto-cutting accuracy | 0.075mm / 6.5mm / ±0.025mm |
| Min percent for CNC slot length and width | 2:01:00 |
| maximum aspect Ratio (thickness/hole diameter) | 8:01:00 |
| Homogeneity of Plating Cn | ≥90% |
Application and Development of Rigid Flexible PCB:
CRT has been developing and manufacturing Rigid-Flex PCB since 2010 and has become a Rigid-Flex PCB manufacturer. At present, CRT can mature Manufacturing Rigid-Flex PCB used in automobiles, medical, industrial, and consumer electronics (headphones, mobile phones, e-cigarettes), and can also assist customers in Rigid-Flex PCB design,and CRT has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop turnkey services, including pcb manufacture, assembly, components sourcing and function testing.

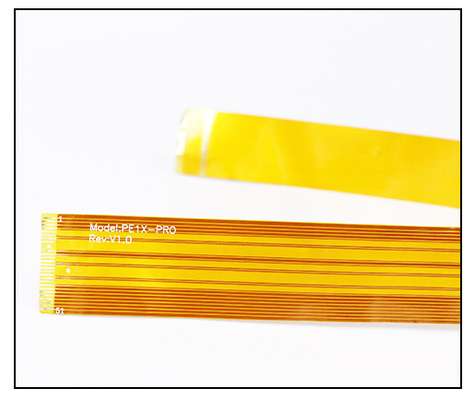

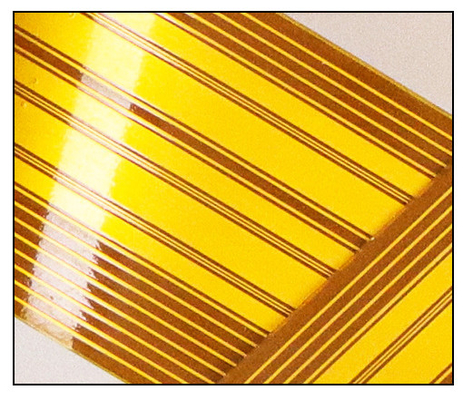

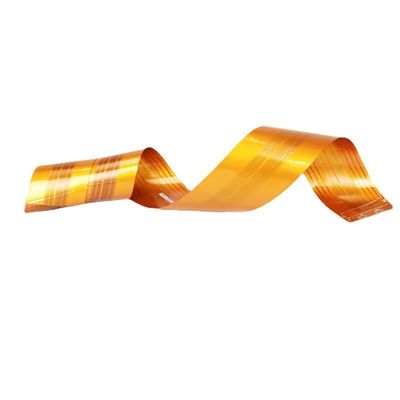

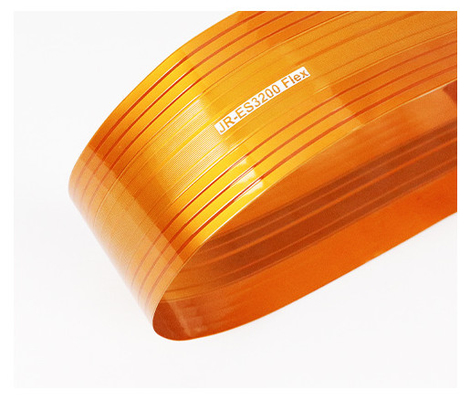

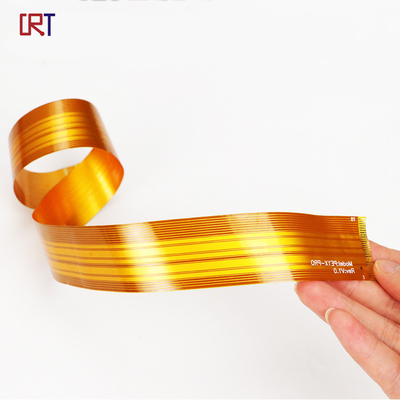

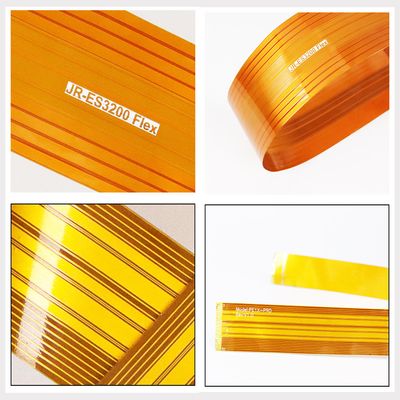

Product Image:
FAQ
1:What service do you have?
We provide turnkey solution including RD, PCB fabrication, SMT, plastic injection & metal, final
assembly,testing and other value-added service.
2:What are the main products of your PCB/PCBA services?
Our PCB/PCBA services are mainly for the industries including Medical, Automotive, Energy, Metering/Measurements, Consumer Electronics.
3:Is CRT a factory or trade company?
CRT is a factory with PCB and SMT assembly factories in both China.
Q4:Can we inspect quality during production?
Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process and check in house.
Q5:How can we ensure our information should not let third party to see our design?
We are willing to sign NDA effect by customer side local law and promising to keep customers
data in high confidential level.
Q6:Do you have any minimum order quantity (MOQ) requirement?
No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
