OEM FR4 SMT FPC Assembly Custom Rigid Flexible PCB Manufacturer
| Place of Origin | Guangdong,china |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL |
| Model Number | CRT-FPC-037 |
| Minimum Order Quantity | 10pieces |
| Price | $5.55/pieces 10-999 pieces |
| Packaging Details | Vacuum packaging + moisture + humidity card |
| Delivery Time | 5 |
| Supply Ability | 1000000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Substrate Material | Polyimide | Copper Thickness | 1OZ |
|---|---|---|---|
| Plate Thickness | 0.15 | Minimum Aperture | 0.1 |
| Minimum Line Width | 4mil | Surface Treatment | Immersion Gold, OSP, HASL,Immersion Gold, Immersion Tin Etc |
| Highlight | FR4 SMT FPC Assembly,IATF16949 SMT PCB Assembly,OEM FR4 Rigid flexible PCB |
||
Product Description
OEM FR4 SMT FPC Assembly Custom Rigid Flexible PCB Manufacturer
Oem Custom Rigid-flexible PCB Manufacturer Fr4 Rigid Flex PCB Flexible PCB Assembly SMT
Our Advantages:
- We have 16 years experience, Professional PCBA manufacturing factory, One-stop service from bare PCB to finished product.
- IATF16949, ISO9001, ISO14001,94v-0,CE,SGS,FCC,RoHS,UL and other Certifications
- We chn reply within 30 minutes, Response in 2-hour for engineering, 24-hour technical support
- IPC-A-610E standard,E-test,X-ray,AOI test,QC,100% functional test.
SMT Assembly / PCBA Assembly:
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly (To short the lead time, please kindly advise us if there is any acceptable components substitution.)
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary
FPC Manufacturing capablityn:
| Copper thickness of lamination | 1/3 ~ 1oz |
| Product board tickness | 0.036 ~ 2.5mm |
| Auto-cutting accuracy | 0.075mm / 6.5mm / ±0.025mm |
| Min percent for CNC slot length and width | 2:01:00 |
| Accuracy of pattern to pattern | ±3mil ( ±0.075mm) |
| Accuracy of pattern to hole | ±4mil ( ±0.1mm ) |
| Min line width/space | 0.045 /0.045 |
| Etching tolerance | ±20%(±0.02mm) |
Application and Development of Rigid Flexible PCB:
CRT has been developing and manufacturing Rigid-Flex PCB since 2010 and has become a Rigid-Flex PCB manufacturer. At present, CRT can mature Manufacturing Rigid-Flex PCB used in automobiles, medical, industrial, and consumer electronics (headphones, mobile phones, e-cigarettes), and can also assist customers in Rigid-Flex PCB design,and CRT has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop turnkey services, including pcb manufacture, assembly, components sourcing and function testing.

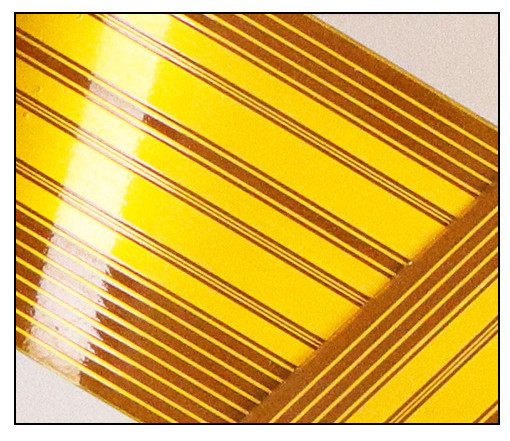

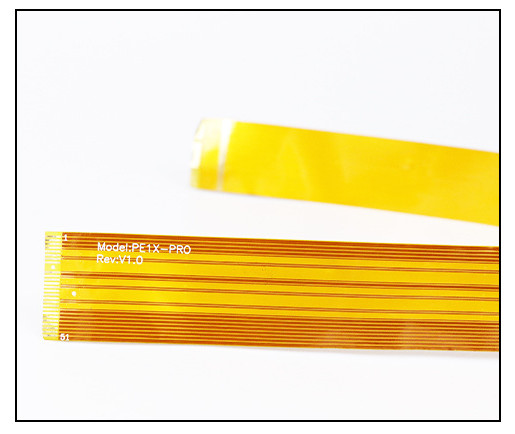

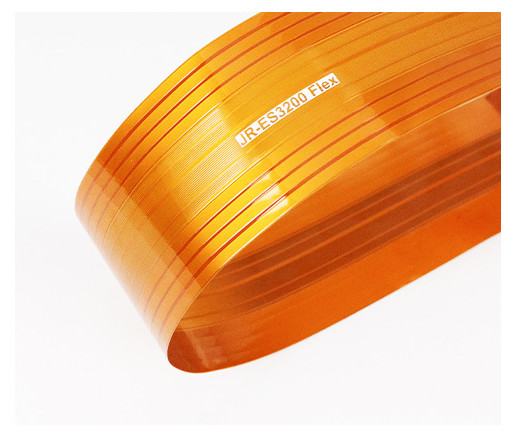

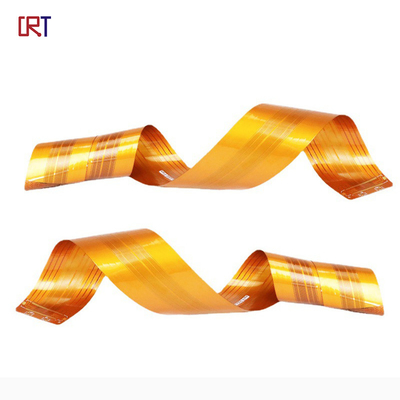

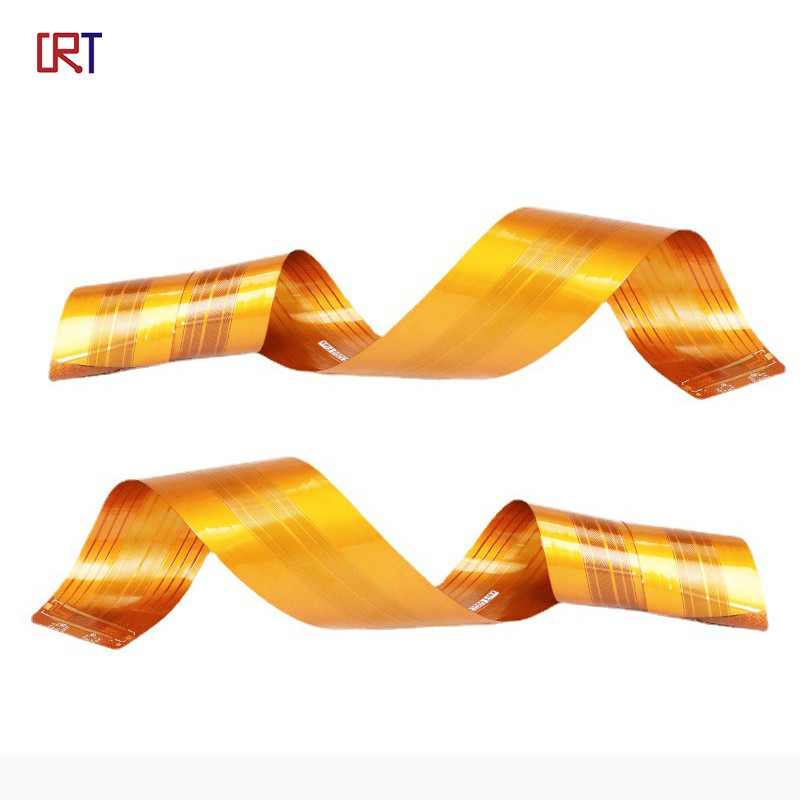

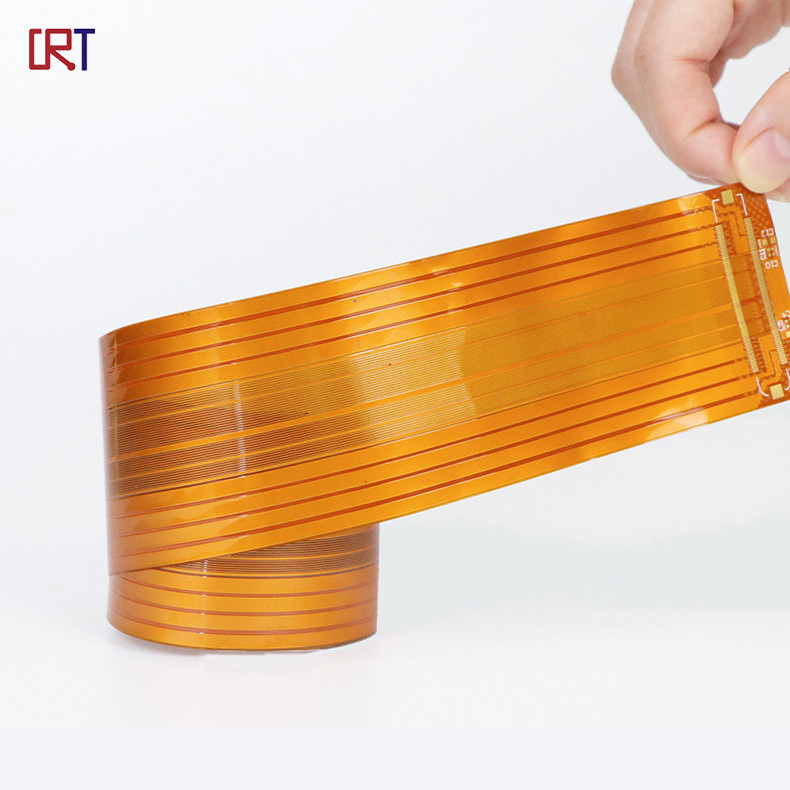

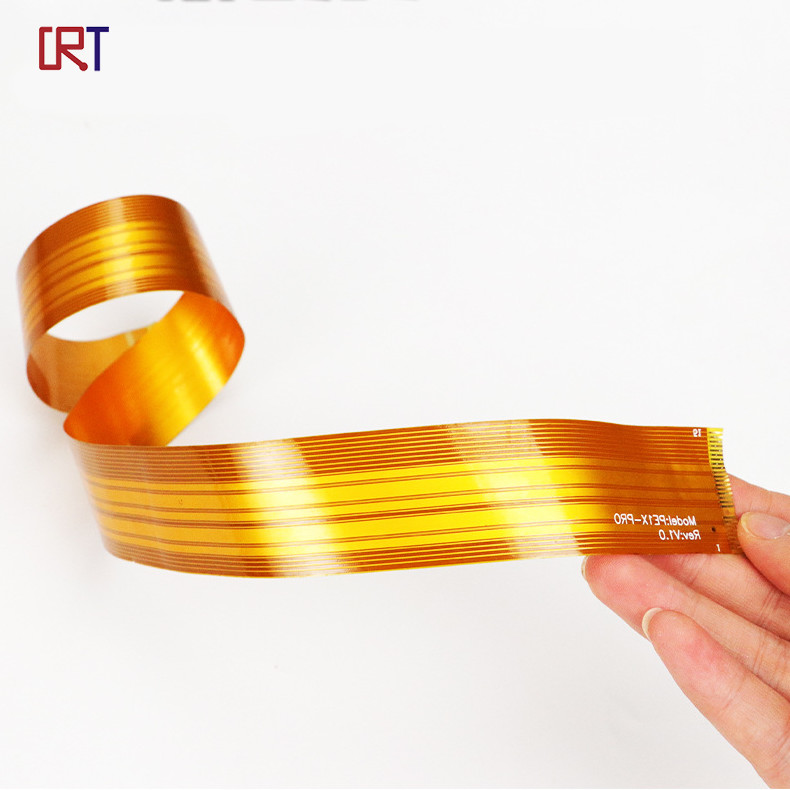

Product Image:
FAQ
1:What service do you have?
CRT: We provide turnkey solution including RD, PCB fabrication, SMT, plastic injection & metal, final assembly,testing and other value-added service.
2:What are the main products of your PCB/PCBA services?
CRT: Our PCB/PCBA services are mainly for consumer electronics, medical, automotive, energy, metering/measurement and other industries.
3:Is CRT a factory or trade company?
CRT: CRT is a factory with PCB and SMT assembly factories in both China.
4:How can we guarantee quality?
CRT: Alaways a pre-production sample befeore mass productiom.Always final Inspection before shipment.
5:What can you buy from us?
CRT: PCB,FPC,Regid-flex,Thick Film PCB,PCBA .
6:What services can we provide?
CRT: Accepted DeliveryTerms:FOBCIF.EXWFCA.DDU:
Accepted Pavment Currency:USD.EUR.CNY:
Accepted Payment Type:T/TL/C.Credit Card.PayPalWestern Union.Cash
Tell us your requirement about the FAQ by CLICKING HERE, so that we can provide solution to save your budget and meet your need!
