3oz Multi Layer Fr4 Pcb Assembly Smt Odm Oem Service
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001,IATF16949,ISO14001 |
| Model Number | CRT-DC-027 |
| Minimum Order Quantity | 50 Pieces |
| Price | USD 0.2~0.6/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 14 |
| Payment Terms | T/T |
| Supply Ability | 500000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | FR4 PCB | Product Type | OEM EMS |
|---|---|---|---|
| Service | Turnkey Service | PCB Packing | Custom Carton Package |
| Solder Mask Color | Blue.black.green.yellow.etc | PCB Assembly Process | DIP. SMD |
| Highlight | 3oz fr4 pcb assembly,multi layer fr4 pcb assembly,custom pcb smt assembly |
||
Product Description
Multilayer PCB Assembly Service PCBA Manufacturer Provide SMT ODM OEM Service
SMT Production Process:
- Components checking
- Solder paste printing
- Pick & place SMD parts
- Reflow soldering
- Flipping
- Pick & place SMD parts
- THT components placement
- Wave soldering(hand soldering)
- AOI checking/X-ray
- Visual inspection(repairing)
- QC/ package
- Delivery
Specification:
|
Multilayer PCB
|
Special Tech
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
1.Impedance
2.Via Filling 3.PFH,Backdrill 4.Mix Finishes 5.Cave 6.heatsink 7.ENEPIG |
|
Layer Count:
|
4~50L
|
|
|
Material:
|
FR4 (Tg130~Tg170)
|
|
|
Board Thickness(mm):
|
0.6mm~10.0mm
|
|
|
Copper Thickness(oz):
|
Hoz~3oz
|
|
|
Size(mm):
|
5mm~1200mm
|
|
|
Min. LW/LS(mm):
|
0.1/0.1
|
|
|
Min. Hole(mm):
|
0.25
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, White...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
Certificate:
|
RoHS/ISO9001/ISO14001
|
|
|
Service:
|
OEM / DFM
|
|
Service from CRT:
- Professional test(detect): all the products are required to pass multiple automatic tests, to ensure the reliability of prodct performance.
- Strict quality contro: devices and materials are purchased from famous brands bother locally and abroad to ensure the quality
- Fine processing: the whole process adopts automatic production equipment(SMT DIP)
- Quick sample: we have experienced R&D team, providing one-stop service. Usually samples will be delivered within 7 days

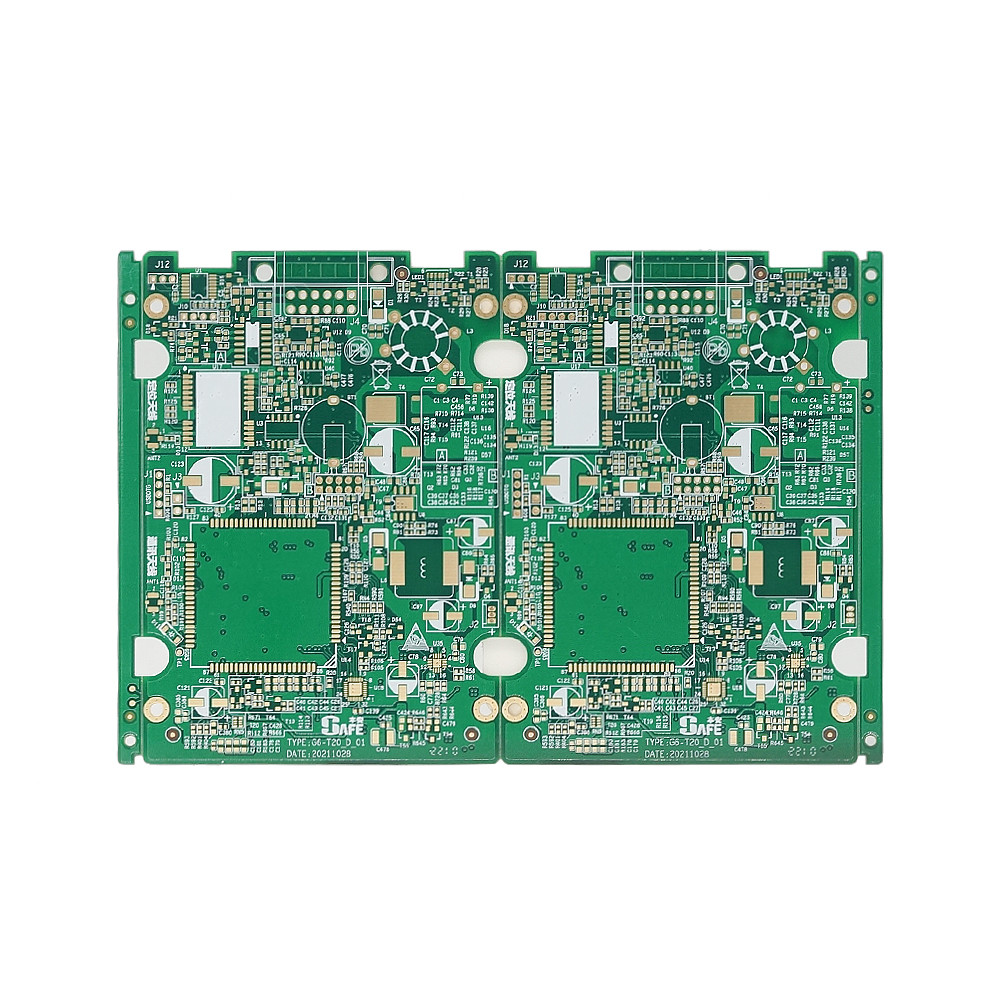

Product Image:
