SMT 0.2mm Prototype Pcb Assembly Customized Printed Circuit Board Fabrication Service

  • SMT 0.2mm Prototype Pcb Assembly Customized Printed Circuit Board Fabrication Service
Place of Origin China
Brand Name CRT
Certification ISO9001/ISO14001/IATF16949
Model Number CRT-PPA-012
Minimum Order Quantity 1 piece
Price USD 1.32 ~ USD2.12/piece
Packaging Details Vacuum package+Carton box
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 50000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PCB Max Size 555x455mm PCB Min Size 30x30mm
PCB Min Thickness 0.2mm Min Gap 0.5mm
Min BGA 0.2mm Max Component Size 55mmx55mmx15mm
Highlight

smt prototype pcb assembly

,

0.2mm prototype pcb assembly

,

0.2mm pcb prototype service
Leave a Message
Product Description

Customized Printed Circuit Board Fabrication Prototype PCB Assembly Service



What Makes Us Special:

  • Nearly 20 years experience: Stroing design team from many fields
  • Analog/Digital: Various design skills to ensure stable product performance
  • PCB layout: Experienced engineering team in various PCB design techniques
  • Firmware development: Various programing platform experience with many chip families

Specification:

Process Capability We provide the following services
PCB maximum size 550x450mm

1. HDI PCB samples, mass production/ PCBA samples, mass production


2. SMT chip processing


3. Plugin processing


4. After welding


5. PCBA semi-finished product production


6. Machine assembly
PCB minimum size 30x30mm
PCB minimum thickness 0.2mm
PCB shape Unlimited
Whether to support single-sided/double-sided Yes
Minimum component size 201
Component height 0.2-25mm
Minimum gap 0.5mm
Minimum BGA 0.2mm
Maximum component size 55mmx55mmx15mm
SMT patch part type SOP, SOT, QFN, QFP, BGA, Bonding
Is it possible to mount the connector Yes
Whether it can be wave soldered Yes



Electronic Design Process Details:

  • Specifications: Ensuring a thorough & complele understanding of the design equipments
  • Proposal: Generate an accurate proposal with clear project timeline & milestons
  • Concept design: Staring with top level design blocks, with supporting sketches for the key concepts and verified aspects of the design
  • Circuit design: Schematics are generated and kept in coherence with the design specs all the time untill the pcb layout phase is started afterwards
  • PCB layout: after schematics are confirmed, we rely on our team's extensive experience to use the correct PCB layout techniques in order to guarantee the board will work reliably in the field
  • Prototyping: We produce a fast turn-around PCB prototypes for design testing and verification
  • Approved: After a certain rounds of prototypes with each is extensively tested, we can get to PCB approval with customer and we can move into the production phase

Product Image:

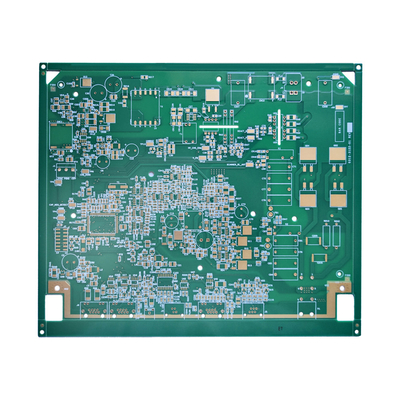

SMT 0.2mm Prototype Pcb Assembly Customized Printed Circuit Board Fabrication Service 0

Tags:

FR4 Prototype PCB Assembly

IS014001 Prototype PCB Assembly

IATF16949 Quick PCB Fabrication
