One Stop Service Fr4 Pcb High Demand 0.2-7.0mm Double Size Odm 1-6oz
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | CRT |
| Certification | UL/ISO14001/TS16949 |
| Model Number | CRT-DP-002 |
| Minimum Order Quantity | 1 Pieces |
| Price | 0.25$-0.3$/pc |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 18 working days |
| Payment Terms | T/T |
| Supply Ability | 500000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 2 Layers Pcb | Color | Green |
|---|---|---|---|
| Silk Screen | White | Surface Finish | LF HASL, OSP |
| Base Material | FR4, High TG FR4 | Minimum Order Quantity | 1pcs |
| Finised Inner/outer Copper Thickness | 1-6OZ | Finished Board Thickness | 0.2-7.0mm |
| Min Hole Size | Mechanical Hole: 0.15mm Laser Hole: 0.1mm | Plugging Vias Capability | 0.2-0.8mm |
| Highlight | one stop service fr4 pcb,double size fr4 pcb,6oz fr4 board |
||
Product Description
FR4 CEM3 Double Sided PCB Assembly PCBA Board Printing Circuit Board
Specification:
| Double Side PCB | Special Tech. | |
| Place of Origin: | China | 1.Countersink; 2.Carbon; 3.Peelable mask; 4.Step Routing 5.Mixed finishes 6.ENEPIG |
| Brand Name: | CRT | |
| Application Segment: | Auto,Industrial,Medical,DataCom,Comsumer | |
| Layer Count: | ||
| Material: | FR4 (Tg130~Tg170) | |
| Board Thickness(mm): | 0.2mm~3.0mm | |
| Copper Thickness(oz): | Hoz~3oz | |
| Size(mm): | 5mm~1500mm | |
| Min. LW/LS(mm): | 0.1/0.1 | |
| Min. Hole(mm): |
Mechanical hole: 0.15mm Laser hole: 0.1mm |
|
| Solder Mask: | Green, Yellow, Blue, Black, White... | |
| Surface Finish: | ENIG,OSP,HASL,Imm Tin,Imm Silver... | |
| Outline profile | Rout/ V-cut/ Bridge/ Stamp hole | |
| Service: | OEM / DFM | |

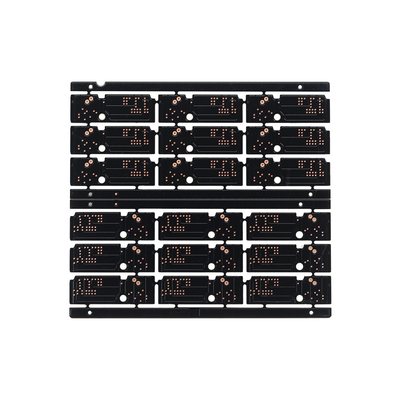

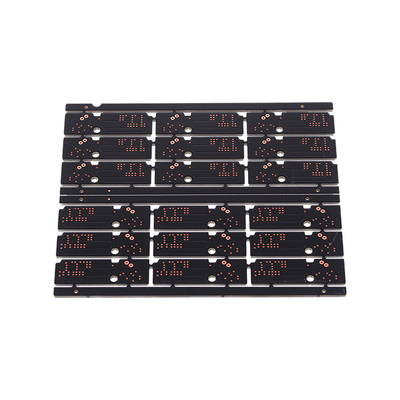

Product Image:
Certificates
UL Underwriter Laboratories Certificate
ISO9001 Quality System Certificate
ISO14001 Environment System Certificate
IATF16949 Automotive Certificate
ISO13485 Medical Certificate
TL9000 Telecom Certificate
CIT Certificate of IPC Trainer IPC
Our services
1. PCB Manufacturing
2. OEM service
3. Gerber file needed
4. Full-Inspection and Test
5. SMT & DIP Assembly
Why choose us?
Our Advantage:
1.Support customized
- A gobal independent distributors of electronic components
- Welcome OEM, ODM.
- A variety of channels to satisfy various demands
Most of them are in stock with very competitive price
2. Quality:
- Original :100% new and original factory packing. Rohs. No bulk, no refurbish, no obsolete.
3. For the faulty:
- Firstly, products are produced in strict quality control system by manaufacturer .
- For some defective batch products, we will send them to factory and resend them to you or we can discuss the real situation.
FAQ
Q1.What is needed for PCB PCBA quotation?
A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for PCB PCBA production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
Q4. MOQ?
A: There is no MOQ in POE.We are able to handle Small as well as large volume production with flexibility.
Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
