1L 4L TPS Ceramic PCB Board Reverse Engineering Clone PCBA Service
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL |
| Model Number | CRT-Thickfilm PCB-003 |
| Minimum Order Quantity | 10 Pieces |
| Price | USD 0.1~1.5/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 14 |
| Payment Terms | T/T |
| Supply Ability | 1000000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Ceramic Thickfilm PCB | Layer Count | 1-4Laye |
|---|---|---|---|
| Matierial | FR4,Ceramic,Rogers,Polyimide PI,Polyester | Board Thickness | 0.1mm~3.0mm |
| Copper Thickness | 0.33oz~2oz | Solder Mask | Green, Yellow, Blue, Black, White... |
| Surface Treatment | ENIG,OSP,Imm Tin,Imm Silver... | Certification | ISO9001,ISO14001,IATF16949,UL |
| Product Type | PCB&PCBAOEM,DFM | Application | Auto,Industrial,Medical,DataCom,Comsumer |
| Highlight | TPS Ceramic PCB Board,4L Ceramic PCB Board,4L SMT PCB Assembly |
||
Product Description

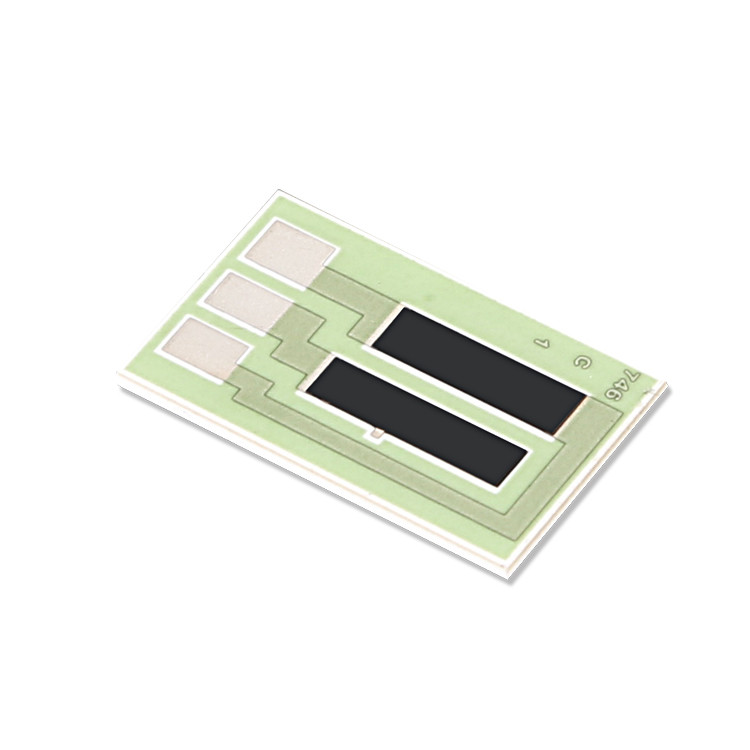

1L 4L TPS Ceramic PCB Board Reverse Engineering Clone PCBA Service
ceramic pcb boar Reverse Engineering Clone Pcba,Receiver Wireless Charger sensor TPS High Voltage High Watt Resistor Pcb
Quality & OTD Target
◎ Quality goal for rate of complaint
≤0.1% by batch,
≤200PPM by quantity;
≤50PPM by quantity (Auto);
◎ The rate of total internal scrap: FPC≤3.0%;
◎ The rate of delivery on time:
≥95% for normal FPC,
100% for automotive FPC.
◎ Quick Turn delivery
Prototype : Fastest 48 hours to seven days
Mass Production: Fastest 5 to 14 days
Certificates
UL Underwriter Laboratories Certificate
ISO9001 Quality System Certificate
ISO14001 Environment System Certificate
IATF16949 Automotive Certificate
ISO13485 Medical Certificate
TL9000 Telecom Certificate
CIT Certificate of IPC Trainer IPC
Thickfilm PCB Application
1. Applications in automotive electronics:
(1). Ignition module: used to start the motor
(2). Voltage regulator module (Voltage regulator): for generators
(3). Idle Motor Module: Idle Motor Control
(4). Thick film resistor for fuel level: Both cars and locomotives
(5). Thick film current limiter: for fan motor current limiter (Blower resistor)
(6). Mass Air Flow Sensor
(7). Various types of thick film printed circuit boards:
● Throttle valve control (TPS)
● Clutch switch (Rotary position sensor)
● Wiper motor speed adjustment
Body Balance (ALS)
● Accelerator pedal PCB
● Dashboard temperature control, lighting adjustment...etc
2. Industrial control/communication and defense industry applications:
(1). Signal conversion
(2). Frequency converter/motor control
(3). Industrial control
(4).Precision resistance
(5). Anti-lightning resistance
(6). High voltage/high watt resistance
(7). Accept customer entrusted design
Specification:
|
|||||||||||||||||||||||||||||||||||||
Product Image:
Core Advantages:
1. Advanced equipment:
Introduce the most advanced automatic production equipment for high-end printed circuit boards to meet the high-quality, leading design and flexible requirements. Provide quick turn, prototype, high mix low volume to mass production service.
2. Strong team:
We have the best technical elites. The key members are senior engineers from top PCB & EMS companies in the industry (such as TTM, Elec&Eltek, Foxconn...), with 10+ years experience; and very familiar with FPC, PCB, Rigid-flex and other special boards. Can provide free DFM assessment and cooperate closely to ensure the smoothness of customer design to production.
3. Reliable quality:
The IPQC will be set in the whole process and each step, to ensure that the PCB could pass the UL, ISO9001, TS16949, CQC and so on certificates. The finished products will also be subject to 200% inspection to ensure that each piece is produced according to European standards.
4. High quality service:
1-hour quick response, 4-hour quotation, 24-hour online customer service, more timely handling of emergencies, proactive customer return visit and service, so that you can enjoy more intimate after-sales service. For each customer, we will assign a project manager to follow up, to ensure the smooth transformation and delivery from samples to mass products.
Multilayer Circuit Board
Double Sided PCB is the middle layer of medium, and both sides are wiring layers. Multilayer PCB is a multi-layer wiring layer. Between every two layers is a dielectric layer. The dielectric layer can be made very thin. Multilayer PCB has at least three conductive layers, two of which are on the outer surface, and the remaining layer is integrated into the insulating board. The electrical connection between them is usually achieved through plated through holes on the cross section of the circuit board.
