OEM ODM Double Sided Ceramic PCB Board Prototype Design Service
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/ISO14001/IATF16949 |
| Model Number | CRT-TC-001 |
| Minimum Order Quantity | 1 pcs |
| Price | USD1.04~2.35/pcs |
| Packaging Details | Vacuum package+Carton box |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 500000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layer Count | 1-4L | Matierial | CEM-1,CEM-3 FR5 |
|---|---|---|---|
| Board Thickness | 0.2mm~3.0mm | Copper Thickness | 0.33oz~2oz |
| Size | 2mm~200mm | Certification | ISO9001/ISO14001/IATF16949/UL |
| Highlight | Double Sided Ceramic PCB Board,ODM Ceramic PCB Board,ODM Double Sided PCB Board |
||
Product Description
OEM ODM Double Sided Ceramic PCB Board Prototype Design Service
Prototype Ceramic Substrate Double Sided PCB Board Manufacturing PCB Service
RoHS management:
Product compliant: RoHS
RoHS prohibited substances list :
NO. Name The upper limit(ppm=mg/kg)
1. Pb 0.1%(1000ppm)
2. Hg 0.1%(1000ppm)
3. Cd 0.001%(100ppm)
4. Cr VI+ 0.1%(1000ppm)
5. PBB 0.1%(1000ppm)
6. PBDE 0.1%(1000ppm)

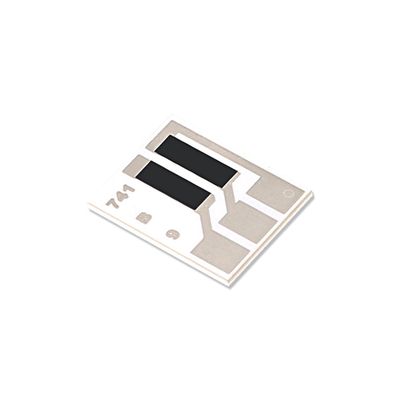

Product Image:
Specification:
| Ceramic PCB | Special Tech. | |
| Place of Origin | China |
1.Silver Circuit
|
| Brand Name | CRT | |
| Application Segment | Auto,Industrial,Medical,DataCom,Consumer | |
| Layer Count | 1-4L | |
| Material | Ceramic, SUS, Glass | |
| Board Thickness | 0.2mm~3.0mm | |
| Copper Thickness | 0.33oz~2oz | |
| Size | 2mm~200mm | |
| Min. LW/LS(mm) | 0.2/0.2 | |
| Min. Hole(mm) | 0.2 | |
| Solder Mask | Green, Black, White... | |
| Surface Finish | ENIG,OSP,Imm Tin,Imm Silver... | |
| Certificate | RoHS/ISO9001/ISO14001 | |
| Service | OEM / DFM | |
Quality System:
1. ISO-9001 Quality System Standard
2. Quality Standard: IPC-610-D class 2,
3. Soldering Standard: J-STD-001 class 1,2,3
4. ESD Standard: ESD-MIL-STD-1686
5. Workshop management:5S
6. FAI-first article inspection
7. In process visual inspection
8. AOI inspection
9. Machine calibration and preventative maintenance
10. ERP material and process management ( ERP=enterprise resource planning computer system)
