OEM Multilayer 4L 48L Custom Circuit Board Assembly Services
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001 |
| Model Number | CRT-DC-015 |
| Minimum Order Quantity | 20 Pieces |
| Price | USD 0.15~1.5/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 14 |
| Payment Terms | T/T |
| Supply Ability | 1000000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | FR4 PCB | Board Thickness | 0.6~10.0mm |
|---|---|---|---|
| Layer Count | 4L 48L | Matierial | FR4 Tg130 Tg170 |
| Product Type | OEM PCB Mannufacturer | Solder Mask | Green, Yellow, Blue, Black, White... |
| Surface Treatment | ENIG,OSP,HASL,Imm Tin,Imm Silver... | Certificates | ISO9001,ISO14001,IATF16949 |
| Highlight | 48L Custom Circuit Board Assembly,4L Custom Circuit Board Assembly,4L PCB Component Assembly |
||
Product Description
OEM Multilayer 4L 48L Custom Circuit Board Assembly Services
PCB Manufacturer PCBA Assembly Service Custom Circuit Board FR4 94V0 Multilayer Keyboard PCB
PCB Assembly Process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
Certificates
UL Underwriter Laboratories Certificate
ISO9001 Quality System Certificate
ISO14001 Environment System Certificate
IATF16949 Automotive Certificate
ISO13485 Medical Certificate
TL9000 Telecom Certificate
CIT Certificate of IPC Trainer IPC
Specification:
|
Multilayer PCB
|
Special Tech
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
1.Impedance
2.Via Filling 3.PFH,Backdrill 4.Mix Finishes 5.Cave 6.heatsink 7.ENEPIG |
|
Layer Count:
|
4~48L
|
|
|
Material:
|
FR4 (Tg130~Tg170)
|
|
|
Board Thickness(mm):
|
0.6mm~10.0mm
|
|
|
Copper Thickness(oz):
|
Hoz~3oz
|
|
|
Size(mm):
|
5mm~1200mm
|
|
|
Min. LW/LS(mm):
|
0.1/0.1
|
|
|
Min. Hole(mm):
|
0.25
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, White...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
Certificate:
|
RoHS/ISO9001/ISO14001
|
|
|
Service:
|
OEM / DFM
|
|
Business content
1. One-stop service
2. OEM service
3. Gerber file needed
4. PCB clone with sample
5. Quality guarantee and professional after-sell service
1: How can you ensure the quality of the keboard PCB
Our PCBs are 100% test including Flying Probe Test,E-test and AOI.
2:Advanced technology
min/T/G:3/3 mil
Impedance control ±10%
MAX aspect ratio for board thickness vs drill bit size 15:1
surface treatment :HASL, Gold plating, Immersuin gold, Immersuin tin, Immersion silver, Gold fingers, OSP
3: Advanced equipment
| Solder Paste Jet | X-RAY | AOI |
| Wave Soldering | Reflow | X-RAY Counter |
| Surface Mount Machine | On-line AOI | MY-500 |
| SPI |
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

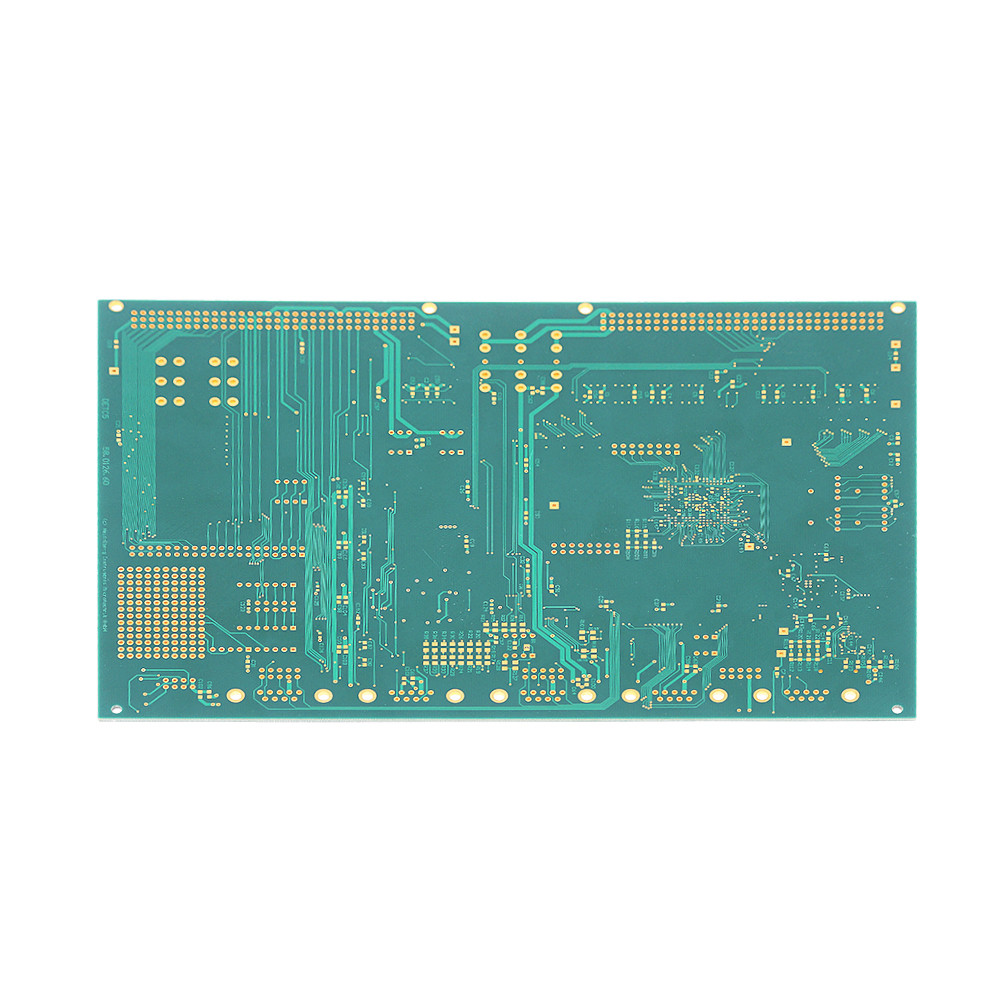

Product Image:
