0.6mm 10mm Multilayer PCB Assembly Electronic Board Printing Machine
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001 |
| Model Number | CRT-DC-019 |
| Minimum Order Quantity | 20 Pieces |
| Price | USD 0.12~1.5/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 14 |
| Payment Terms | T/T |
| Supply Ability | 1000000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Printed Circuit Board | Board Thickness | 0.6~10.0mm |
|---|---|---|---|
| Layer Count | 4-48L | Matierial | FR4 (Tg130~Tg170) |
| Product Type | OEM PCB Mannufacturer | Solder Mask | Green, Yellow, Blue, Black, White... |
| Surface Treatment | ENIG,OSP,HASL,Imm Tin,Imm Silver... | Certificates | ISO9001,ISO14001,IATF16949 |
| Highlight | 10mm Multilayer PCB Assembly,0.6mm Multilayer PCB Assembly,Electronic Board Assembly |
||
Product Description
0.6mm 10mm Multilayer PCB Assembly Electronic Board Printing Machine
New Electronic Products 2022 Electronic Board Assembly Machine Electronic Board Printing Machine Pcb Making Machines
What do we need for PCB or PCBA quotation?
PCB: Gerber files/PCB files, Quantity, Board processing details( board material, thickness, copper thickness, surface treatment, color of solder mask and silkscreen)
PCBA: Above PCB info, BOM with components specs, testing doc if you have
Certificates:
1. UL Underwriter Laboratories Certificate
2. ISO9001 Quality System Certificate
3. ISO14001 Environment System Certificate
4. IATF16949 Automotive Certificate
5. ISO13485 Medical Certificate
6. TL9000 Telecom Certificate
7. CIT Certificate of IPC Trainer IPC
Specification:
|
Multilayer PCB
|
Special Tech
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
1.Impedance
2.Via Filling 3.PFH,Backdrill 4.Mix Finishes 5.Cave 6.heatsink 7.ENEPIG |
|
Layer Count:
|
4~50L
|
|
|
Material:
|
FR4 (Tg130~Tg170)
|
|
|
Board Thickness(mm):
|
0.6mm~10.0mm
|
|
|
Copper Thickness(oz):
|
Hoz~3oz
|
|
|
Size(mm):
|
5mm~1200mm
|
|
|
Min. LW/LS(mm):
|
0.1/0.1
|
|
|
Min. Hole(mm):
|
0.25
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, White...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
Certificate:
|
RoHS/ISO9001/ISO14001
|
|
|
Service:
|
OEM / DFM
|
|
Business content
1. One-stop service
2. OEM service
3. Gerber file needed
4. PCB clone with sample
5. Quality guarantee and professional after-sell service
1: Best raw materials
High TG, FR4, high frequency(Rogers,Teflon, ARLON, TYCONIC), Halogen-free
2:Advanced technology
min/T/G:3/3 mil
Impedance control ±10%
MAX aspect ratio for board thickness vs drill bit size 15:1
surface treatment :HASL, Gold plating, Immersuin gold, Immersuin tin, Immersion silver, Gold fingers, OSP
3: Advanced equipment
| Solder Paste Jet | X-RAY | AOI |
| Wave Soldering | Reflow | X-RAY Counter |
| Surface Mount Machine | On-line AOI | MY-500 |
| SPI |
Do we have MOQ?
There is no MOQ in CRT. We are able to produce Small volume as well as large volume production with flexibility.

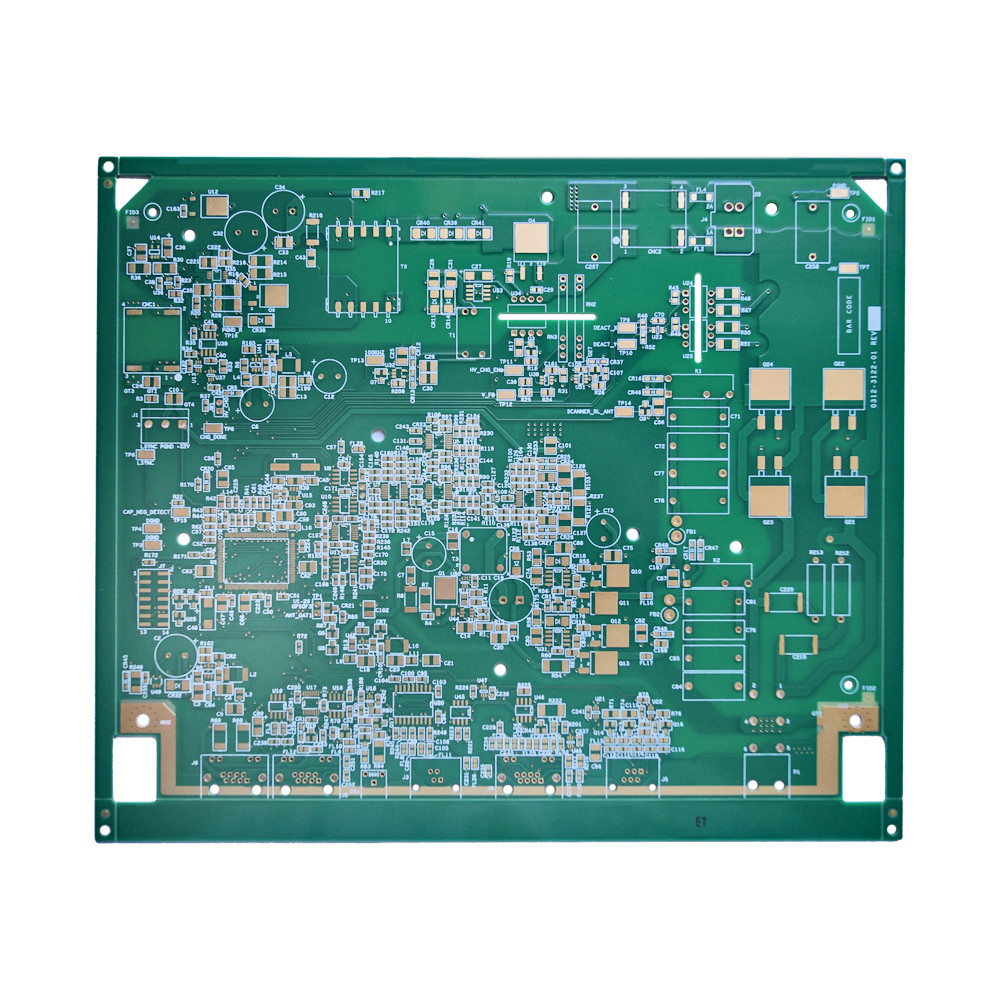

Product Image:
