2L 12L FPC Assembly For Auto Industrial Consume Medical Device

  • 2L 12L FPC Assembly For Auto Industrial Consume Medical Device
Place of Origin China
Brand Name CRT
Certification ISO9001/IATF16949/ISO14001
Model Number CRT-flex-003
Minimum Order Quantity 10 Pieces
Price USD 1~5/Piece
Packaging Details Vacuum package+Carton
Delivery Time 15
Payment Terms T/T
Supply Ability 1000000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type FPC Matieria PI&PTFE
Layer Count 2L-12L Board Thickness 0.05mm~0.5mm
Copper Thickness 0.33oz~3oz Service One-stop PCB/PCBA Supplie/ OEM,DFM
Application Segment Auto,Industrial,Medical,DataCom、Consume Certificates ISO9001,ISO14001,IATF16949
Highlight

12L FPC Assembly

,

2L Medical Device PCB

,

12L Flexible Printed Circuit Board
Leave a Message
Product Description

2L 12L FPC Assembly For Auto Industrial Consume Medical Device



Auto Industrial Medical DataCom Comsume Flexible Printed Circuit Board FPC Assembly Manufacturer Medical Device Flex PCB



Specification:

HDI PCB Special Tech.
Place of Origin: China 1.Impedance
2.Via Filling
3.PFH,Backdrill
4.Mix Finishes
5.Cave
6.heatsink
7.Countersink
8.Hybrid Stackup
9.ENEPIG
Brand Name: CRT
Application Segment: Auto,Industrial,Medical,DataCom,Comsumer
Layer Count: 2~24L Anylayer
Material: FR4 (Tg150~Tg170)
Board Thickness(mm): 0.4mm~3.0mm
Copper Thickness(oz): 0.33oz~2oz
Size(mm): 5mm~500mm
Min. LW/LS(mm): 0.05/0.05
Min. Hole(mm): 0.1
Solder Mask; Green, Yellow, Blue, Black, White...
Surface Finish: ENIG,OSP,HASL,Imm Tin,Imm Silver...
Certificate: RoHS/ISO9001/ISO14001
Service: OEM / DFM



Why Choose us?

'Automated Optical Inspection (AOI) inspection

- In-circuit Testing (ICT) and Function testing

- ROHS Standard ,ISO and UL IPC-600G class 2 and IPC-6012B class 2 standards

- Flying probe test and Electrical test

- X-ray Inspection



Quality & OTD Target

◎ Quality goal for rate of complaint 品质投诉目标

≤0.1% by batch,
≤200PPM by quantity;
≤50PPM by quantity (Auto); )

◎ The rate of total internal scrap: FPC≤3.0%;
◎ The rate of delivery on time:
≥95% for normal FPC,
100% for automotive FPC.

◎ Quick Turn delivery
Prototype : Fastest 48 hours to seven days
Mass Production: Fastest 5 to 14 days



Advantages

- No MOQ

- OEM services provided

- Heavy copper PCB, Heavy gold PCB, Blind / Buried via PCB, High layer count PCB manufacturable

- Factory direct price

- Replying with price in one working day

- Shipping within 24 hours

- Certificate: ROHS, UL, ISO9001-2000, ISO14001,SGS Lead-Free



Product Image:

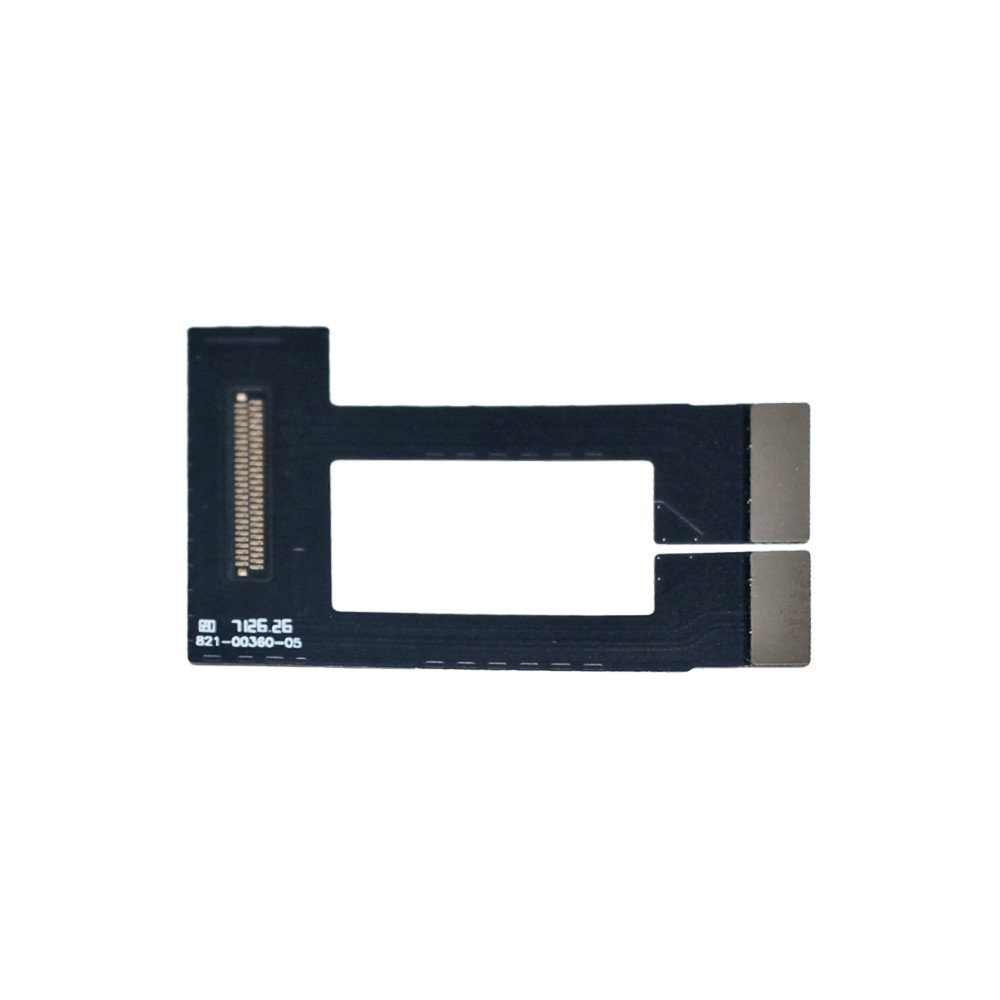

2L 12L FPC Assembly For Auto Industrial Consume Medical Device 0

FAQ

Q1:Are you a factory or trade company?
A: Abis is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBA Board for over 10 years.

Q2: How can I get a quotation?
A: Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber
Q3: Can you manufacture my PCBs from a picture file?
A: Yes, we can copy for you accordingly. Could you please provide a sample via express?

Q4: Do you have PCB in stock?
A: It depends on. Most of our PCB board are customized, which according to Gerber file.
We has samples in stock that could be sent to you for quality checking firstly.

Q5: What is your certificate?
A: ISO9001:2008, ISO14001: 2004, UL, SGS,RoHS report.
Q6: Will my PCB files be checked?
A: Checked within 12 hours. Once Engineer's question and working file be approved, production will start.
