1OZ Copper Arduino Circuit Board Multilayer Assembly 100% E Test
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/TS16949/ISO14001 |
| Model Number | CRT-DC-0016 |
| Minimum Order Quantity | 20 Pieces |
| Price | USD 0.1~1/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 14 |
| Payment Terms | T/T |
| Supply Ability | 5000000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Printed Circuit Board | Layer Count | 3L-28L |
|---|---|---|---|
| Matierial | CEM-1,CEM-3 FR4(Tg130~Tg170) | Solder Mask Color | Green. Red. Blue. White. Black.Yellow |
| Product Type | OEM PCB Factory | PCB Assembly | DIP. SMT PCB Assembly |
| Certificates | ISO9001,ISO14001,IATF16949,UL | Application Segment | Auto,Industrial,Medical,DataCom,Comsumer |
| Highlight | 1OZ Copper Arduino Circuit Board,Multilayer Arduino Circuit Board,1OZ Copper Multilayer Circuit Board |
||
Product Description
1OZ Copper Arduino Circuit Board Multilayer Assembly 100% E Test
Arduin0 Circuit Board Assembly 1OZ Copper Multilayer Rohs Surface Finish PCB Board
About us
Croll Technology Co. Ltd, established in 2016, Located in Shenzhen. Our products are mostly used in the field of Industrial Control, Telecommunication, Automotive products, Medical, Consumer, Security, and others.
Now we have passed ISO9001, ISO14001, UL, etc., With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layers, Blind and buried Board, high-precision(Rogers), High TG, Alu-base and flexible boards to our customer with fast turn and high-quality level.
1. Single, Double side & Multi-layer PCB.
2. Buried/Blind Vias, Via in Pad, Counter Sink Hole, Screw Hole(Counterbore), Press-fit, Half Hole.
3. HASL lead-free, Immersion Gold/ Silver/Tin, OSP, Gold plating/finger, Peelable mask,
4. Printed Circuit Boards adhere to IPC Class 2 & 3 international PCB standard.
5. Quantities range from prototype to medium&big batch production.
6.100% E-Test.
Certificates
UL Underwriter Laboratories Certificate
ISO9001 Quality System Certificate
ISO14001 Environment System Certificate
IATF16949 Automotive Certificate
ISO13485 Medical Certificate
TL9000 Telecom Certificate
CIT Certificate of IPC Trainer IPC
Specification:
|
Multilayer PCB
|
Special Tech
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
1.Impedance
2.Via Filling 3.PFH,Backdrill 4.Mix Finishes 5.Cave 6.heatsink 7.ENEPIG |
|
Layer Count:
|
4~50L
|
|
|
Material:
|
FR4 (Tg130~Tg170)
|
|
|
Board Thickness(mm):
|
0.6mm~10.0mm
|
|
|
Copper Thickness(oz):
|
Hoz~3oz
|
|
|
Size(mm):
|
5mm~1200mm
|
|
|
Min. LW/LS(mm):
|
0.1/0.1
|
|
|
Min. Hole(mm):
|
0.25
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, White...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
Certificate:
|
RoHS/ISO9001/ISO14001
|
|
|
Service:
|
OEM / DFM
|
|
Packaging & Delivery
- PCB: Sealed bag, Anti-static bags, Suitable carton.
- PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.
- Customized Packaging: The carton outside will be printed the name of the customer address, mark, the customer needs to specify the destination and other information.
PCB Material Type
*Copper Cladding Laminate (CCL)Type:
Rigid PCB:
FR1, CEM1, CEM3, FR4 (Tg130, 150, Tg170), BT, Teflon,
FR4 Prepreg Type:
106, 1080, 2113, 2313,
Flexible PCB:
:PET, PN, PI (Adhesive, Adhesive-less)
Copper Foil:
Ed Foil , RA Foil, LP Foil, RT Foil Foil Thickness:
1/8oz(E), 1/4oz(Q), 1/3oz(T), 1/2oz(H), 1oz, 2oz,

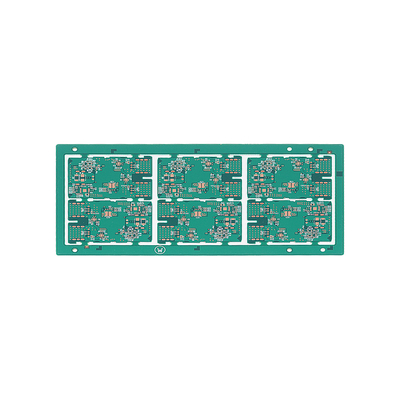

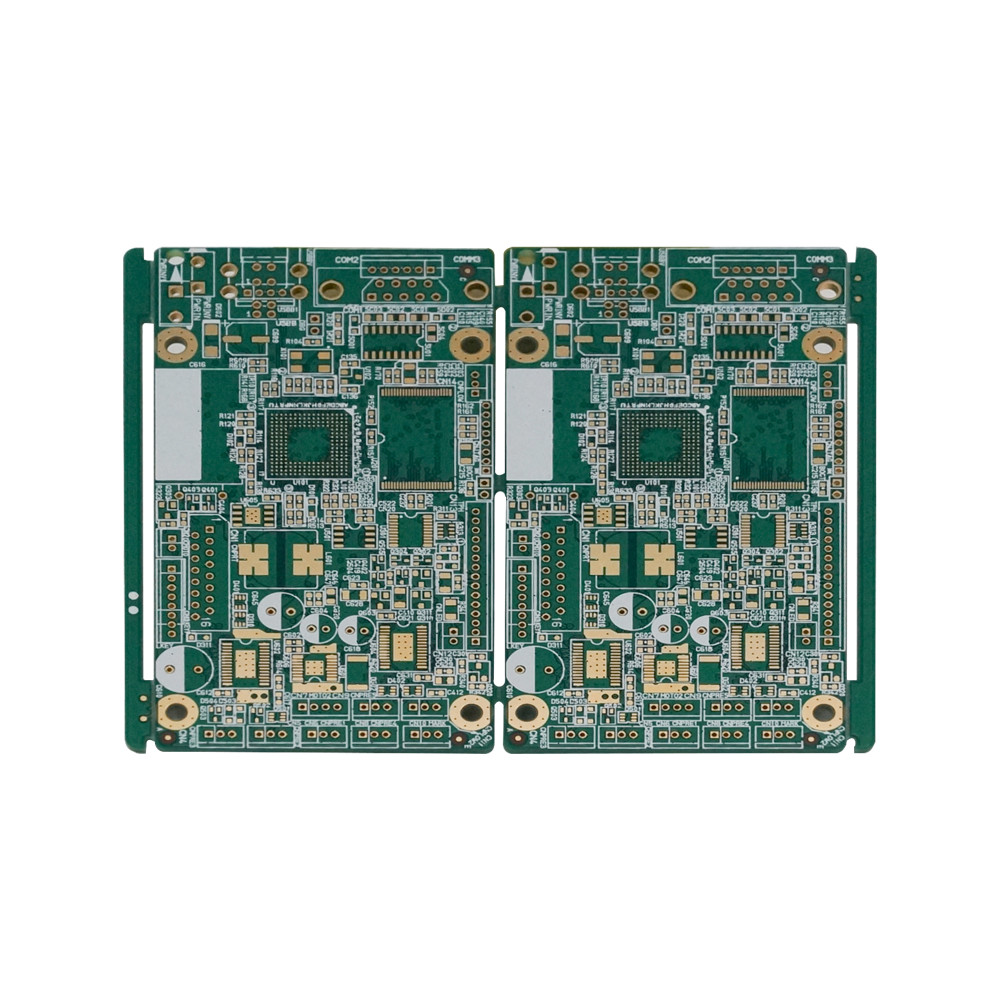

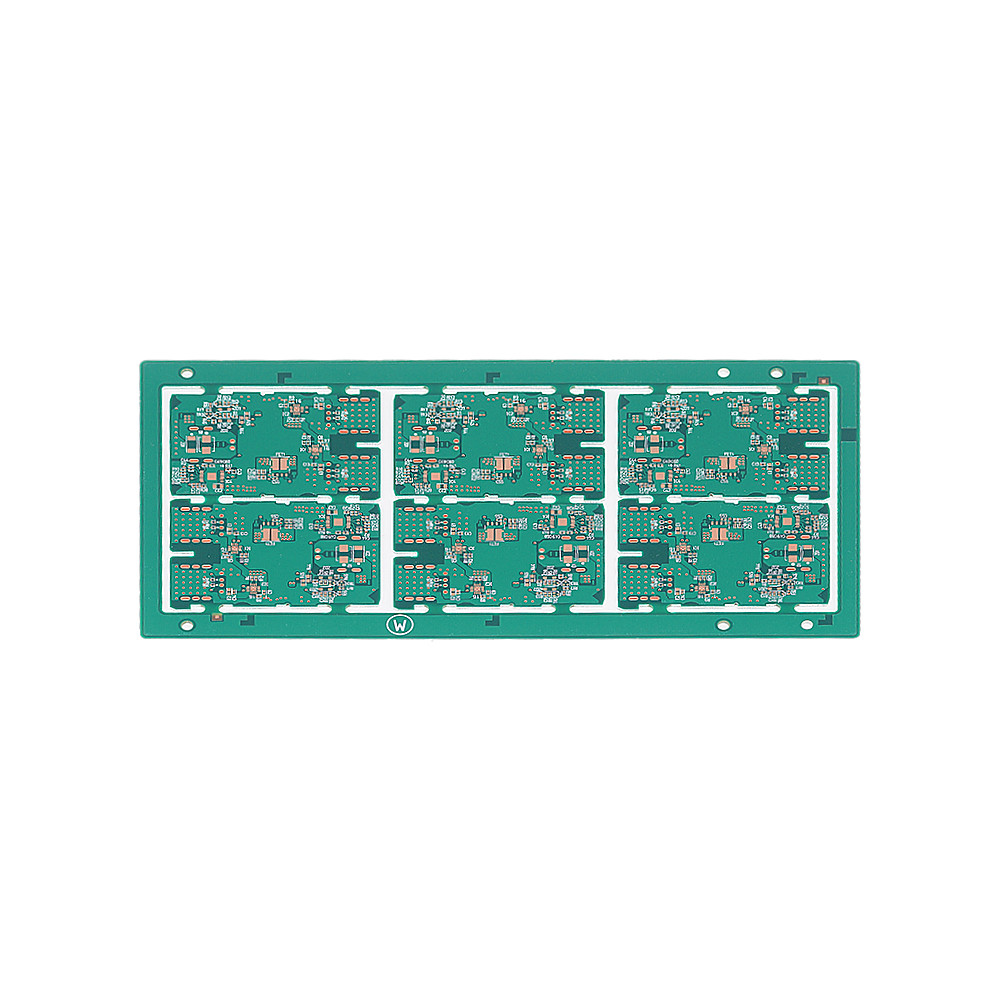

Product Image:
FAQ
Q1:Are you a factory or trade company?
A: Abis is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBA Board for over 10 years.
Q2: How can I get a quotation?
A: Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber
Q3: Can you manufacture my PCBs from a picture file?
A: Yes, we can copy for you accordingly. Could you please provide a sample via express?
Q4: Do you have PCB in stock?
A: It depends on. Most of our PCB board are customized, which according to Gerber file.
We has samples in stock that could be sent to you for quality checking firstly.
Q5: What is your certificate?
A: ISO9001:2008, ISO14001: 2004, UL, SGS,RoHS report.
Q6: Will my PCB files be checked?
A: Checked within 12 hours. Once Engineer's question and working file be approved, production will start.
