FR4 BT Rogers High Frequency PCB Design Quick Turn Prototype Service
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/ISO14001/TS16949 |
| Model Number | CRT-TS-001 |
| Minimum Order Quantity | 100 Pieces |
| Price | USD 0.5~0.8/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 21 |
| Payment Terms | T/T |
| Supply Ability | 500000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | High Speed FR4, BT, Rogers... | Solder Mask | Green, Yellow, Blue, Black, White... |
|---|---|---|---|
| Application | Auto,Industrial,Medical,DataCom,Consumer | Layer | 1~14L |
| Certificate | ISO9001/ISO14001/TS16949/ROHS | Service | 24Hours Technical Services |
| PCB Standard | IPC-A-600 | Testing Service | 100% E-Testing |
| Highlight | Rogers High Frequency PCB Design,FR4 High Frequency PCB Design,FR4 Quick Turn PCB Prototype |
||
Product Description
FR4 BT Rogers High Frequency PCB Design Quick Turn Prototype Service
Quick Turn PCB Prototype Board High Frequency PCB Design Services
Introduction:
Printed Circuit Board Assembly it to plug the SMT(Surface Mounted Technolofy) and the DIP in the Printed Circuit Board, also called PCBA.
Company Advantage
1)We have very rich experience, you are welcome to discuss with us at any time your requirements or products that you need to customize.
2) 24 hours online service & Quickly Quote
3)In order to allow you to receive goods more quickly and conveniently, we support sea, land, express and air transportation.
4)ISO certificate Factory.
5)100% QC quality inspection before delivery, and can provide quality inspection form.
Specification:
|
High Frequency PCB
|
Special Tech
|
|
|
Place of Origin:
|
China
|
1. Impedance
2. Via Filling 3. PFH,Backdrill 4. Mix Finishes 5. Cave 6. heatsink 7. Countersink 8. Hybrid Stackup |
|
Brand Name:
|
CRT
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
|
|
Layer Count:
|
1~12L
|
|
|
Material:
|
High speed FR4, BT, Rogers...
|
|
|
Board Thickness(mm):
|
0.2mm~3.0mm
|
|
|
Copper Thickness(oz):
|
0.33oz~3oz
|
|
|
Size(mm):
|
5mm~1200mm
|
|
|
Min. LW/LS(mm):
|
0.05/0.05
|
|
|
Min. Hole(mm):
|
0.1
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, White...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
Certificate:
|
RoHS/ISO9001/ISO14001
|
|
|
Service:
|
OEM / DFM
|
|

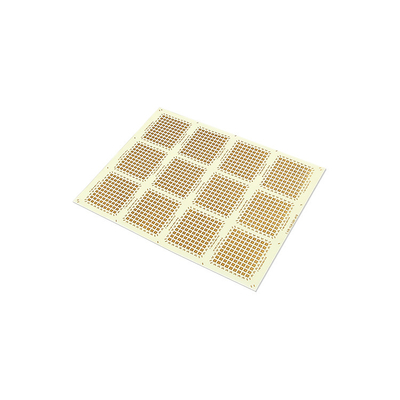

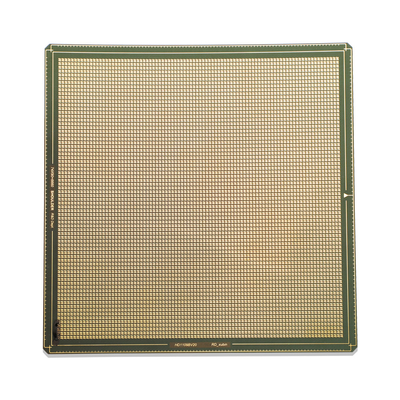

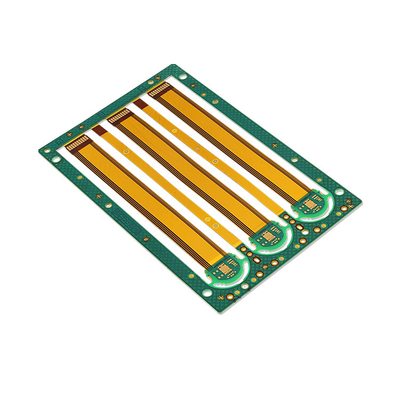

Product Image:
Production:
Both SMT and DIP are means of integrating components in the PCB board. The main difference is that SMT does not need to drill holes on the PCB,while it's nacessary for the DIP to plug the pin of the component into the drilled hole.
SMT:
Mainly use the paste to pack machine to attach some micro components the PCB board. The production process is as follows: the PCB board positioning, solder paste printing, paste and pack, return to the soldering stove, finally inspection.
FAQ
Q: What files do you use in PCB fabrication?
A: Gerber or Eagle, BOM listing, PNP and Components Position
Q:Is it possible you could offer sample?
A: Yes, we can custom you sample to test before mass production
Q: When will I get the quotation after sent Gerber, BOM and test procedure?
A: Within 6 hours for PCB quotation and around 24-48 hours for PCBA quotation.
Q: How can I know the process of my PCB production?
A: 5-7days for PCB production and components purchasing, and 14 days for PCB assembly and Testing.
Q: How can I make sure the quality of my PCB?
A: We ensure that each piece of PCB products work well before shipping. We'll test all of them according to your test procedure.
