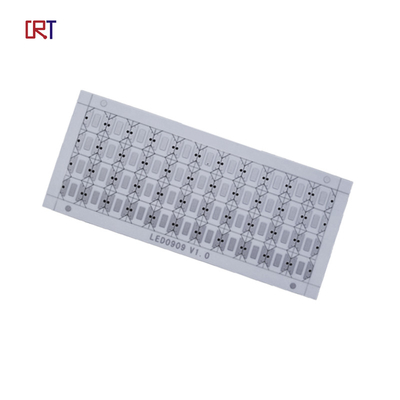

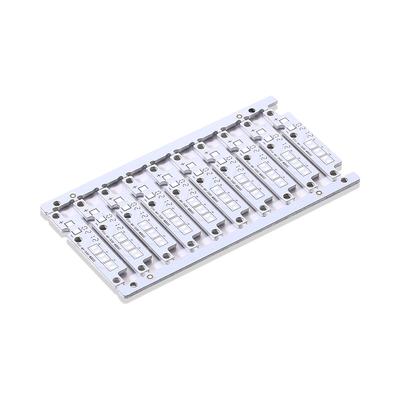

2 Layers Aluminum Substrate PCB Assembly Single And Double Side Prototype
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL |
| Model Number | CRT-Multilayer PCB_004 |
| Minimum Order Quantity | 20 Pieces |
| Price | USD 0.1~1.5/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 14 |
| Payment Terms | T/T |
| Supply Ability | 1000000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminum Circuit Board | Board Thickness | 0.5~10.0mm |
|---|---|---|---|
| Layer Count | 1-2layer | Matierial | FR4 ,CEM1,CEM3 |
| Copper Thickness： | Hoz~10oz | Size： | 5mm~2000mm |
| Color | Green, Yellow, Blue, Black, White... | Surface Treatment | ENIG,OSP,HASL,Imm Tin,Imm Silver... |
| Highlight | 0.5mm aluminum substrate PCB,2 Layers aluminum substrate PCB,White aluminium substrate PCB |
||
Product Description
Single And Double Side Prototype Aluminum Substrate Pcb Assembly 2 Layers
Top 4 ways to reduce PCB manufacturing cost
1) Reduce PCB size as much as possible
2) In addition to complex circuits, we can try to reduce unnecessary layers and bad layer specifications
3) choose the right PCB board material
4) correct PCB thickness, solder color, surface treatment process, etc.
Specification:
| Single side Aluminum PCB | Special Tech. | |
| Place of Origin: | China | 1.Impedance 2.Via Filling 3.PFH,Backdrill 4.Mix Finishes 5.Cave 6.heatsink 7.ENEPIG |
| Brand Name: | CRT | |
| Application Segment: | Auto,Industrial,Medical,DataCom,Comsumer | |
| Layer Count: | 3~50L | |
| Matierial: | FR4 (Tg130~Tg170) | |
| Board Thickness(mm): | 0.6mm~10.0mm | |
| Copper Thickness(oz): | Hoz~3oz | |
| Size(mm): | 5mm~1200mm | |
| Min. LW/LS(mm)； | 0.1/0.1 | |
| Min. Hole(mm): | 0.25 | |
| Solder Mask: | Green, Yellow, Blue, Black, White... | |
| Surface Finish; | ENIG,OSP,HASL,Imm Tin,Imm Silver... | |
| Certificate: | RoHS/ISO9001/ISO14001 | |
| Service: | OEM / DFM | |
FAQ
Q1:Are you a factory or trade company?
A: Abis is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBA Board for over 10 years.
Q2: How can I get a quotation?
A: Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber
Q3: Can you manufacture my PCBs from a picture file?
A: Yes, we can copy for you accordingly. Could you please provide a sample via express?
Q4: Could you support customized service?
A: Yes, we could customize according to your requirement
Q5: What is your certificate?
A: UL, ISO9001, ISO14001
Q6: Will my PCB files be checked?
A: Checked within 4 hours. Once Engineer's question and working file be approved, production will start.
