DFM One Stop Thick Film Pcb High Precision Repair Of Carbon Oil Plate
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL |
| Model Number | CRT-Thick Film PCB-005 |
| Minimum Order Quantity | 10 Pieces |
| Price | USD 0.1~1.5/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 7 |
| Payment Terms | T/T |
| Supply Ability | 1000000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layer Count | 1~2 Laye | Matierial | FR4,Ceramic, SUS, Glass,CEM1,Metal Base |
|---|---|---|---|
| Board Thickness | 0.2mm~3.0mm | Copper Thickness | 0.3oz~1 Oz |
| Solder Mask | Green, Yellow, Blue, Black... | Surface Finish： | ENIG,OSP,Imm Tin |
| Service | One-stop PCB & PCB Service / OEM,DFM | Application Segment： | Auto,Industrial,Medical,Comsumer |
| Highlight | one stop thick film pcb,dfm thick film pcb,dfm thick film circuit board |
||
Product Description
Thickfilm PCB Application
Various types of thick film printed circuit boards:
●Throttle valve control (TPS)
●Clutch switch (Rotary position sensor)
●Wiper motor speed adjustment
●Accelerator pedal PCB
●Dashboard temperature control, lighting adjustment...etc
Our service items
- High-Speed PCB Design / PCB Layout
- High-Speed PCB SI / PI / EMC Analysis
- Fast 1-24L PCB Prototype,samll-medium volume Fabrication
- Professional HDI PCB,FPC,Thickfilm PCB Production
- Rigid-Flex Board Manufacture
- SMT Assembly / PCBA Assembly
- PCB Parts Sourcing
Advantages
- No MOQ
- OEM services provided
- Heavy copper PCB, Heavy gold PCB, Blind / Buried via PCB, High layer count PCB manufacturable
- Factory direct price
- Replying with price in one working day
- Shipping within 24 hours
- Certificate: ROHS, UL, ISO9001-2000, ISO14001,SGS Lead-Free
Specification:
| Thickfilm PCB | Special Tech. | |
| Place of Origin: | China | 1.Silver Circuit 2.Silver TH 3.High Risitor 4.Could be in a round surface |
| Brand Name: | CRT | |
| Application Segment: | Auto,Industrial,Medical,DataCom,Comsumer | |
| Layer Count: | 1-4L | |
| Matierial: | FR4,CEM1,Metal Base,Ceramic, SUS, Glass | |
| Board Thickness(mm): | 0.2mm~3.0mm | |
| Copper Thickness(oz): | 0.33oz~2oz | |
| Size(mm): | 2mm~500mm | |
| Min. LW/LS(mm): | 0.2/0.2 | |
| Min. Hole(mm): | 0.2 | |
| Solder Mask: | Green, Black, White... | |
| Surface Finish: | ENIG,OSP,Imm Tin,Imm Silver... | |
| Certificate: | RoHS/ISO9001/ISO14001 | |
| Service: | OEM / DFM | |

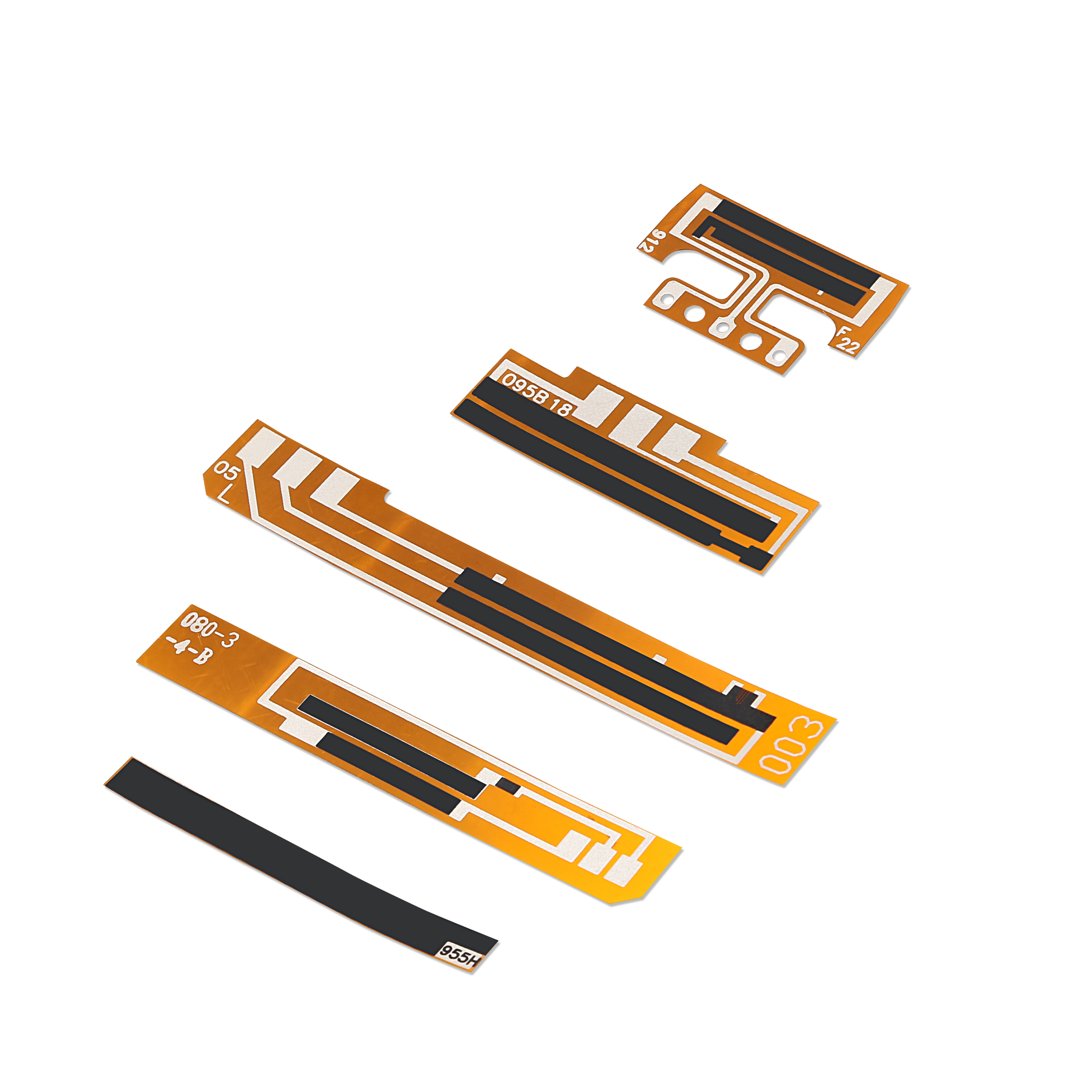

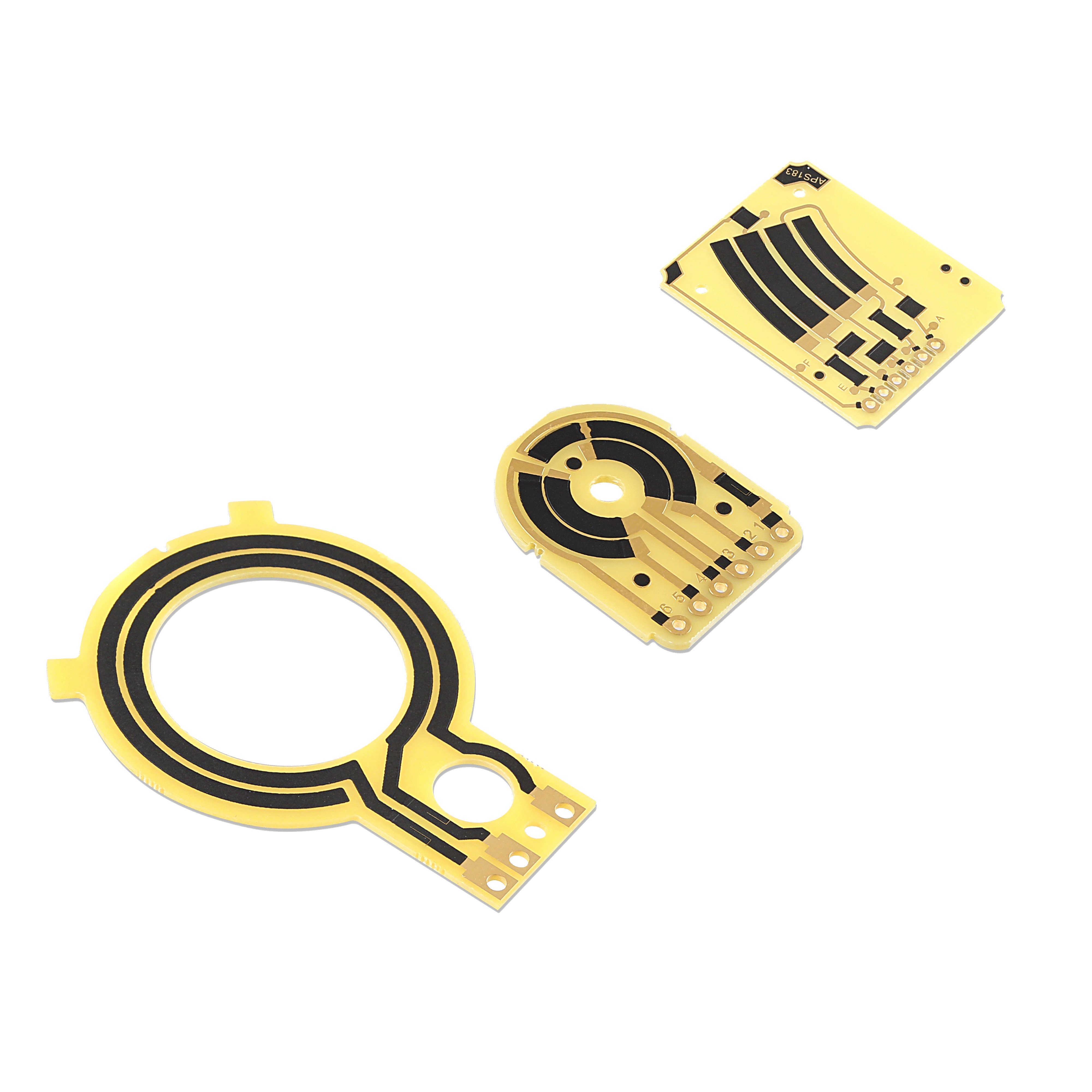

Product Image:
FAQ
Q1: What's the Payment way?
A:TT ,Western Union, Alibaba online payment
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q3: Can I customized for product?
A: Yes, we support OEM ODM
Q4: What is your warranty ?
A : Within 60 days after package have been received .
Q5: What is Chuante lead time?
A:Sample:
1-2 Layers: 5 to 7working days
4-8 Layers: 12 working days
Mass production:
1-2 Layers:7 to 15 working days
4-8 Layers:10 to 18 working days
The leadtime is depends on your final confirmed quantity.
