4oz Double Side Mcpcb Board Assembly For Led Lighting
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | CRT |
| Certification | UL/ISO14001/TS16949 |
| Model Number | CRT1054 |
| Minimum Order Quantity | 1 Pieces |
| Price | 0.25$-0.3$/pc |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 18 working days |
| Payment Terms | T/T |
| Supply Ability | 500000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Double Side PCB | Copper Thickness | 1-4OZ |
|---|---|---|---|
| Base Material | 0.2 - 4mm | Min. Hole Size | 0.15mm |
| Min. Line Width | 0.1mm | Min. Line Spacing | 0.1mm |
| Surface Finishing | OSP,Immersion Gold,Immersion Tin,Immersion Ag | Board Size | 35mm*35mm*16mm |
| Solder Mask Color | Green. Red. Blue. White. Black.Yellow | Minimum Solder Resist Bridge | 3mil |
| Highlight | 4oz mcpcb board,double side mcpcb board,led lighting mcpcb |
||
Product Description
PRODUCT DESCRIPTION
A Metal Core Printed Circuit Board (MCPCB), also known as a thermal PCB or metal backed PCB, is a type of PCB that has a metal material as its base for the heat spreader portion of the board. The thick metal (almost always aluminum or copper) is covering 1 side of the PCB.
Specification:
|
Double side PCB
|
Special Tech
|
|
|
Place of Origin:
|
China
|
1.Silver Circuit
2.Silver TH 3.High Risitor
4.Could be in a round surface
|
|
Brand Name:
|
CRT
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
|
|
Layer Count:
|
1~24 layers
|
|
|
Material:
|
FR4 (Tg130~Tg170)
|
|
|
Board Thickness(mm):
|
0.2mm~3.0mm
|
|
|
Copper Thickness(oz):
|
0.33oz~2oz
|
|
|
Size(mm):
|
2mm~500mm
|
|
|
Min. LW/LS(mm):
|
0.2/0.2
|
|
|
Min. Hole(mm):
|
0.2
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, White...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
E-test
|
X-ray, AOI, Function test | |
|
Service:
|
OEM / DFM
|
|

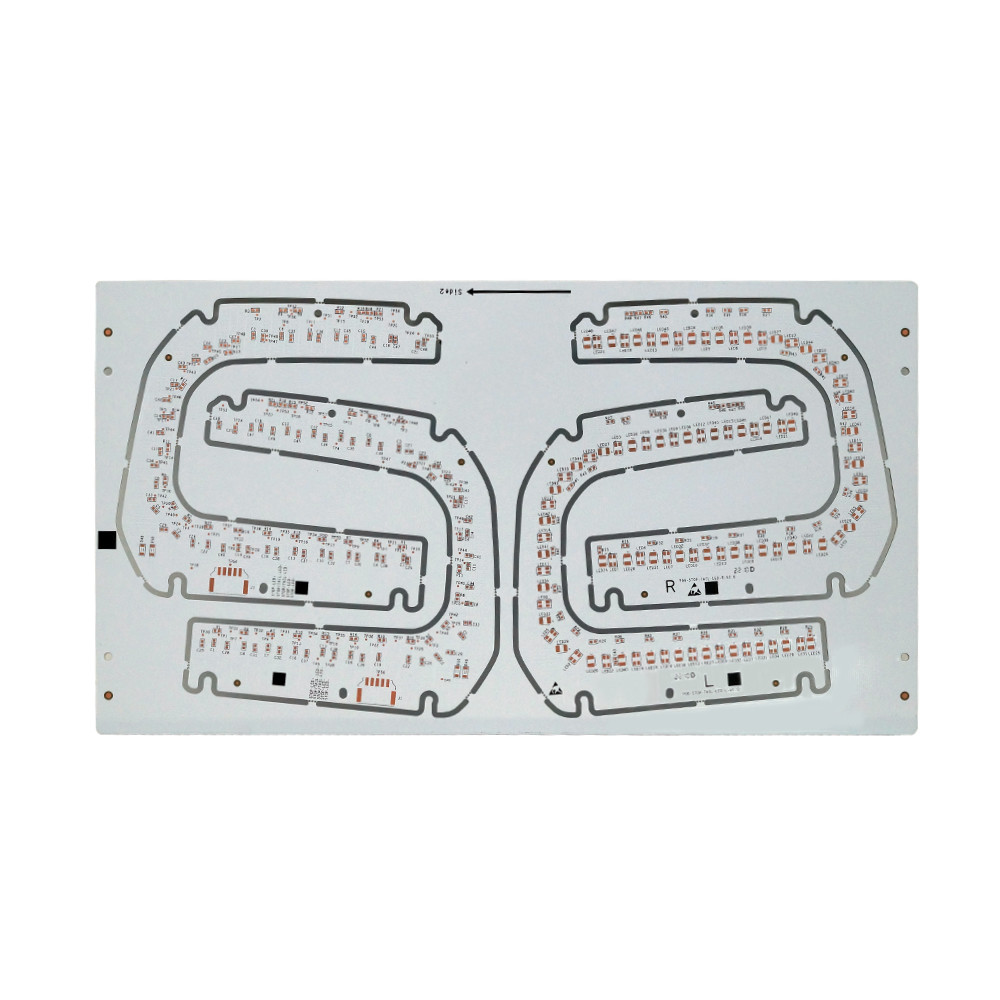

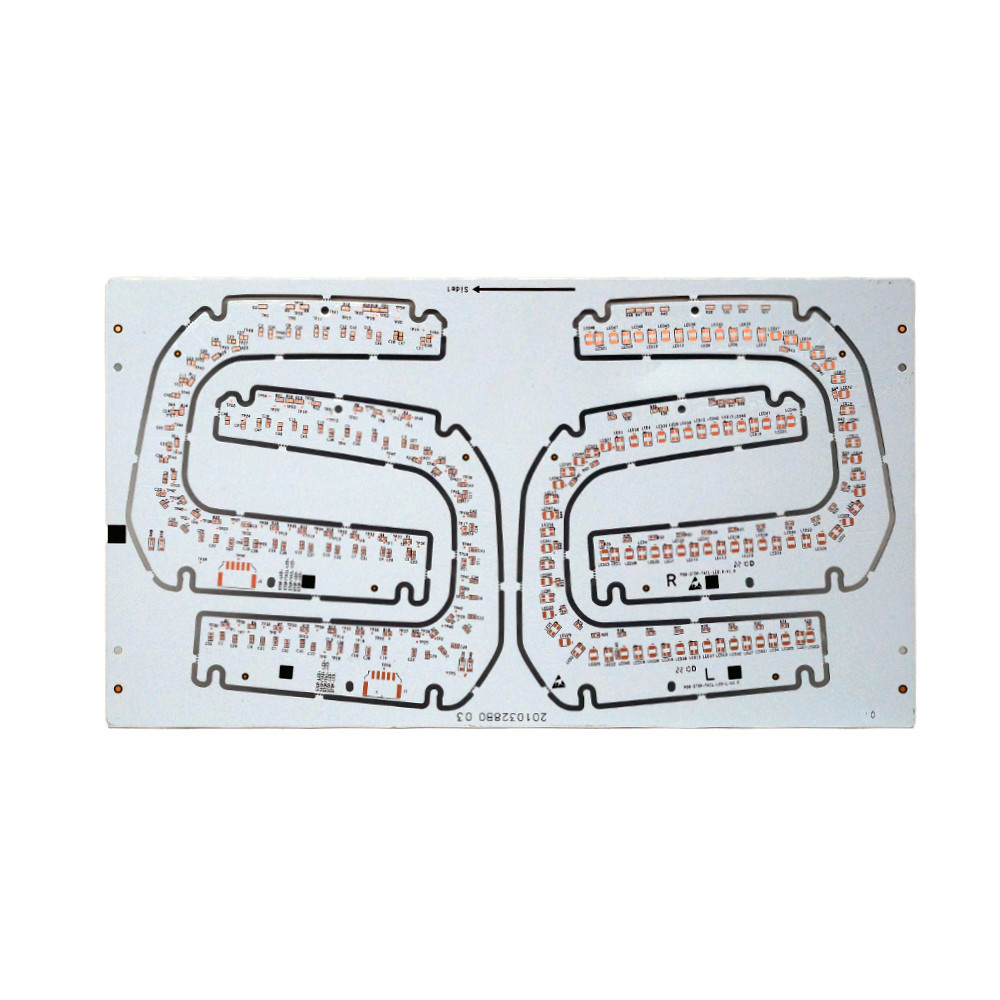

Product Image:
What can CRT do?
CRT is an OEM manufacturer that focus on PCB & PCBA manufacturing for over 10 years. CRT turns into a first-class manufacturer of PCB / PCBA. From multi-layered to flexible printed circuit boards, POE is your one-stop OEM service. We provide our customers with PCB Manufacturing, PCB Assembly, and Parts Sourcing services to save your time & cost.
FAQ:
Q1: What do we need for PCB or PCBA quotation?
A: PCB: Gerber files/PCB files, Quantity, Board processing details( board material, thickness, copper thickness, surface treatment, color of solder mask and silkscreen)
PCBA: Above PCB info, BOM with components specs, testing doc if you have
Q2: Are my files safe??
A: Yes. All of our client’s design files are classified and safe. And we’ll not share with a third party. If NDA is needed, we’ll sign.
Q3: If the product fails after receive, what should I do?
A: We will be responsible for all of the product we send out. If you have sent us test docs, we’ll gurantee 0% defective rate, which means if you receive defective ones, we will be responsible for it. If you don’t have test docs, we’ll gurantee 0.3% defective rate.
Q4: If I only have samples, can I produce it?
A:Yes. We can copy it and produce based on your samples.
