Oem Custom Turnkey Thick Film Pcb Electronic Board Circuit Design 4OZ
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | CRT |
| Certification | UL/ISO14001/TS16949 |
| Model Number | CRT1005 |
| Minimum Order Quantity | 1 Pieces |
| Price | 0.2$-0.3$/pc |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 18 working days |
| Payment Terms | T/T |
| Supply Ability | 500000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Thick Film PCB | Minimum Linewidth | 0.075mm |
|---|---|---|---|
| Copper Thickness | 1OZ~4OZ | Minimum Linespacing | 0.075mm |
| Minimum Hole Diameter | 0.15mm | Minimum Solder Resist Bridge | 0.1mm |
| Finished Thickness | 0.3-3.5mm | Maximum Board Size | 630*1100mm |
| Maximum Layer | 14 | Surface Treatment | OSP ,Immersion Gold, Immersion Tin |
| Highlight | custom turnkey thick film pcb,4oz thick film pcb,4oz thick film circuit board |
||
Product Description
PRODUCT DESCRIPTION
THICK FILM CERAMIC PCB ALSO CALLS THICK FILM RESISTOR CERAMIC PCB IS A TECHNOLOGY TO INCORPORATE RELIABLE CARBON RESISTORS PRINTING ON THE CERAMIC SUBSTRATE USING STANDARD PCB PROCESSING. IT CAN BE PRINTED ON A WIDE RANGE OF SUBSTRATES — FROM HIGH-TEMPERATURE CERAMICS TO COMMON FR4 PCB MATERIALS, OR POLYIMIDE (PI) FLEX PCB MATERIALS. THE PRINTED RESISTOR MATERIALS ARE BASED ON A NOVEL HYDROPHOBIC POLYIMIDE RESIN DEVELOPED SPECIFICALLY TO SERVE AS POLYMERIC THICK FILM RESISTORS OR THIN FILM RESISTOR MATERIAL.
Specification:
|
Thick PCB
|
Special Tech
|
|
|
Place of Origin:
|
China
|
1.Silver Circuit
2.Silver TH 3.High Risitor
4.Could be in a round surface
|
|
Brand Name:
|
CRT
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
|
|
Layer Count:
|
1~24 layers
|
|
|
Material:
|
FR4 (Tg130~Tg170)
|
|
|
Board Thickness(mm):
|
0.2mm~3.0mm
|
|
|
Copper Thickness(oz):
|
0.33oz~2oz
|
|
|
Size(mm):
|
2mm~500mm
|
|
|
Min. LW/LS(mm):
|
0.2/0.2
|
|
|
Min. Hole(mm):
|
0.2
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, Purple...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
E-test
|
X-ray, AOI, Function test | |
|
Service:
|
OEM / DFM
|
|

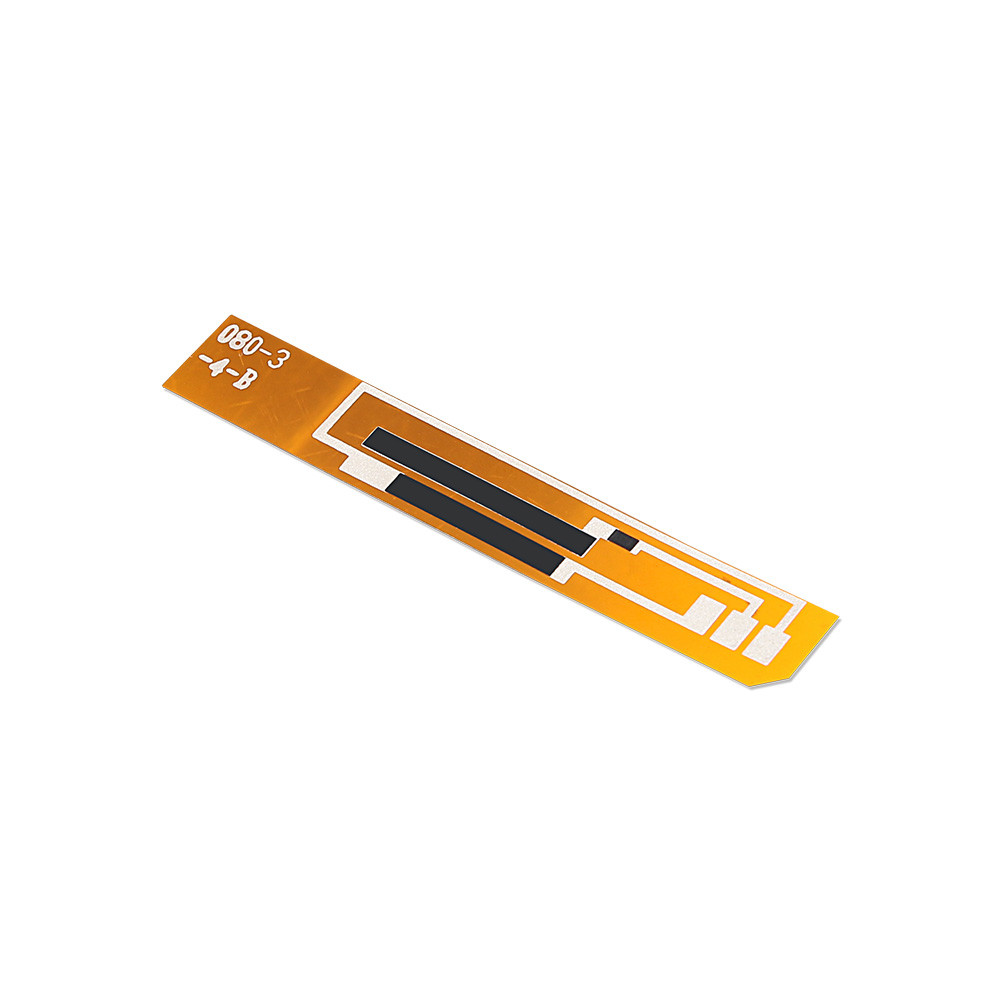

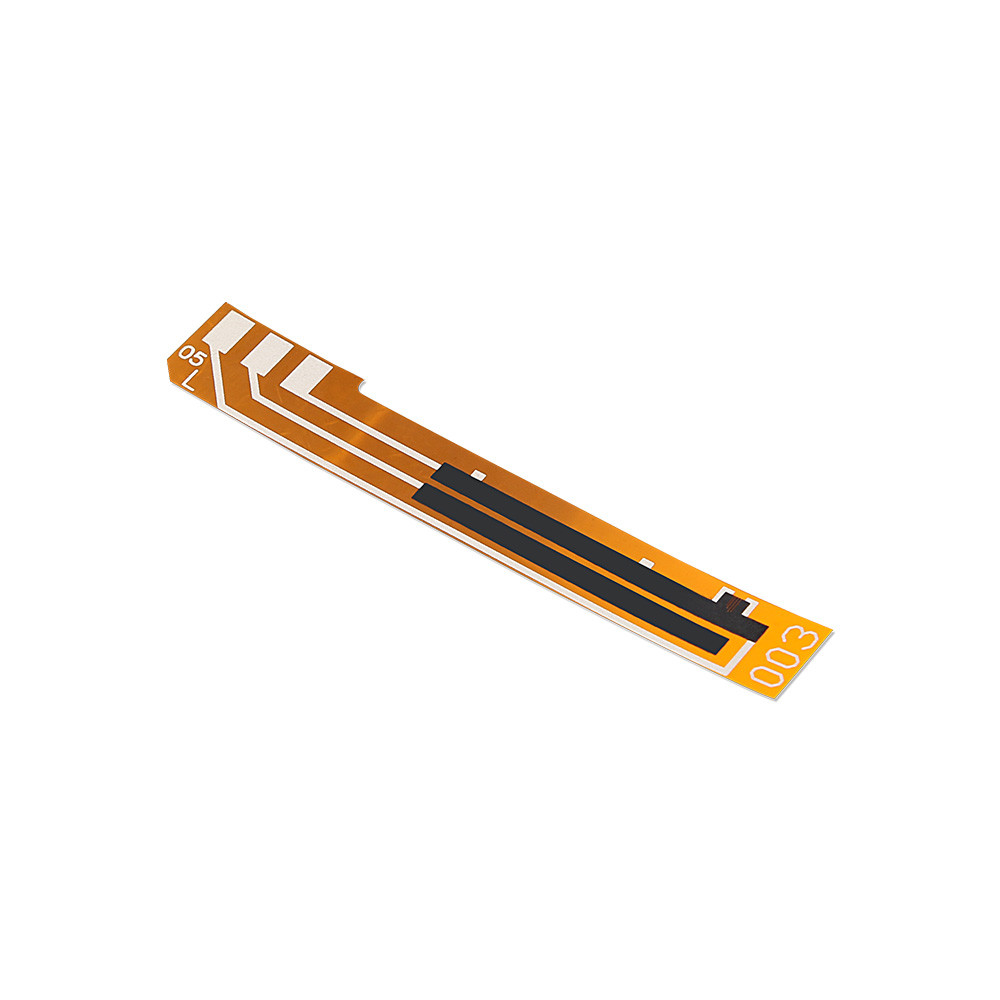

Product Image:
Company Introduction
Croll technology has the capability to manufacture PCB ranging from basic single-sided boards up to forty layers and provide one-stop turnkey services, including PCB manufacture, assembly, components sourcing, and function testing. With a one-stop solution, high-end product structure, professional product development, and manufacturing technology, stable quality performance, and well management system,
Croll technology has established long-term and stable cooperative relations with the world's leading communication equipment, aerospace electronics, and medical equipment manufacturers.
FAQ:
Q1: How to test PCB and PCBA boards?
A: SPI, AOI, X-RAY, FQC for PCBA (PCB assembly).
AOI, Fly probe testing, Text fixture testing, FQC etc for bare pcb.
Q2: Can you do PCB or circuit design?
A: Yes, we have a design team including software, hardware and structure engineers.
We can supply customized design services. Give your idea, we make it true.
Q3: Which payment terms do CRT accept?
A: T/T, Paypal, Bank transfer.
Q4: What kind of PCB file format can you accept for production?
A:Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, GCCAM,ODB+(.TGZ)
