Professional Fast Custom ISO Fr4 Pcb Flexible Ceramic Glass Thick Film
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL |
| Model Number | CRT-Thick Film PCB-004 |
| Minimum Order Quantity | 10 Pieces |
| Price | USD 0.1~1.5/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 7 |
| Payment Terms | T/T |
| Supply Ability | 1000000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layer Count | 2 Laye | Matierial | FR4,Ceramic, SUS, Glass,CEM1,Metal Base |
|---|---|---|---|
| Board Thickness | 0.2mm~3.0mm | Copper Thickness | 0.3oz~1 Oz |
| Solder Mask | Green, Yellow, Blue, Black... | Surface Finish： | ENIG,OSP,Imm Tin |
| Special Tech | 1.Silver Circuit 2.Silver TH 3.High Risitor 4.Could Be In A Round Surface | Certificate： | RoHS/ISO9001/ISO14001/UL |
| Highlight | iso fr4 pcb,thick film fr4 pcb,fr 4 thick film circuit board |
||
Product Description
Product Description:
1.product name:Multilayer Printed Circuit Board
2.Type--Thick Film PCB
3. Matierial:FR4,Ceramic,,SUS,,Glass,CEM1,Metal Base
4.Surface Finish:ENIG,OSP,HASL,Imm Tin,Imm Silver...
5. Board Thickn:0.6mm~1.0mm
6. Certificate:RoHS/ISO9001/ISO14001/UL
7.Application Segment:Auto,Industrial,Medical,DataCom,Comsumer
Thickfilm PCB Application
Various types of thick film printed circuit boards:
●Throttle valve control (TPS)
●Clutch switch (Rotary position sensor)
●Wiper motor speed adjustment
●Accelerator pedal PCB
●Dashboard temperature control, lighting adjustment...etc
Our service items
- High-Speed PCB Design / PCB Layout
- High-Speed PCB SI / PI / EMC Analysis
- Fast 1-24L PCB Prototype,samll-medium volume Fabrication
- Professional HDI PCB,FPC,Thickfilm PCB Production
- Rigid-Flex Board Manufacture
- SMT Assembly / PCBA Assembly
- PCB Parts Sourcing
Specification:
| Thickfilm PCB | Special Tech. | |
| Place of Origin: | China | 1.Silver Circuit 2.Silver TH 3.High Risitor 4.Could be in a round surface |
| Brand Name: | CRT | |
| Application Segment: | Auto,Industrial,Medical,DataCom,Comsumer | |
| Layer Count: | 1-4L | |
| Matierial: | FR4,CEM1,Metal Base,Ceramic, SUS, Glass | |
| Board Thickness(mm): | 0.2mm~3.0mm | |
| Copper Thickness(oz): | 0.33oz~2oz | |
| Size(mm): | 2mm~500mm | |
| Min. LW/LS(mm): | 0.2/0.2 | |
| Min. Hole(mm): | 0.2 | |
| Solder Mask: | Green, Black, White... | |
| Surface Finish: | ENIG,OSP,Imm Tin,Imm Silver... | |
| Certificate: | RoHS/ISO9001/ISO14001 | |
| Service: | OEM / DFM | |

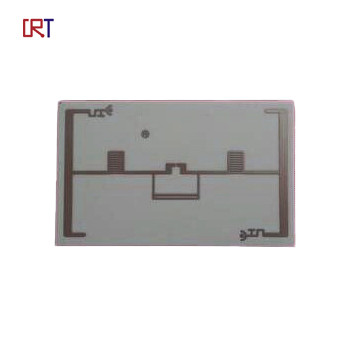

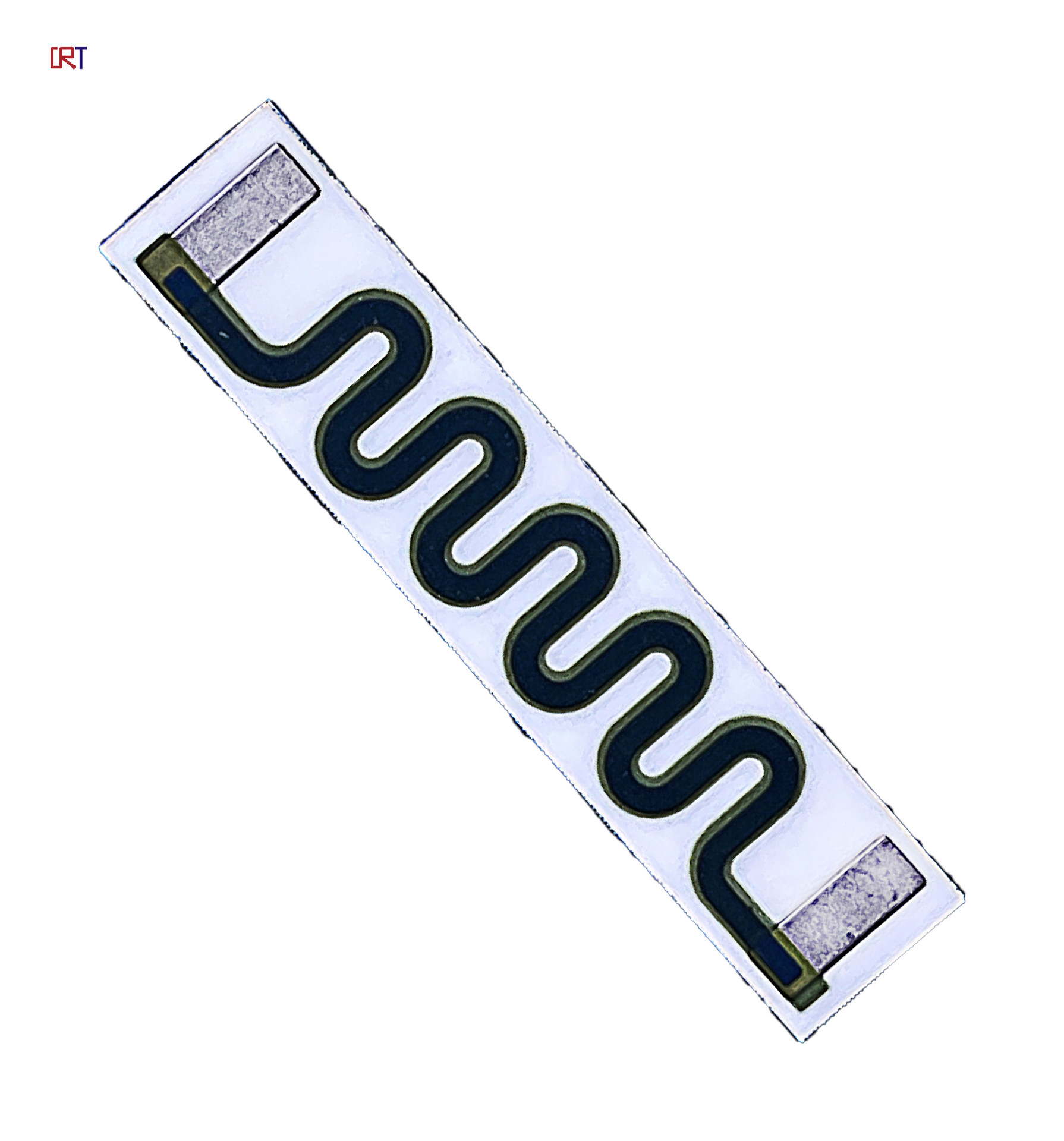

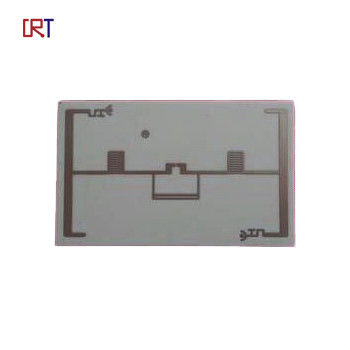

Product Image:
Why choose CRT
1.Quick Response
Offer reply within 30 minutes, 2-hour engineering response, 24-hour technical support, save customer waiting time, shorten product development and production cycle from all aspects, save product launch time, and quickly occupy the market for your products.
2.Leading technology
Over ten years of development, we grow year on year to add technology and capacity. PCB technology from the standard PCB to RF circuit, microwave circuit board, Multilayer PCB, Rigid-flexible PCB, HDI PCB, IC substrate, IC test board, PCBA assembly.
3.Sincere Cooperation
The support and trust of our partners are the driving force for our progress. We are looking for a win-win business with our customers. There is no small or big customer in our company culture. Always doing our best to provide excellent service is our goal.
4.Stable Material
Wide selection of PCB material suppliers, such as Isola, Panasonic, TUC, ITEQ, Shengyi, KB, Rogers, Arlon, Taconic, Doosan, Mitsubishi Gas, DuPont, etc.
Stock materials: FR408, 370HR, TU872, RO4350B, RO4003C, RT5880, RO3010, RO3003, RF35, TLY-5, Megtron4, Megtron6, S1000-2, IT180, F4BM PCB prototype material.
5.Fast Delivery
Support FR-4 PCB, Multilayer circuit board, HDI PCB, Ceramic PCB, PTFE printed circuit board, Hybrid circuit, Teflon PCB, RF PCB, Rogers PCB. Advanced PCB ERP tracking management system leads the industry in delivery time, PCB On-time delivery rate above 97%.
6.Quality Control
Strict quality control system guaranteed us one of the most experienced printed circuit board manufacturers in China with over ten years.IPC Class III standard can be selected based on customer requirements.
