OSP Thick Film Pcb Accelerator Pedal Ignition Module Voltage Regulator
| Place of Origin | China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/IATF16949/ISO14001/UL |
| Model Number | CRT-Thick Film PCB-004 |
| Minimum Order Quantity | 10 Pieces |
| Price | USD 0.1~1.5/Piece |
| Packaging Details | Vacuum package+Carton |
| Delivery Time | 7 |
| Payment Terms | T/T |
| Supply Ability | 1000000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layer Count | 2 Laye | Matierial | FR4,Ceramic, SUS, Glass,CEM1,Metal Base |
|---|---|---|---|
| Board Thickness | 0.2mm~2.0mm | Copper Thickness | 0.3oz~1 Oz |
| Solder Mask | Green, Yellow, Blue, Black... | Surface Finish： | ENIG,OSP,Imm Tin |
| Highlight | accelerator pedal thick film pcb,osp thick film pcb,ignition module thick film circuit board |
||
Product Description
Product Description:
1.product name:Multilayer Printed Circuit Board
2.Type--Thick Film PCB
3. Matierial:FR4,Ceramic,,SUS,,Glass,CEM1,Metal Base
4.Surface Finish:ENIG,OSP,HASL,Imm Tin,Imm Silver...
5. Board Thickn:0.6mm~1.0mm
6. Certificate:RoHS/ISO9001/ISO14001/UL
7.Application Segment:Auto,Industrial,Medical,DataCom,Comsumer
Thickfilm PCB Application
Applications in automotive electronics:
- Ignition module: used to start the motor
- Voltage regulator module (Voltage regulator): for generators
- Idle Motor Module: Idle Motor Control
- Thick film resistor for fuel level: Both cars and locomotives
- Thick film current limiter: for fan motor current limiter (Blower resistor)
- Mass Air Flow Sensor
- Various types of thick film printed circuit boards:
●Throttle valve control (TPS)
●Clutch switch (Rotary position sensor)
●Wiper motor speed adjustment
●Accelerator pedal PCB
●Dashboard temperature control, lighting adjustment...etc
Specification:
| Ceramic PCB | Special Tech. | |
| Place of Origin: | China | 1.Silver Circuit 2.Silver TH 3.High Risitor 4.Could be in a round surface |
| Brand Name: | CRT | |
| Application Segment: | Auto,Industrial,Medical,DataCom,Comsumer | |
| Layer Count: | 1-4L | |
| Matierial: | Ceramic, SUS, Glass | |
| Board Thickness(mm): | 0.2mm~3.0mm | |
| Copper Thickness(oz): | 0.33oz~2oz | |
| Size(mm): | 2mm~200mm | |
| Min. LW/LS(mm): | 0.2/0.2 | |
| Min. Hole(mm): | 0.2 | |
| Solder Mask: | Green, Black, White... | |
| Surface Finish: | ENIG,OSP,Imm Tin,Imm Silver... | |
| Certificate: | RoHS/ISO9001/ISO14001 | |
| Service: | OEM / DFM | |

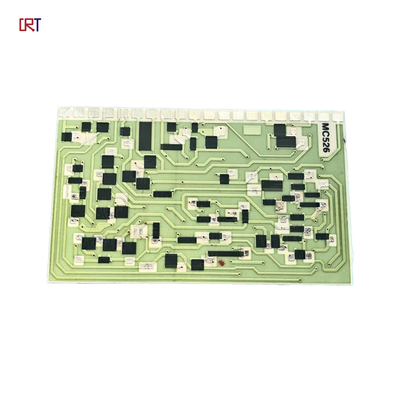

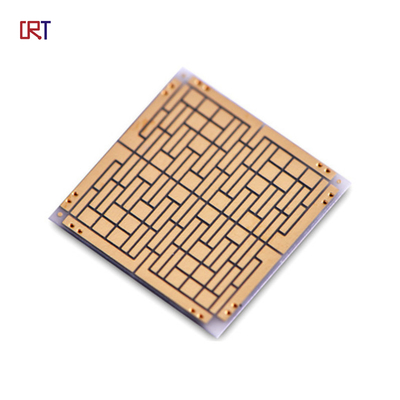

Product Image:
Quality & OTD Target
◎ Quality goal for rate of complaint
≤0.1% by batch,
≤200PPM by quantity;
≤50PPM by quantity (Auto);
◎ The rate of total internal scrap: PCB,FPC≤2.0%;
◎ The rate of delivery on time:
≥95% for normal PCB,FPC,
100% for automotive PCB,FPC.
◎ Quick Turn delivery
Prototype : Fastest 48 hours to seven days
Mass Production: Fastest 3 to 14 days
Why choose CRT
1.Quick Response
Offer reply within 30 minutes, 2-hour engineering response, 24-hour technical support, save customer waiting time, shorten product development and production cycle from all aspects, save product launch time, and quickly occupy the market for your products.
2.Leading technology
Over ten years of development, we grow year on year to add technology and capacity. PCB technology from the standard PCB to RF circuit, microwave circuit board, Multilayer PCB, Rigid-flexible PCB, HDI PCB, IC substrate, IC test board, PCBA assembly.
3.Sincere Cooperation
The support and trust of our partners are the driving force for our progress. We are looking for a win-win business with our customers. There is no small or big customer in our company culture. Always doing our best to provide excellent service is our goal.
4.Stable Material
Wide selection of PCB material suppliers, such as Isola, Panasonic, TUC, ITEQ, Shengyi, KB, Rogers, Arlon, Taconic, Doosan, Mitsubishi Gas, DuPont, etc.
Stock materials: FR408, 370HR, TU872, RO4350B, RO4003C, RT5880, RO3010, RO3003, RF35, TLY-5, Megtron4, Megtron6, S1000-2, IT180, F4BM PCB prototype material.
5.Fast Delivery
Support FR-4 PCB, Multilayer circuit board, HDI PCB, Ceramic PCB, PTFE printed circuit board, Hybrid circuit, Teflon PCB, RF PCB, Rogers PCB. Advanced PCB ERP tracking management system leads the industry in delivery time, PCB On-time delivery rate above 97%.
6.Quality Control
Strict quality control system guaranteed us one of the most experienced printed circuit board manufacturers in China with over ten years.IPC Class III standard can be selected based on customer requirements.
