ISO9001 ISO14001 TS16949 ROHS Copper Base Board Customized LED PCB
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | CRT |
| Certification | ISO9001/ISO14001/TS16949 |
| Model Number | CRT-JS-0016 |
| Minimum Order Quantity | 1 Pieces |
| Price | USD 0.17~0.37/Piece |
| Packaging Details | Vacuum Packaging + Moisture + Humidity Card |
| Delivery Time | 18 |
| Payment Terms | T/T |
| Supply Ability | 500000sqm/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | LED Lights | Material | Aluminum, Copper |
|---|---|---|---|
| Layer Number | 1~12L | Solder Mask | Green, Yellow, Black, White... |
| Surface Treatment | ENIG,OSP,Imm Tin,Imm Silver... | Certificate | ISO9001/ISO14001/TS16949/ROHS |
| Highlight | ROHS Copper Base Board,TS16949 Copper Base Board,TS16949 Custom LED PCB |
||
Product Description
ISO9001 ISO14001 TS16949 ROHS Copper Base Board Customized LED PCB
Customized Led Pcb Copper Base Board Metal Core Gold Circuit Board Other Pcb Manufacture
What can we do for LED PCB Assembly?
* We can supply free design for led pcb board.
* Offering solution for Light, like if you told us what type you will use for? if you can supply a schematic picture for us about your design thinking, and then our engineer will put forward related suggestion for you .
* OEM service for LED PCB, we can assembly finished led ight, produce bare board pcb, and then purchasing components, after that, we can assembly it, if you would like us to supply assembly housing, both are welcome, also, we can supply led driver, which means control the led pcb, a whole complete service can get from Croll.
What information do we need to design led pcb?
* Acutal Power
* Input Voltage
* Input Voltage
* Board Dimensions
* Basic pcb's specification( which include board thickness, copper thickness, material, thermal conductivity, surface finished, solder mask & silkscreen)
* LED Chip details(Like led chips brand, CCT of leds, package of leds)
* Basic pcb's specification( which include board thickness, copper thickness, material, thermal conductivity, surface finished, solder mask & silkscreen)
* LED Chip details(Like led chips brand, CCT of leds, package of leds)
Specification:
|
Metal Core PCB
|
Special Tech
|
|
|
Place of Origin:
|
China
|
1.Countersink;
2.Carbon;
3.Peelable mask;
4.Step Routing;
5.Mixed finishes;
6.ENEPIG
|
|
Brand Name:
|
CRT
|
|
|
Application Segment:
|
Auto,Industrial,Medical,DataCom,Consumer
|
|
|
Layer Count:
|
1~2L
|
|
|
Material:
|
Aluminum, Copper
|
|
|
Board Thickness(mm):
|
0.6mm~3.0mm
|
|
|
Copper Thickness(oz):
|
Hoz~3oz
|
|
|
Size(mm):
|
5mm~1500mm
|
|
|
Min. LW/LS(mm):
|
0.1/0.1
|
|
|
Min. Hole(mm):
|
0.25
|
|
|
Solder Mask:
|
Green, Yellow, Blue, Black, White...
|
|
|
Surface Finish:
|
ENIG,OSP,HASL,Imm Tin,Imm Silver...
|
|
|
Certificate:
|
RoHS/ISO9001/ISO14001
|
|
|
Service:
|
OEM / DFM
|
|

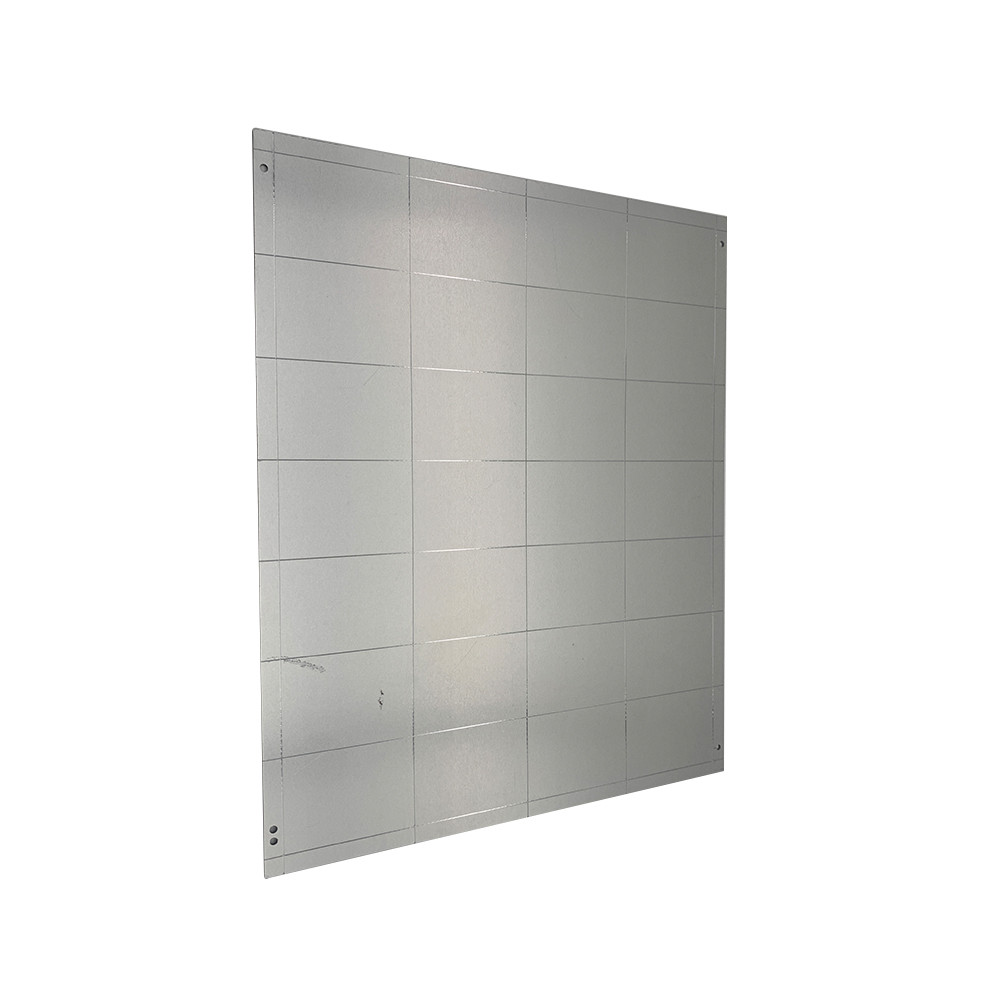

Product Image:
